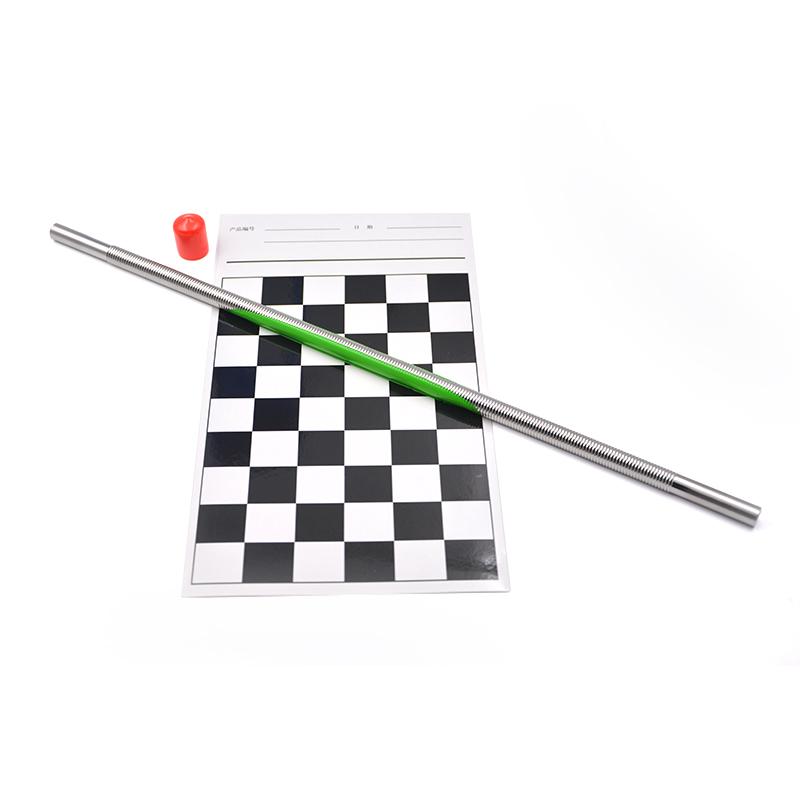

RDS 6 #1/4 "roller painting rod film thickness 13.7μm rod diameter 6.35mm
Using formed molding technology, the rod diameter is 6.35mm, the film can be 13.7μm, the application width is 300mm, and it has the characteristics of continuous wire and easy cleaning.
RDS
6# 1/4
6# 3/8"
6# 3/8"
Product description
RDS No. 6 wire rod coater is a coating rod with a wet film thickness of 13.7 microns. The length of the RDS wire rod coater is 40mm. According to different user needs, RDS has developed two types: wire winding type and forming type. For wire Bar Coaters, the wet film thickness prepared by the same type of coating bar is the same, but there will be differences in the amount of coating applied. The forming type wire rod coater currently only has a diameter of 6.35mm, while the wire-wound type has three diameters of 9.5mm, 6.35mm, and 12.7mm, and the diameter of 9.35mm is more widely used.
RDS 6# 1/4 Applicator rod 1/4Specifications
| LIST | VALUE |
|---|---|
| Production process | formed |
| WFT | 13.7μm |
| diameter | 6.35mm |
| Total length | 400mm |
| application width | 300mm |
| Grip Width | 50+50mm |
| material | stainless steel |
RDS 6# 1/4 Applicator rod 1/4 Packing list
Stainless Steel Rod X1 Transparent Encasement Hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
