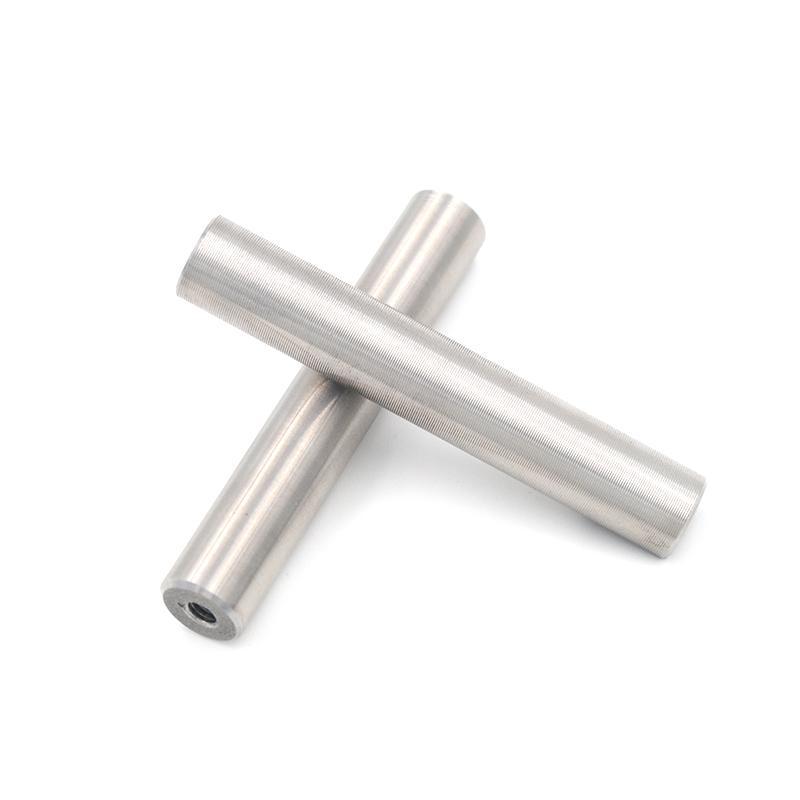

Japan OSP OSP-120T L60 Applicator rod wire-wound drawdown Bar WFT 120μm length 60mm
The film thickness is 120μm, the length is 60mm, and the bottom is a K-shaped cogging, which is suitable for customers with higher glue viscosity, such as silk, non-woven fabrics, etc.
OSP
OSP-120T L60
OSP-300T L60
OSP-250T L60
OSP-330T L60
OSP-230T L60
OSP-80T L60
-
RDS 155G #3/8 "laboratory wire-wound drawdown Bar Film thickness 354.3μm
$ 173.00 -
RDS 39 #3/8 "Mayer Rods film thickness 89.2μm winding paint and scratching paint, precise control
$ 162.00 -
Japan OSP-60/60 Coating bar WFT 60μm length 60mm
$ 116.00 -
Coating Applicator rod 12μm Paint Drawdown Rod, Manual Wire Applicator Kun
$ 96.00 -
![Japan OSP-02/500 Grooved Rods WFT 2μm length 500mm [Customized]](//img.nbchao.com/imgs/200/2018/12/21/1057210394789041.jpg)
Japan OSP-02/500 Grooved Rods WFT 2μm length 500mm [Customized]
$ 225.00
![Japan OSP-02/500 Grooved Rods WFT 2μm length 500mm [Customized]](http://img.nbchao.com/imgs/200/2018/12/21/1057210394789041.jpg)

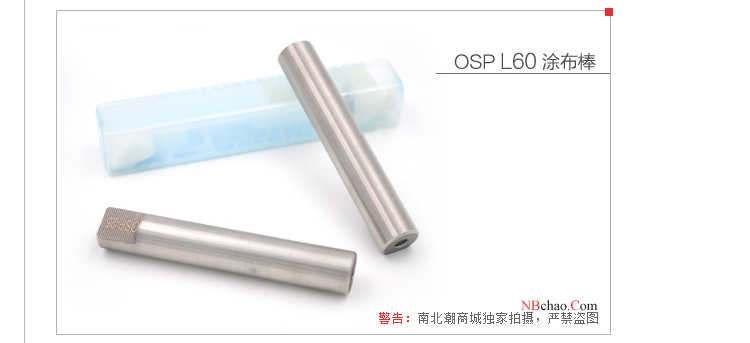

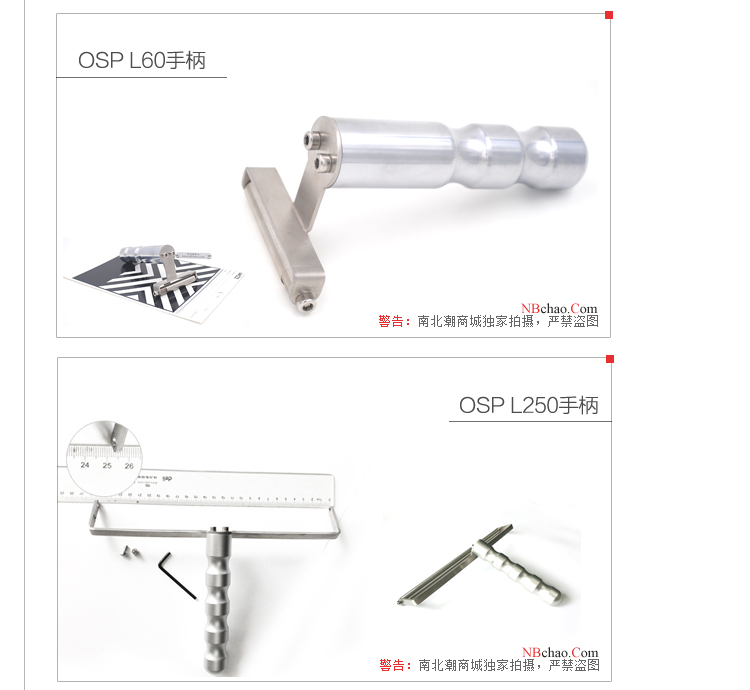

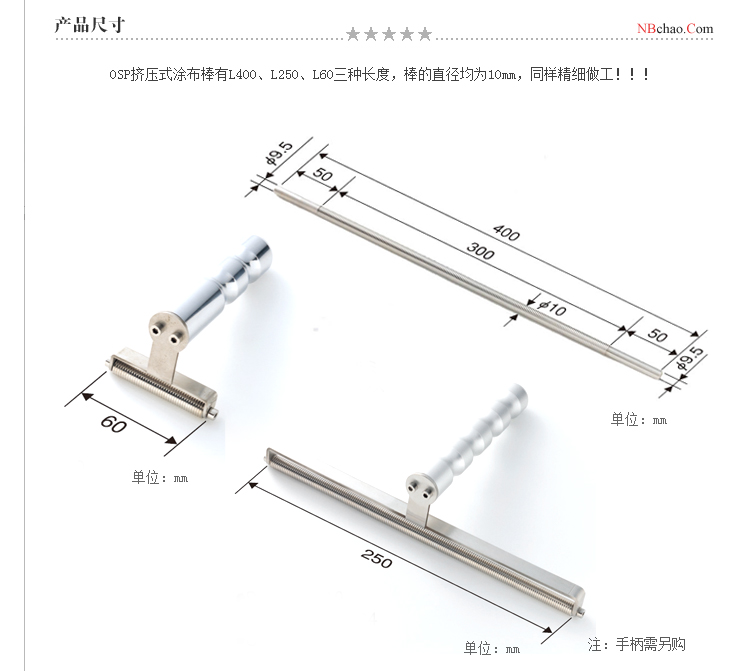

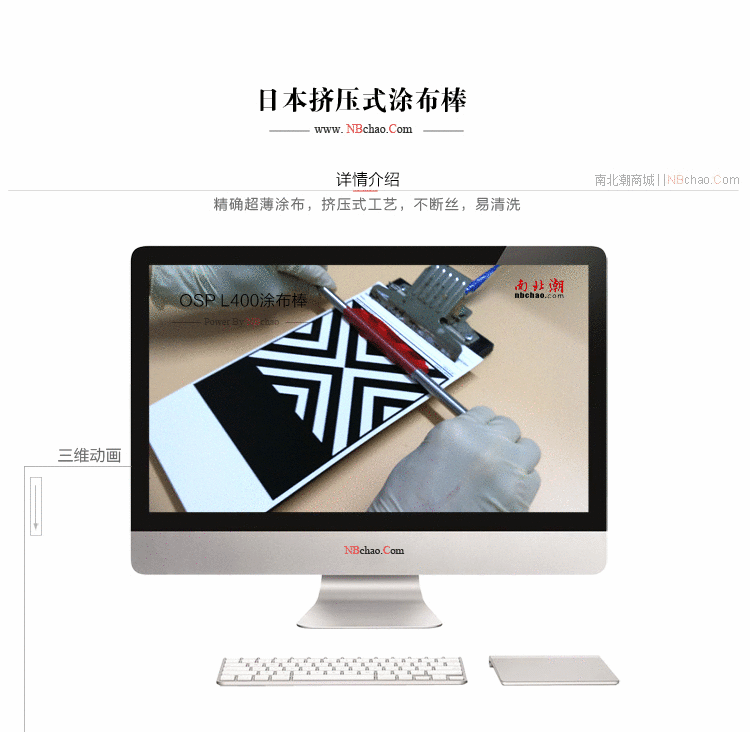

Japan OSP coating rod has three lengths of 400mm, 250mm and 60mm, and the coating width is 300mm, 250mm and 60mm respectively, of which 250mm and 60mm need to be used with handles for easy coating.

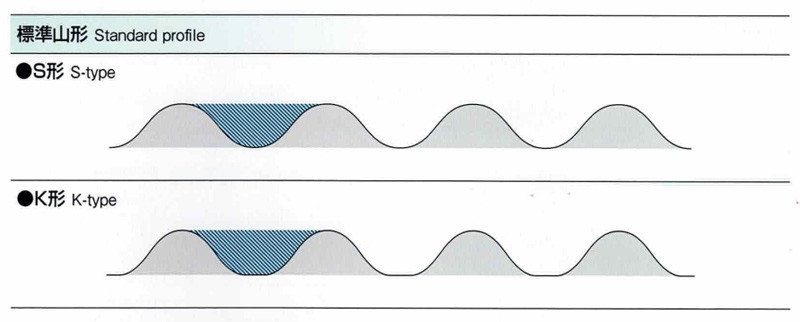

Compared with the S shape, the K shape has a large tooth spacing, which is suitable for high-viscosity coatings, has good leveling, and the bottom of the tooth groove is wider, which is more suitable for customers with a larger glue viscosity, such as silk, non-woven fabrics, etc.
Optional
 |
|
 |  |
OSP OSP-120T L60 Coating rodSpecifications
| LIST | VALUE |
|---|---|
| Production process | Formed |
| WFT | 120μm |
| diameter | 10mm |
| Total length | 60mm |
| Application width | 60mm |
| material | 304 stainless steel |
OSP OSP-120T L60 Coating rod Packing list
Stainless Steel Main Rod X1, Transparent External Encasement Hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
