Japan OSP OSP-200T L60 Applicator rod wire-wound drawdown Bar WFT 200μm length 60mm

The film thickness is 200μm, the length is 60mm, and the bottom is a K-shaped cogging, which is suitable for customers with higher glue viscosity, such as silk, non-woven fabrics, etc.

Brand

SKU: NB045938

OSP

Model

Price

$ 115.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

OSP shopSE

Information

Datasheet RFQ Contract

What else did others buy

Genuinegoods

OSP OSP-200T L60 Coating rodOverview
Specifications
Comments
FAQs

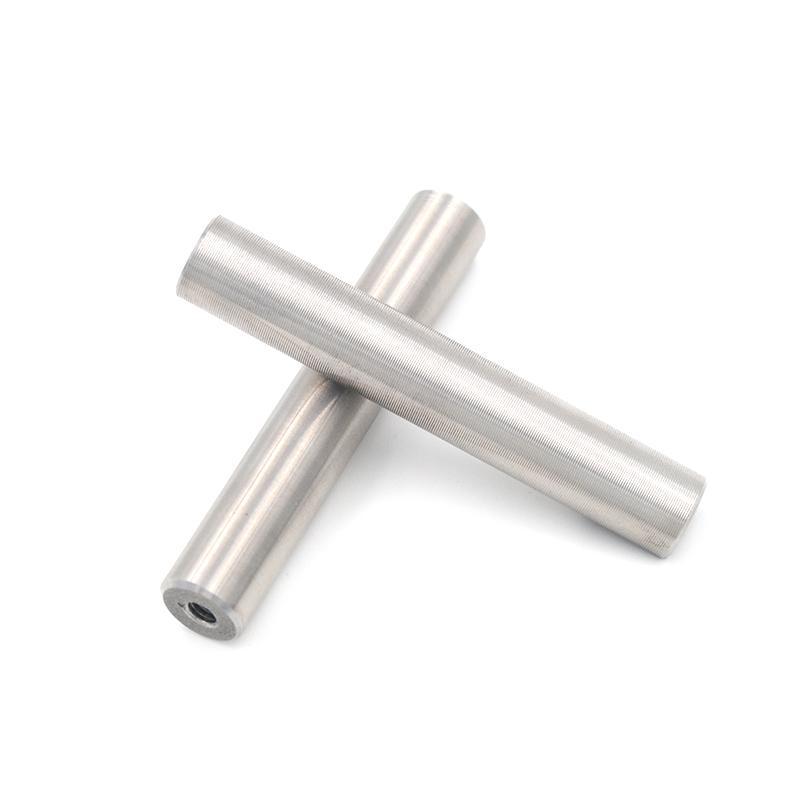

OSP-200T L60

Coating rod

The film thickness is 200μm, the length is 60mm, and the bottom is a K-shaped cogging, which is suitable for customers with higher glue viscosity, such as silk, non-woven fabrics, etc.

Japan OSP coating rod has three lengths of 400mm, 250mm and 60mm, and the coating width is 300mm, 250mm and 60mm respectively, of which 250mm and 60mm need to be used with handles for easy coating.

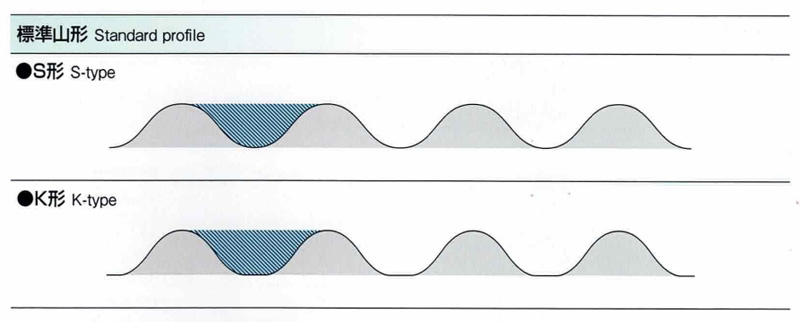

Compared with the S shape, the K shape has a large tooth spacing, which is suitable for high-viscosity coatings, has good leveling, and the bottom of the tooth groove is wider, which is more suitable for customers with a larger glue viscosity, such as silk, non-woven fabrics, etc.

K-shaped wire rods

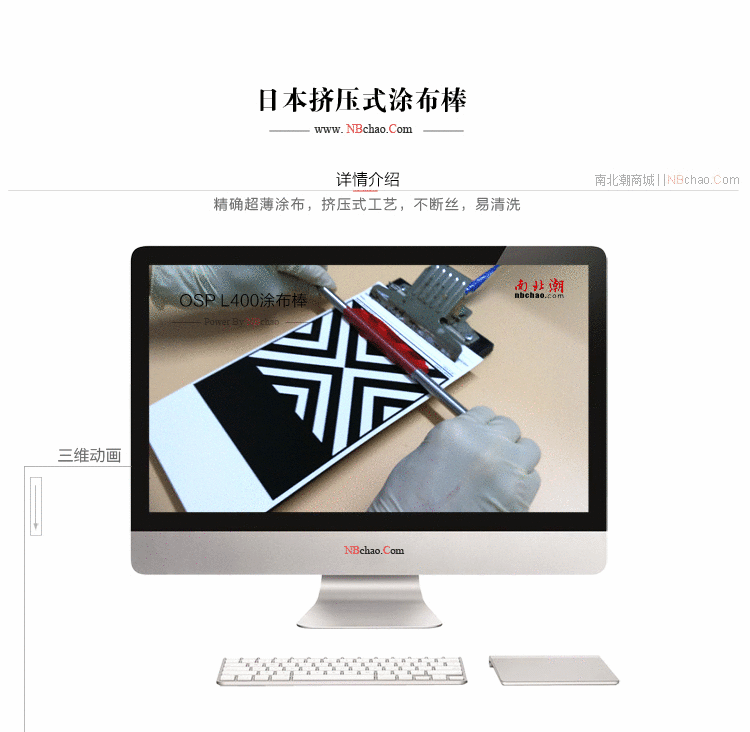

Introduction to Japan OSPOSP-64/400 paint scraper

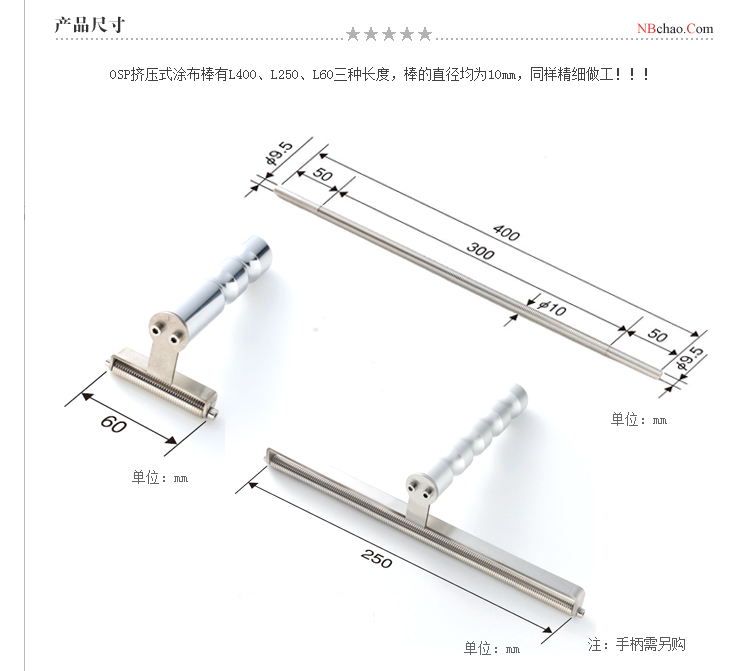

Japan OSPOSP-64/400 Paint Scraper Size

Japan OSPOSP-64/400 paint scraper advantage points

Japan OSPOSP-64/400 paint scraper groove shape

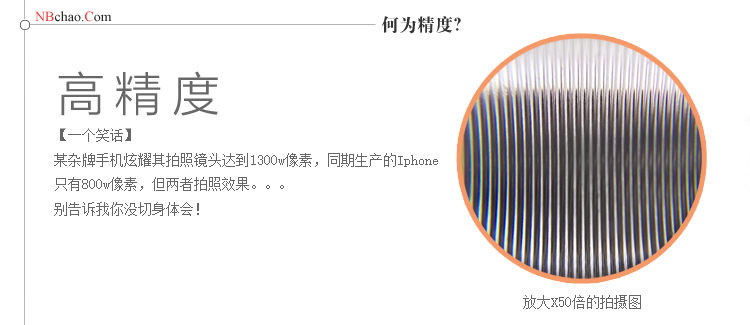

Japan OSPOSP-64/400 paint scraper has high precision

Application field of OSP wire rod coater

Why choose Nanbeichao Mall to buy Japan OSPOSP-64/400 paint scraper

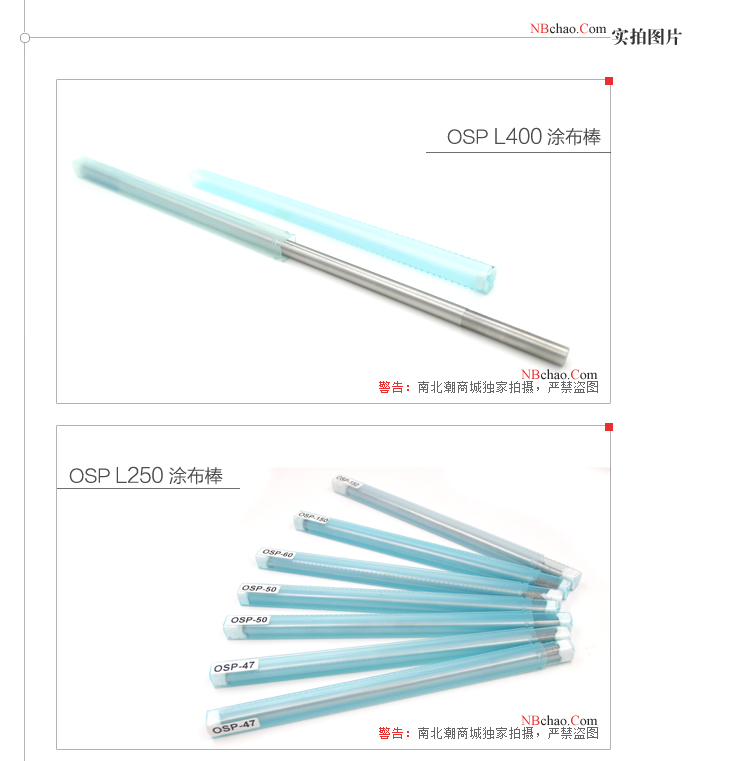

Japan OSPOSP-64/400 paint scraper display Figure 1

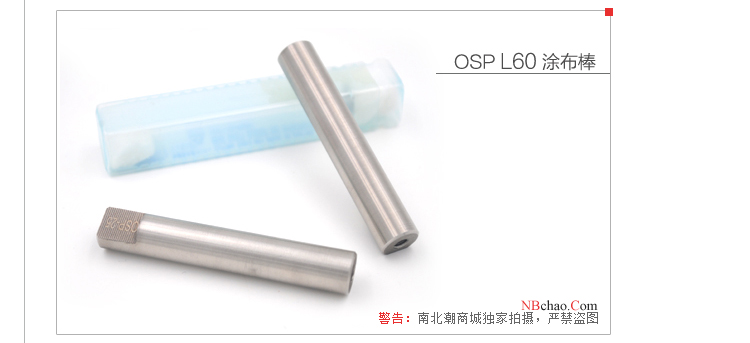

Japan OSPOSP-64/400 paint scraper display Figure 2

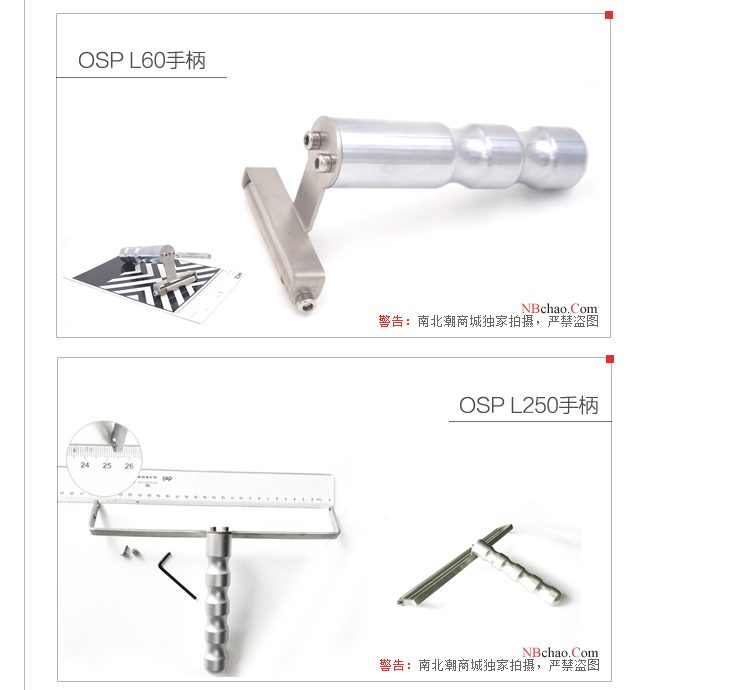

Japan OSPOSP-64/400 paint scraper display Figure 3

Optional

OSP OSP-200T L60 Coating rodSpecifications

LIST	VALUE
Production process	Formed
WFT	200μm
diameter	10mm
Total length	60mm
Application width	60mm
material	304 stainless steel

OSP OSP-200T L60 Coating rod Packing list

Stainless Steel Main Rod X1, Transparent External Encasement Hose X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
