Leeb leeb242（F1） Coating Thickness Gauge

LEEB242 (F1) paints Thickness Gauge with external magnetic probe

Leeb242 (F1) paints Thickness Gauge is a LEEB242 paints Thickness Gauge equipped with F1 magnetic probe model, using the principle of magnetic Induction thickness measurement, leeb242 (F1) thickness measurement range of 0~1250μm, with thermal printer.

Brand

SKU: NB004605

Leeb

Model

Price

Please contact customer service

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

Leeb shopSE

Information

Datasheet RFQ Contract Catalog

What else did others buy

Genuinegoods

Leeb leeb242（F1） Coating Thickness GaugeOverview
Specifications
Comments
FAQs

leeb242（F1）

Coating Thickness Gauge

Introduction to Leeb242(F1) Paint Thickness Gauge

Leeb242(F1) Paint Thickness Gauge is Leeb242 Paint Thickness Gauge equipped with F1 magnetic probe model, which adopts the principle of magnetic induction thickness measurement. Leeb242(F1) has a thickness measurement range of 0~1250μm and is equipped with a thermal printer. Leeb242(F1) Paint Thickness Gauge is suitable for measuring the thickness of non-magnetic coatings on magnetic metal substrates (such as aluminum, chromium, copper, zinc, tin, rubber, paint, etc. on steel alloys and hard magnetic steels).

Application

Leeb242(F1) paint Thickness Gauge is suitable for aerospace, aviation,electroplating, anti-corrosion, chemical industry, automobile, shipbuilding, light industry, commodity inspection and other fields.

Features and advantages

1. Automatic calibration of zero point, system error can be corrected;

2. Voltage prompt, automatic shutdown;

3. Two-point calibration can improve the accuracy.

4. Large-screen LCD backlight display, adjustable contrast;

5.Leeb242(F1) paint Thickness GaugeThe upper and lower limits can be set to over-tolerance alarm.

Pictures

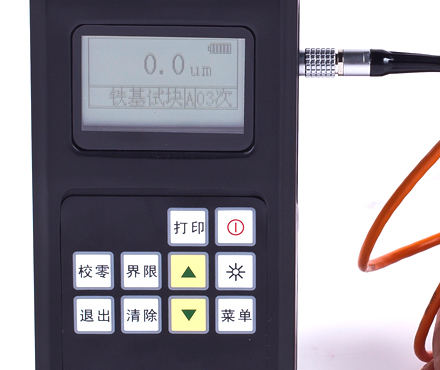

Libo leeb242 (F1) paint Thickness Gauge measuring iron matrix display

Libo leeb242 (F1) paint Thickness Gauge measuring non-ferrous substrate display

Leeb leeb242（F1） Coating Thickness GaugeSpecifications

LIST	VALUE
Measurement principle	magnetic induction
Measuring range	0 ~ 1250µm
margin of error	±3%
resolution	0.1µm
Minimum measurement surface	F7mm
Minimum radius of curvature	Convex 1.5mm; Concave 9mm
thinnest matrix	0.5mm
probe	F1 Split Probe
icon function	without
Power	6V/600mA rechargeable NiMH battery
Calibrated Certificate	without
Language	Chinese
Display screen	LCD
supporting software	without
Total Weight	400g
Complete-built unit size	2128032mm
Operating Temperature	0~40℃
optional	Miscellaneous Probes, Printing Paper
Relative Humidity	20~90%RH

Leeb leeb242（F1） Coating Thickness Gauge Packing list

Host x1, probe x1, standard test piece x1, base x1, power adapter x1, printing paper x1, certificate x1, manual x1, outer Encasement box x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
