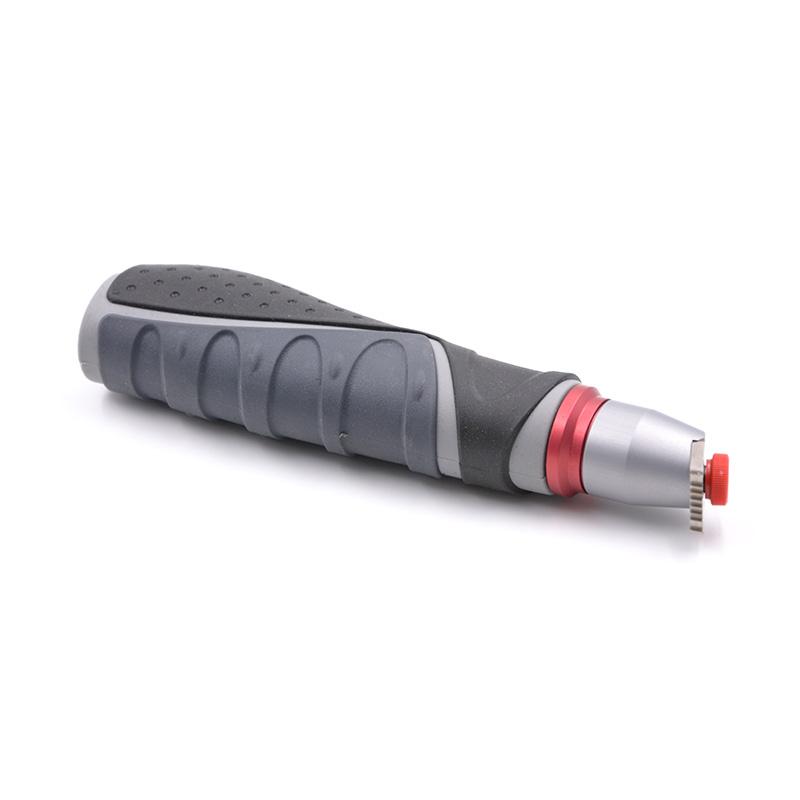

TQC SP1661 cross-cut Tester Adhesion Tester 6 teeth 2mm pitch

TQCSP1661 cross-cut cross-cut Tester 6 teeth 2mm pitch, to meet ISO2409 and ASDTM D3359, suitable for both soft and strong substrates.

Brand

SKU: NB004606

TQC sheen

Model

SP1661

Get Quote

TQC sheen shop

Information

Datasheet Video Catalog Manual

What else did others buy

TQC SP1703 cross-cut cutter head 6 teeth, spacing 2mm for CC2000/CC3000 series

$ 346.00
TQC SP1704 cross-cut cutter head 6 teeth, spacing 3mm for CC2000/CC3000 series

$ 346.00
TQC SP1705 cross-cut cutter head 11 teeth, spacing 1mm Suitable for CC2000/CC3000 series

$ 363.00
TQC SP1706 cross-cut cutter head 11 teeth, spacing 1.5mm for CC2000/CC3000 series

$ 361.00
TQC SP3010 adhesion tape tack good not degumming mass performance stable

$ 155.00

Genuinegoods

TQC sheen SP1661 Cross-cut TesterOverview
Specifications
Comments
FAQs

SP1661

Cross-cut Tester

Introduction

TQC hundred-grid knife (also known as cross-hatch adhesion Tester), available in five models: SP1660, SP1661, SP1662, SP1663, and SP1664, is a method for measuring the adhesion of dry coatings on the surface by making a series of coating incisions. kind of tool. Draw two series of parallel lines, perpendicular to each other, to obtain 25 or 100 squares of similar shapes and sizes. In the scratched area, use a hard-bristle brush to scrub or put tape on it and then tear it off. Observe the treated coating condition and make a judgment based on the standards.

This TQC hundred-grid knife only has one hundred-grid knife. The outer packaging box is a white transparent plastic shell, not a set.

Three series of Dutch TQC cross-hatchers

Frequently asked questions about cross-hatch testing

Design advantages of TQCSP1661 cross-cutting knife head

TQCSP1661 cross-cut knife head material advantages

Structural design advantages of TQCSP1661 cross-hatch knife

Advantages of cross-cutting effect of TQCSP1661 hundred-hatch knife

Why choose NBCHAO Mall to buy TQCSP1661 cross-cutting knife?

Features

â¢Automatically adjusts the blade holder to ensure consistent pressure exerted by the cutter on the coating

â¢Ergonomic handle

â¢The cutter is easy to replace, no additional tools required

â¢The cutter size range is wide, widely applicable to different coating thicknesses and substrates, and can be selected according to different standards.

Schematic diagram of the correct use of TQC hundred-grid knife

Standards compliant

ISO/DIN 2409, ASTM D3359

Application

Coatings, automobiles, coatings, laboratories, inks, ships, steel protection, wood and other industries.

Application fields of TQC CC2000 series hundred-grid knife

Safety Precautions

The blade is sharp, please pay attention to safety when using it;

Please use the box to store the knife.

Product details

Why is the TQC hundred-grid knife accurate?

TQC hundred grid knife material experience

Advantages of TQC hundred-grid knife head

Functional advantages of TQC hundred-grid knife

TQC hundred grid knife cost performance

Optional for Baige Knife

SP3007 1 roll of tape with adhesive force 4.3N/cm

SP3010 3 rolls of tape with adhesive strength 4.3N/cm

SP3020 1 roll of tape with adhesive strength 7.6 N/cm

SP1710 Nylon brush for crosshatch adhesion testing

SP9700 2.5x illuminated magnifying glass

TQC cutter head that meets DIN-ISO standards (applicable to CC2000, CC3000)

SP1702 tooth spacing 1 mm

SP1703 tooth spacing 2 mm

SP1704 tooth spacing 3 mm

TQC cutter head that complies with ASTM standards (applicable to CC2000, CC3000)

SP1705 tooth spacing 1 mm

SP1706 tooth spacing 1.5 mm

Use of 100-square knife

ISO 2409:

1mm intervals, suitable for solid substrates with coating thickness less than 60 microns

2mm intervals, suitable for soft substrates with coating thickness less than 60 microns

2mm intervals, suitable for all substrates with coating thickness between 61 and 120 microns

3mm intervals, suitable for all substrates with coating thickness between 121-250 microns

ASTM D3359:

1mm intervals, suitable for coating thickness less than 50 microns

1.5mm intervals, suitable for coating thickness between 50-125 microns

Cross-hatch method experimental evaluation

grade	describe	Surface peeling in the cross-cutting area (taking 6 teeth as an example)
0	The cutting edges are completely smooth and no lines fall off.
1	There is a small amount of coating peeling off at the intersection of the cuts, but the cross-cut area should not be significantly affected by more than 5%.
2	There is coating peeling off at the intersection of the incisions and/or along the edges of the incisions, and the affected cross-cutting area is significantly greater than 5%, but not significantly greater than 15%.
3	The coating is partially or completely peeled off in large fragments along the cutting edge and partially or completely peeled off at different parts of the grid. The affected cross-cut area is significantly greater than 15%, but not significantly greater than 35%.
4	Large fragments of the coating peel off along the cutting edge and some squares are partially or completely peeled off. The affected cross-cutting area is significantly greater than 35%, but not significantly greater than 65%.
5	The degree of peeling exceeds grade 4.

Take you into the Dutch TQC

The historical development of TQC company

TQC automated production and strict quality control

TQC R&D team

TQC sheen SP1661 Cross-cut TesterSpecifications

LIST	VALUE
Number of teeth	6 teeth
Tooth spacing	2mm
Instrument material	Vacuum hardened stainless steel, aluminum, rubber
Application standard	ISO 2409、ASTM D3359
Applicable film thickness environment	0~60μm (solid substrate), 0~50μm (solid substrate)
Appearance size	3217342mm
Instrument Weight	238g

TQC sheen SP1661 Cross-cut Tester Packing list

Cross Hatch Cutter (including steel knife, handle) x1, manual x1, outer Encasement box x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Do any of the hundred grid knives meet the specifications of ISO2409?

[A]

Model SP1661 100 Grid Knife Compliant

[Q]

Does the SP1661 hundred grid knife come with magnifying glass and tape?

[A]

Hello, this SP1161 hundred grid knife has only one hundred grid knife. If you need a set of magnifying glass and tape, you need to buy SP1691 hundred grid knife, which is a set.

[Q]

How to judge the film adhesion of wood products (furniture)?

[A]

Hello, the SP1661 Baige knife is a 6-tooth 2mm spaced scratching instrument that meets the ISO/DIN2409 standard. If you mean the film adhesion grade, you can refer to the NBchao knowledge base for the relevant knowledge on how to evaluate the adhesion. If you are inquiring about the quality requirements of your products, we cannot give your standard answer. In fact, the finishing mass of furniture According to the author's experience, the finishing mass of medium, high and low-end furniture varies, but most of them focus on more than 80% without peeling.
