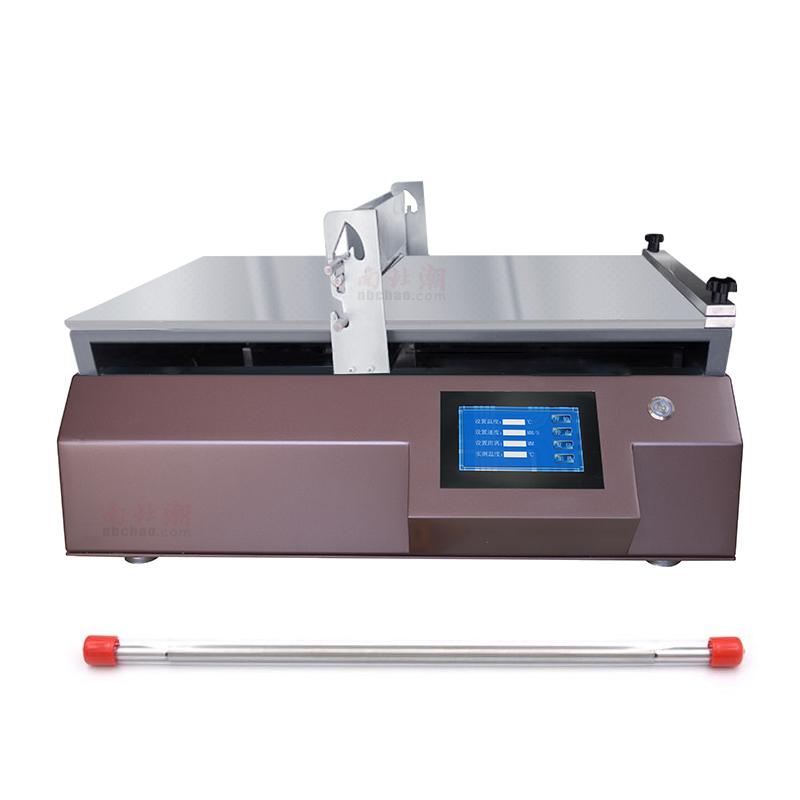

CHINA TBJ-X4-ZB1 Vacuum adsorption Heating Automatic Film Applicator
Wire rod + vacuum adsorption + heating three-in-one, standard high-precision imported wire rod; aluminum alloy baseplate, heated up to 180 ℃, can be used for film heating drying Spreader, such as hot-melt adhesive, lithium battery, ** reagent, etc.; motor no vibration mute, touch screen operation.
zy
TBJ-X4-ZB1
-
HuiNuo TM3300Pro/23G drawdown Bar & Blade heating vacuum adsorption coater (cabinet type) four-in-one function, servo motor, effective area 120 * 50cm
Login -
Huino intelligent TM 2300/01 drawdown blade heating vacuum adsorption Film Applicator custom model
Login -
Huinuo TM3300pro/33 wire rod scraper heating vacuum adsorption coating machine, coating machine 50 * 50cm
$ 7533.00 -
China TBJ-B1-DJ4 Removable Drawdown blade Lab Film Applicator Drawdown blade easy to clean
$ 2247.00 -
CHINA TBJ-B2-DJ12 metering rod & drawdown blade Floor type Film Applicator Coating size 600 * 1000mm
$ 9398.00
Overview
TBJ-X small coating testing machine for inspection all use imported accessories, and the price is cheap, has been favored by many multinational enterprise R&D institutions, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the coating and gluing effect, and ensure the uniformity and stability of the coating and gluing.
Since the main factors affecting the coating film are the coating speed and the pressure applied to the coater, the coating applied by hand is often inconsistent, especially between different people, which makes it difficult to compare the test results between the samples. Our automatic Film Applicator is designed to allow the operator to easily apply a precise wet film on different substrates, which greatly improves the reproducibility of the coating film.
Optional
|
|
|
zy TBJ-X4-ZB1 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Coating speed | 5~ 180Mm/s (< 5mm/s can be customized) |
| Coating size | 300*400mm |
| Spreader speed | Digital display, different speeds |
| Vacuum Area | 300 * 400Mm (can be customized) |
| Vacuum aperture | Φ1.2mm |
| Vacuum hole spacing | 20*20mm |
| Coating rod specification | 1 China wire rod + 1 imported wire rod with Accuracy up to 1μm, the effective application width is 300mm (Spreader thickness is determined according to the wire rod model) |
| Host Power Supply | 220V 50Hz |
| Dimensions | 630*410*520mm |
| Weight | 65kg |
| speed control | Infinitely variable speed |
| Coating table material | aluminum alloy |
| Temperature range | RT+~200℃ |
| Temperature Uniformity | ±3℃ |
| Power | 1500W |
| Vacuum pump size | 380*180*280mm |
| Optional Accessories | Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |
| Customizable function | Jet system device, UV solid-containing device, automatic inking system |
zy TBJ-X4-ZB1 Automatic Film Applicator Packing list
Film Applicator X1, External Vacuum Pump X1, Imported Wire Bar X1, China Wire Bar X1, Product Manual X1, Opacity Chart x1 Box
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
