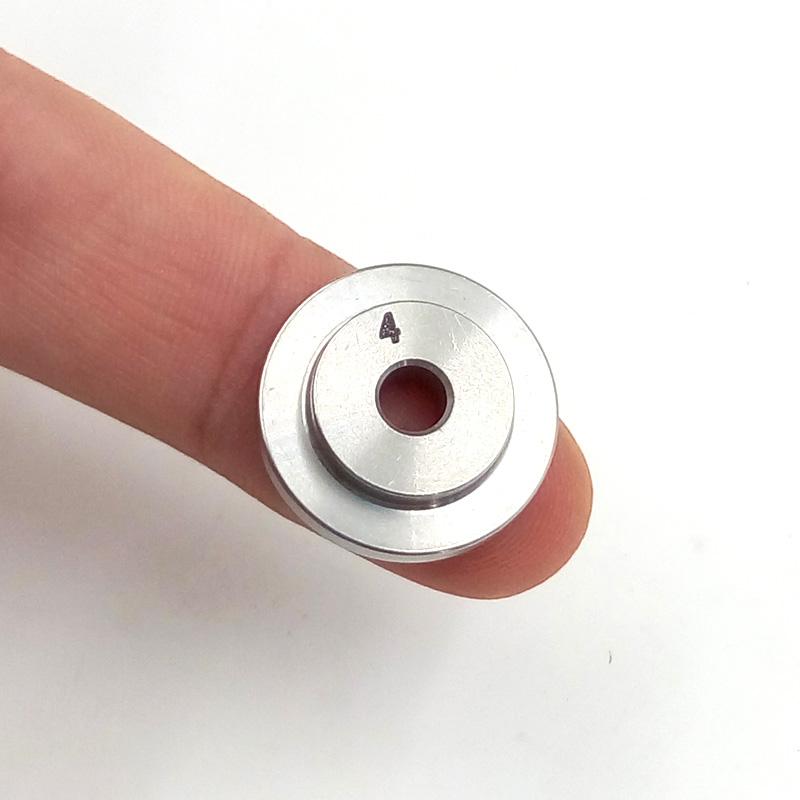

TQC VF2024 Viscosity Cup filter, stainless steel 4mm
The Dutch TQC VF2024 Viscosity Cup filter has a diameter of 4mm and is made of stainless steel. The VF2024 Viscosity Cup filter meets the DIN 53211 standard.
TQC sheen
VF2024
-
Ander LND-2 (6 #) No. 6 ISO cup with bracket Viscosity range 320~685cst
$ 189.00 -
TQC VF2050 desktop Viscosity Cup ISO Flow Cup No. 6 with VF2061 bracket
$ 800.00 -
CSB Zahn Cup YONGLIDA No. 1 Zahn Cup
$ 130.00 -
Rhopoint RL-A-FC-ISO6 ISO flow cup (6mm) BS EN ISO 2431, ASTM D5125
$ 385.00 -
TQC VF2027 Viscosity Cup filter, stainless steel 7mm
$ 141.00
Viscosity cup filterIntroduction
TQC VF2022/2023/2024/2025/2026/2027/2028 Viscosity Cup filter is corresponding to the filter diameter of 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, and 8mm respectively, mainly for DIN cups of TQC in the Netherlands. In order to make the DIN Viscosity Cup more widely applicable, the DIN Viscosity Cup is equipped with a filter retainer, which can freely change the filter to achieve different test tests. TQC DIN cups are used to measure the viscosity of paints, varnishes and other liquids.
The internal dimensions of the TQC DIN Viscosity Cup Interchangeable Filter Viscosity Cup are similar to those specified in the DIN53211 standard.
Parameters
| Model | Filter diameter (mm) | Material | standard |
| VF2022 | 2 | stainless steel | Approximate DIN 53211 |
| VF2023 | 3 | ||
| VF2024 | 4 | ||
| VF2025 | 5 | ||
| VF2026 | 6 | ||
| VF2027 | 7 | ||
| VF2028 | 8 |
Filter model parameters
VF2181 - 1 mm diameter outflow hole (approx. DIN 53211)
VF2022 - 2 mm diameter outflow hole (approx. DIN 53211)
VF2023 - 3 mm diameter outflow hole (approx. DIN 53211)
VF2024 - 4 mm diameter outflow hole (acc. to DIN 53211) calibrated with standard viscosity oil.
VF2025 - 5 mm diameter outflow hole (approx. DIN 53211)
VF2026 - 6 mm diameter outflow hole (approx. DIN 53211)
VF2027 - 7 mm diameter outflow hole (approx. DIN 53211)
VF2028 - 8 mm diameter outflow hole (approx. DIN 53211)
A range of TQC filters
| VF2181 | VF2022 | VF2023 | VF2024 |
 |  |  |  |
| VF2025 | VF2026 | VF2027 | VF2028 |
 |  |  |  |
Take you to the Dutch TQC
TQC sheen VF2024 filterSpecifications
| LIST | VALUE |
|---|---|
| flow hole diameter | 4mm |
| Applicable standards | Approximate DIN 53211 |
| Cup body material | stainless steel |
TQC sheen VF2024 filter Packing list
Filter x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
