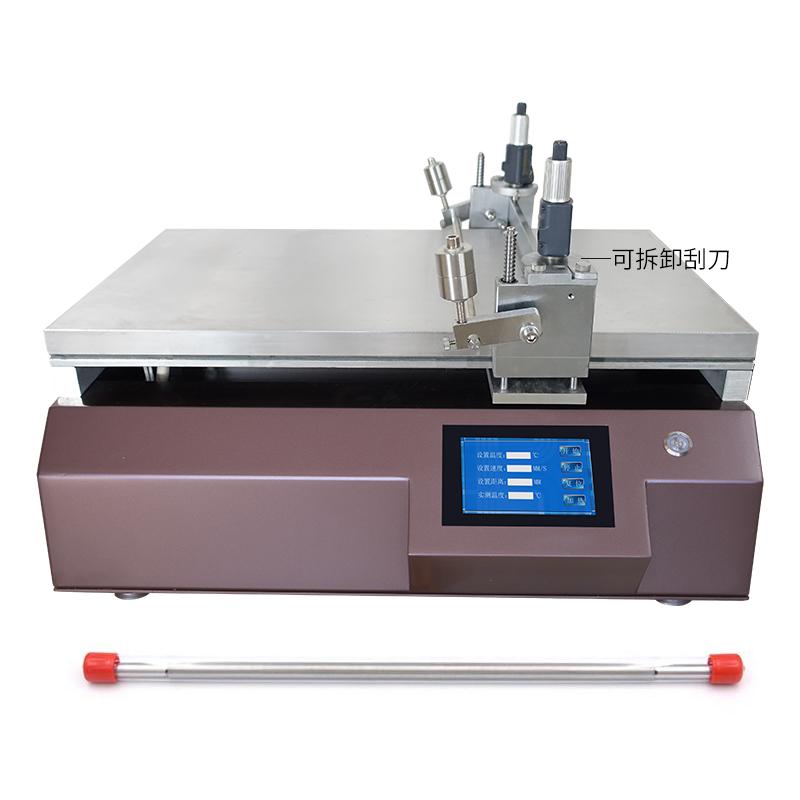

zy TBJ-X3-DJ11C Automatic Film Applicator

CHINA Removable metering rod & drawdown blade heating vacuum adsorption laboratory Film Applicator TBJ-X3-DJ11C

Vacuum adsorption, heating, wire rod, removable drawdown blade integrated, convenient for drawdown blade disassembly, cleaning, replacement, with bracket drawdown blade makes Spreader run more stable, film more uniform, standard high-precision imported wire rod, application width 300mm

Brand

SKU: NB046955

Model

Price

$ 4423.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

zy shopSE

Information

Datasheet RFQ Contract Catalog Manual

What else did others buy

Genuinegoods

zy TBJ-X3-DJ11C Automatic Film ApplicatorOverview
Specifications
Comments
FAQs

TBJ-X3-DJ11C

Automatic Film Applicator

Overview

Since the main factors affecting the coating film are the coating speed and the pressure applied to the coater, the coating applied by hand is often inconsistent, especially between different people, which makes it difficult to compare the test results between the samples. Our automatic Film Applicator is designed to allow the operator to easily apply a precise wet film on different substrates, which greatly improves the reproducibility of the coating film.

TBJ-X3-DJ11C Laboratory Coating Machine is a small scraping machine with vacuum adsorption, heating, wire rod and scraper, which adopts a detachable scraper, which is convenient for scraper disassembly, cleaning and replacement, and the heating temperature range is RT+~180°C.

Application

The laboratory small coating machine can carry out coating experiments on various flat materials such as paper, plastic, metal, PVC, PET, cloth, aluminum alloy plate, etc.

CHINA Removable metering rod & drawdown blade heating vacuum adsorption laboratory Film Applicator TBJ-X3-DJ11C Figure 1

CHINA Removable metering rod & drawdown blade heating vacuum adsorption laboratory Film Applicator TBJ-X3-DJ11C Figure 2

CHINA Removable metering rod & drawdown blade heating vacuum adsorption laboratory Film Applicator TBJ-X3-DJ11C Figure 3

CHINA Removable metering rod & drawdown blade heating vacuum adsorption laboratory Film Applicator TBJ-X3-DJ11C Figure 4

CHINA Removable metering rod & drawdown blade heating vacuum adsorption laboratory Film Applicator TBJ-X3-DJ11C Figure 5

CHINA Removable metering rod & drawdown blade heating vacuum adsorption laboratory Film Applicator TBJ-X3-DJ11C Figure 6

CHINA Removable metering rod & drawdown blade heating vacuum adsorption laboratory Film Applicator TBJ-X3-DJ11C Figure 7

CHINA Removable metering rod & drawdown blade heating vacuum adsorption laboratory Film Applicator TBJ-X3-DJ11C Figure 8

CHINA Removable metering rod & drawdown blade heating vacuum adsorption laboratory Film Applicator TBJ-X3-DJ11C Figure 9

Optional

zy TBJ-X3-DJ11C Automatic Film ApplicatorSpecifications

LIST	VALUE
Coating method	Bar + drawdown blade
Drawdown blade type	Removable drawdown blade, easy to clean and replace
Drawdown blade thickness range	0.001~ 10Mm adjustable
Drawdown blade Accuracy	±0.003mm
Coating speed	5-200Mm/s (variable speed)
Coating size	400 * 300Mm (can be customized)
Spreader Itinerary	Digital arbitrary setting within the range of 1~ 400mm
clamping method	Vacuum adsorption
Control mode	Touch screen
Mayer Rod Thickness Range	Optional between 6-200μm
Mayer Rod Accuracy	±0.001mm
Drawdown blade material	stainless steel
Drawdown blade Accuracy	±0.003mm
vacuum aperture	φ1.2mm
perforation spacing	20*20mm
platform material	aluminum alloy
platform processing	Precision grinding machine
Vacuum pump configuration	external
Vacuum pump size	380180280mm
Case material	3Mm galvanized sheet metal + electrostatic spraying
Host Power Supply	220V/50Hz
Dimension	620410460mm
Device Weight	65KG

zy TBJ-X3-DJ11C Automatic Film Applicator Packing list

Film Applicator X1, External Vacuum Pump X1, Removable doctor blade X1, Wire rod X3, Product manual X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
