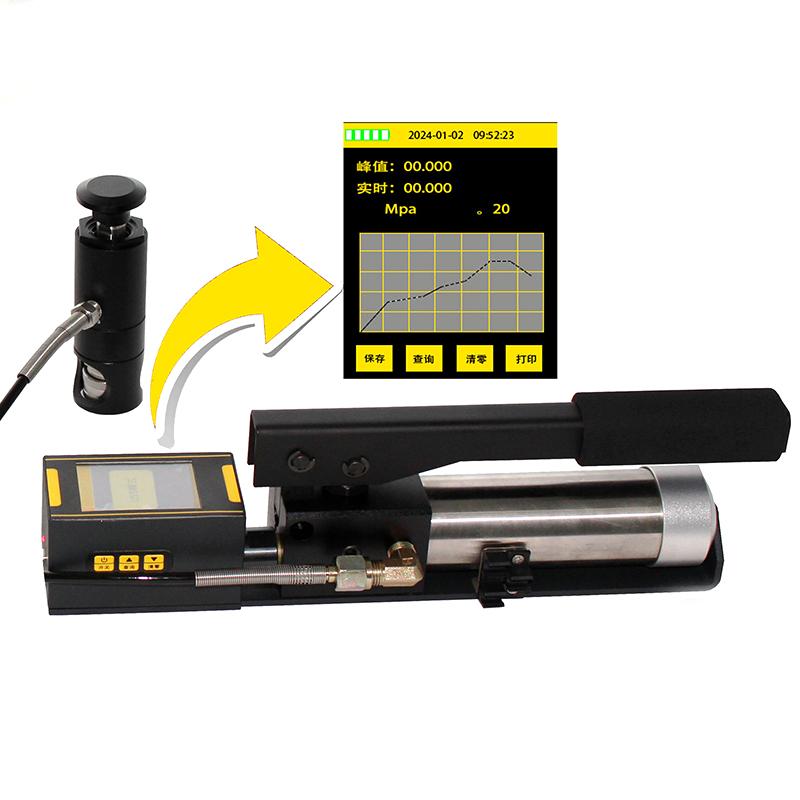

KOSON KS-T Intelligent Adhesion Tester Spindle 14mm
Pressure range 0-64.99 MPa, top 14mm, accuracy +/- 1%, 2.8 inch full touch LCD display, manual pressurization operation.
KOSON
KS-T(14mm)
KS-T
-
Defelsko DOLLY20APK100 kit 20mm/box
$ 560.00 -
TQC Sheen LD9200 Hydraulic Adhesion Tester Pat Handy
$ 8534.00 -
KOSON KS-T smart Adhesion Tester
$ 1078.00 -
KOSON KS-10C coating Adhesion Tester
$ 540.00 -
Defelsko DOLLY10APK100 kit 10mm/box
$ 758.00
Instrument Introduction
The Smart Pull-Off Adhesion Tester measures the adhesion of coatings on metals, paints, sprays, waterproofing materials, adhesives, chrome, nickel, concrete, and other materials. The working principle of the instrument is to use the hydraulic system to detach the coating of a certain diameter on the surface of the substrate to measure the adhesion of the coating, and the multi-function digital display of the Tester shows the size of the adhesion, which is displayed in MPa, KN and PSI. The digital display makes the test results intuitive and reliable. Different from the detection of grid products, it reduces the error of human observation. The product is designed and manufactured according to relevant international and national standards, with advanced technology and stable performance.
Meets standards
① ISO 4624 《Paints and varnishes-Pull-offtest for adhesion》
② ASTM D 4541 《StandardTest Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers》
③ ASTM D7234 《Standard Test Method for Pull-OffAdhesion Strength of Coatings on Concrete Using Portable Pull-OffAdhesion Testers》
(4) GB/T 5210-2006 "Adhesion Test of Pigment and Varnish Pulling Method", TB-T2965-2011 "Technical Conditions for Waterproof Layer of Railway Concrete Bridge Deck", ISO 4624/16276-1
KOSON KS-T(14mm) Intelligent Adhesion TesterSpecifications
| LIST | VALUE |
|---|---|
| Force range | 0-64.99MPa |
| Accuracy | +/- 1% (full scale) |
| resolution | 0.001KN or 0.001MPa |
| Force unit | KN、MPa、PSI |
| Charging method | Type-c high Capacity lithium battery |
| Device size | 340X53X100mm |
| language | Switch between Chinese and English |
| Bluetooth printing (optional) | |
| screen | 2.8 inch full touch LCD display |
| Pressurization method | manual |
| Packaging Dimensions | 450X185X385mm |
| store | 200,000 Connectivity |
| Linear dispersion | Yes. |
| peak | Yes. |
| Automatic shutdown | Yes. |
| Encasement total Weight | 7KG |
| Kit size | 14mm |
KOSON KS-T(14mm) Intelligent Adhesion Tester Packing list
host × 1, anti-fouling box × 1, cutter × 1, special glue for bond strength × 1, charger × 1, manual, warranty card.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
