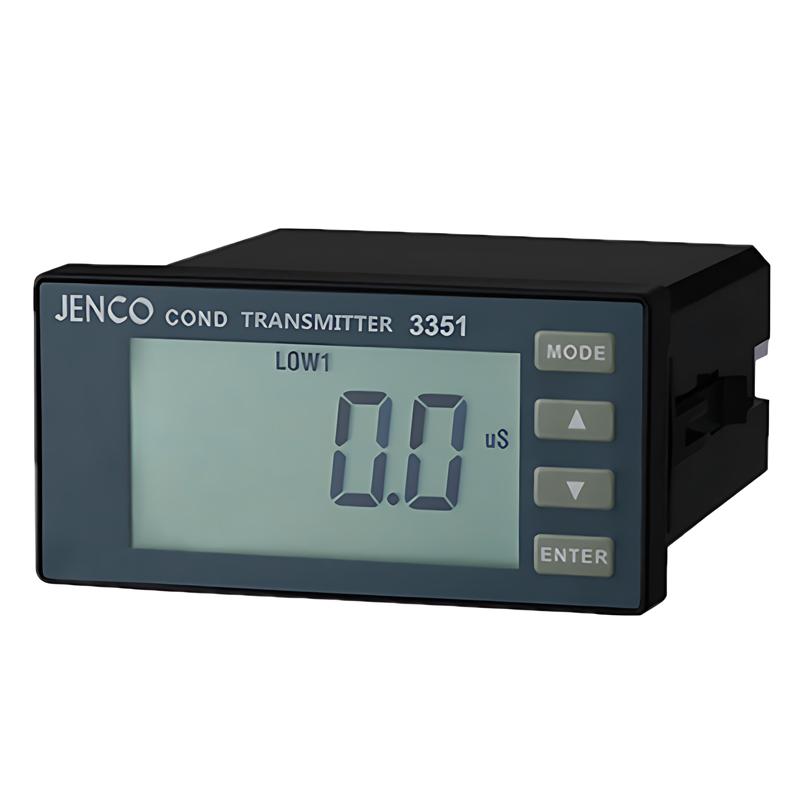

JENCO 3351 1/8 "profile online transmitter for online measurement of conductivity/resistivity and temperature
Modbus protocol, 0~20.0mS/cm, backlit LCD display
JENCO
3351
-
LEICI DDSJ-319L Conductivity Meter Pure water/linear/non-compensation 3 kinds of temperature compensation methods
$ 1380.00 -
Qiwei DDB-12L pen conductivity meter measuring range 0~1999uS/cm
$ 97.00 -
ECscan30 pen conductivity meter Conductivity Detector TDS
$ 155.00 -
LEICI DJS-1DF Conductivity Detector electrode (platinum black) three-core aviation plug (waterproof type)
$ 97.00 -
HANNA HI98318 GroLine EC-TDS- ℃ Tester
$ 201.00
Introduction
1/8" form factor in-line transmitter, in-line measurement of conductivity/resistivity and temperature, provides RS-485 output of Modbus communication protocol, cost-effective. Conductivity, resistivity, temperature controller, 1/8DIN, RoHS compliant, RS-485 output, Modbus standard communication protocol, backlight LCD, affordable price.
Features
Standard 1/8DIN body design.
LCD display with backlight.
RS-485 Modbus standard communication protocol.
It has automatic/manual temperature compensation.
CE, RoHS certification.
JENCO 3351 Online conductivity resistivity TesterSpecifications
| LIST | VALUE |
|---|---|
| Conductivity/resistivity range 1 K = 0.01-1 cm | 0.000 to 1.999 uS/cm / 0.00 to 19.99 MΩ |
| Conductivity/resistivity resolution 1 K = 0.01-1 cm | 0.001 uS/cm / 0.01 MΩ |
| Conductivity/resistivity Accuracy 1 K = 0.01-1 cm | +/- 0.5% F.S. +/- 1 word |
| Conductivity/resistivity range 2 K = 0.01-1 cm | 0.00 to 19.99 uS/cm / 0.000 to 1.999 MΩ |
| Conductivity/resistivity resolution 2 K = 0.01-1 cm | 0.01 uS/cm / 0.001 MΩ |
| Conductivity/resistivity Accuracy K = 0.01-1 cm | +/- 0.5% F.S. +/- 1 word |
| Conductivity range 1 K = 0.1-1 cm | 0.00 to 19.99 uS/cm |
| EC resolution 1 K = 0.1-1 cm | 0.01 uS/cm |
| Conductivity Accuracy 1 K = 0.1-1 cm | +/- 0.5% F.S. +/- 1 word |
| Conductivity range 2 K = 0.1-1 cm | 0.0 to 199.9 uS/cm |
| EC resolution 2 K = 0.1-1 cm | 0.1 uS/cm |
| Conductivity Accuracy 2 K = 0.1-1 cm | +/- 0.5% F.S. +/- 1 word |
| Conductivity range 1 K = 1.0-1 cm | 0.0 to 199.9 uS/cm |
| EC resolution 1 K = 1.0-1 cm | 0.1 uS/cm |
| Conductivity Accuracy 1 K = 1.0-1 cm | +/- 0.5% F.S. +/- 1 word |
| Conductivity range 2 K = 1.0-1 cm | 0 to 1999 uS/cm |
| EC resolution 2 K = 1.0-1 | cm1 uS/cm |
| Conductivity Accuracy 2 K = 1.0-1 | Cm +/- 0.5% F.S. +/- 1 word |
| Conductivity range 3 K = 1.0-1 cm | 0.00 to 19.99 mS/cm |
| EC resolution 3 K = 1.0-1 cm | 0.01 mS/cm |
| Conductivity Accuracy 3 K = 1.0-1 cm | +/- 0.5% F.S. +/- 1 word |
| temperature range | -10.0 ～ 120.0 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ±0.3 °C |
| temperature coefficient | 2.00% or 0.00%, the user chooses |
| communication output | RS-485 Modbus standard communication protocol |
| Dimensions | 96 x 48 x 110 mm |
| opening size | 92 x 45 mm |
| Power Supply | 100 ～ 240V AC，50/60 Hz |
JENCO 3351 Online conductivity resistivity Tester Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
