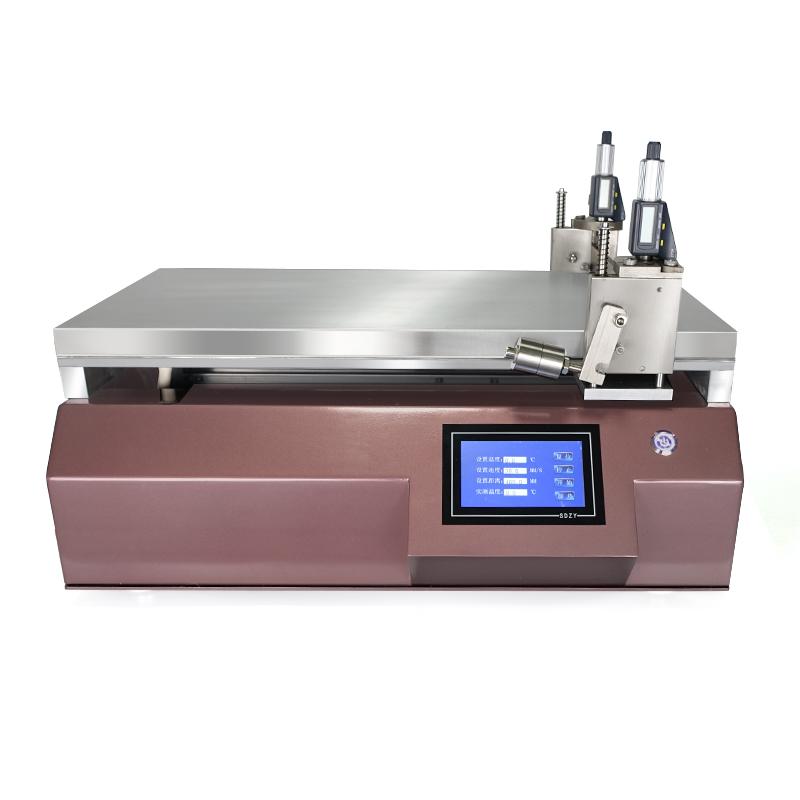

Chinese removable scraper heating vacuum adsorption Automatic Film Applicator TBJ-X5-DJ6 scraper material 316 stainless steel
Vacuum adsorption + heating + removable scraper; the scraper is made of 316 stainless steel, with good wear resistance and corrosion resistance, high flatness aluminum alloy baseplate, and the heating temperature reaches 180 ℃.
zy
TBJ-X5-DJ6
TBJ-X3-DJ21
-
Factory direct NBC-XF200 extrusion slot-die flat coating machine
$ 24944.00 -
HUINUO TM2200Pro/02 drawdown blade vacuum adsorption Small Film Applicator Effective area 500 * 600mm
$ 5978.00 -
Spreader TBJ-B4-DJ13 drawdown Bar & Blade heating Film Applicator (floor type) Effective area 900 * 1000mm
$ 15616.00 -
HuiNuo TM3100Pro/03AF drawdown Bar & blade heating coater (automatic feeding) Effective area 150 * 70cm
Login -
MODERNER AFA-V Miniature Automatic Film Applicator Automatic Film Applicator
Login
Overview
TBJ-X small coating testing machine for experiments adopts all imported accessories, and the price is cheap, which has been favored by many multinational enterprise R&D institutions, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the coating and gluing effect, and ensure the uniformity and stability of the coating and gluing.
Since the main factors affecting the coating film are the coating speed and the pressure applied to the coater, the coating applied by hand is often inconsistent, especially between different people, which makes it difficult to compare the test results between the samples. Our automatic Film Applicator is designed to allow the operator to easily apply a precise wet film on different substrates, which greatly improves the reproducibility of the coating film.
Optional
|
|
|
zy TBJ-X5-DJ6 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Coating method | Drawdown blade |
| Drawdown blade type | Removable drawdown blade, easy to clean and replace |
| Drawdown blade material | 316 stainless steel, wear and corrosion resistant |
| Drawdown blade Accuracy | ±0.003mm |
| Drawdown blade thickness range | 0.001-10Mm drawdown blade can be lifted |
| Coating speed | 5-200Mm/s (< 5mm/s can be customized) |
| Coating size | 300 * 400Mm (Miscellaneous size can be customized) |
| Vacuum Area | 300 * 400Mm (can be customized) |
| vacuum aperture | Φ1.2mm |
| Vacuum hole spacing | 20*20mm |
| Host Power Supply | 220V 50Hz |
| Dimension | 630*410*520mm |
| Net Weight | 65KG |
| speed control | Infinitely variable speed |
| Coating table material | aluminum alloy |
| Heating Temperature range | RT+~180℃ |
| Temperature Uniformity | ±3℃ |
| Heating mode | Baseplate heating |
| Power | 1500W |
| Vacuum pump size | 380*180*280mm |
| Substrate clamping method | Vacuum adsorption |
| Control mode | Touch screen control |
| Optional Accessories | Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |
| customizable function | Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader |
zy TBJ-X5-DJ6 Automatic Film Applicator Packing list
Automatic Film Applicator X1, External Vacuumpump X1, 316 Material Removable Scraper X1, Product Manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
