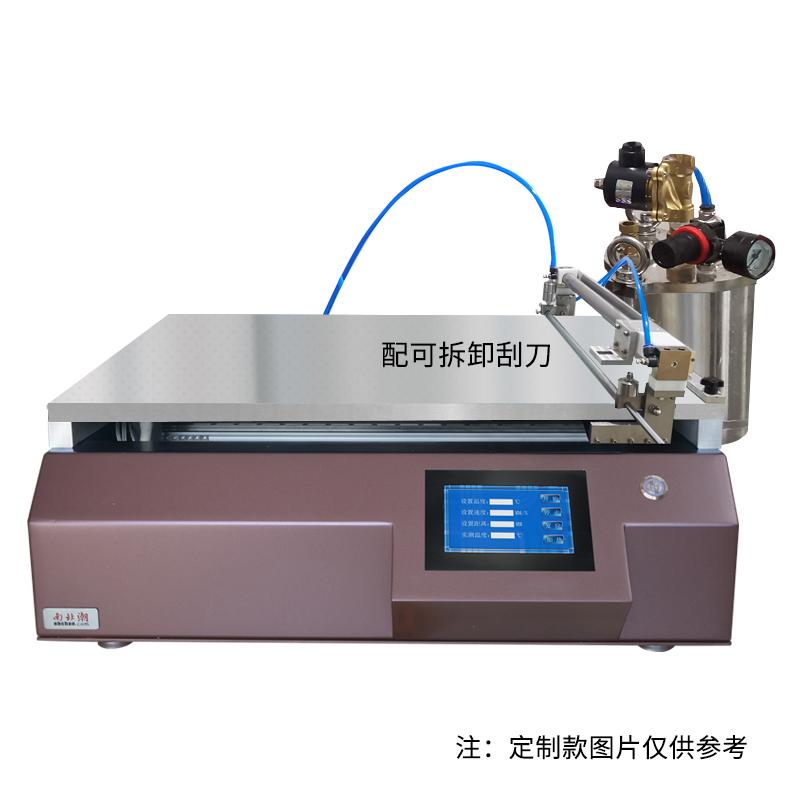

CHINA TBJ-X1-DJ9 Automatic drawdown blade vacuum adsorption Film Applicator with feeding system, width 300 * 600mm
Customized model, removable drawdown blade + vacuum adsorption + automatic feeding system, film size 300 * 600mm, WFT range 0~10mm, drawdown blade removable, easy to clean.
zy
TBJ-X1-DJ9
TBJ-X2-DJ6
TBJ-X1-DJ10
-
HUINUO AV1000 Vacuum Spreader
$ 615.00 -
China TBJ-X1-DJ4 Removable Drawdown blade Vacuum chuck Film Applicator Laboratory Draw-Down Applicator
$ 3024.00 -
CHINA metering rod & drawdown blade vacuum adsorption small coater TBJ-X2-DJ12 Coating size 400 * 500mm
$ 5512.00 -
HuiNuo TM3200AF/09D Floor Type Multifunctional Film Applicator drawdown Bar & Blade Spreader Vacuum adsorption Automatic feeding 80 * 70cm
Login -
HuiNuo TM3100Pro/04 Multifunctional Automatic Film Applicator (bottom substrate + upper heating) Coating size 40 * 30cm
Login
TBJ-X small coating testing machine for experiments adopts all imported accessories, and the price is cheap, which has been favored by many multinational enterprise R&D institutions, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the coating and gluing effect, and ensure the uniformity and stability of the coating and gluing.
TBJ-X1-DJ9 is a fully automatic film coating machine with automatic feeding system, with an effective coating area of 300*600mm, using a detachable scraper, easy to clean and replace, and is a customized automatic film coating machine.
Optional
|
|
|
zy TBJ-X1-DJ9 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Drawdown blade Accuracy | ±0.003mm |
| Drawdown blade thickness range | 0~10Mm drawdown blade can be lifted |
| Coating speed | 5~ 180Mm/s (< 5mm/s can be customized) |
| Coating size | 300*600mm |
| Vacuum Area | 500 * 600Mm (can be customized) |
| vacuum aperture | Φ1.2mm |
| Vacuum hole spacing | 20*20mm |
| Vacuum pump size | 380*180*280mm |
| Host Power Supply | 220V 50Hz |
| Weight | Net Weight 65KG |
| speed control | Infinitely variable speed |
| Bottom plate material | aluminum alloy |
| Spreader Accuracy | 0.001mm |
| customizable function | Automatic inking system |
| customizable function | Jet system device, UV solid inclusion device |
| Feeding principle | Air source pressure flows out |
| Feed Sport Mode | Reciprocating linear motion |
| Feeding back and forth traverse speed | 2-150mm/s |
| spit Volume | Adjustable (by adjusting the air pressure and the running speed of the discharge port) |
| Shaft transmission mode | Timer belt |
| Feeding system air source | 0.6Mpa, can be connected to the trachea of φ 8 (self-equipped) |
| Power Voltage of charging system | 220V,50Hz |
| Tank pressure | Maximum withstand 8Mpa |
| Material of feeding barrel | 304 stainless steel with a wall thickness of 4mm |
| Feeding bucket configuration | Safety valve, pressure regulating valve, pressure gauge, discharge valve |
| Optional Accessories | Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |
| Feeding drum Volume | 1L |
| Coating method | Automatic Ink + drawdown blade |
| Drawdown blade type | Removable drawdown blade, easy to clean and replace |
zy TBJ-X1-DJ9 Automatic Film Applicator Packing list
Film Applicator X1, external vacuum pump X1, doctor blade X1, automatic inking system x1, product manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
