NBCHAO.Com SN: NB047368
YiBai CTG-800F5 Coating Thickness Gauge
YIBAI CTG-800F5 Single Iron Base Large Range Coating Thickness Gauge Measurement range 0~5000μm, Measurement accuracy +/- 2 %~ +/- 3%, LCD lattice LCD screen, magnetic Induction principle, spring guide sleeve probe with wear-resistant cemented carbide probe.
YiBai CTG-800F5 Coating Thickness GaugeKey Spec.
Measurement principle
magnetic Induction
Measurement range
0~5000μm
margin of error
0-1500μm：±2%H+1μm；1500-5000μm：±3%H+1.5μm

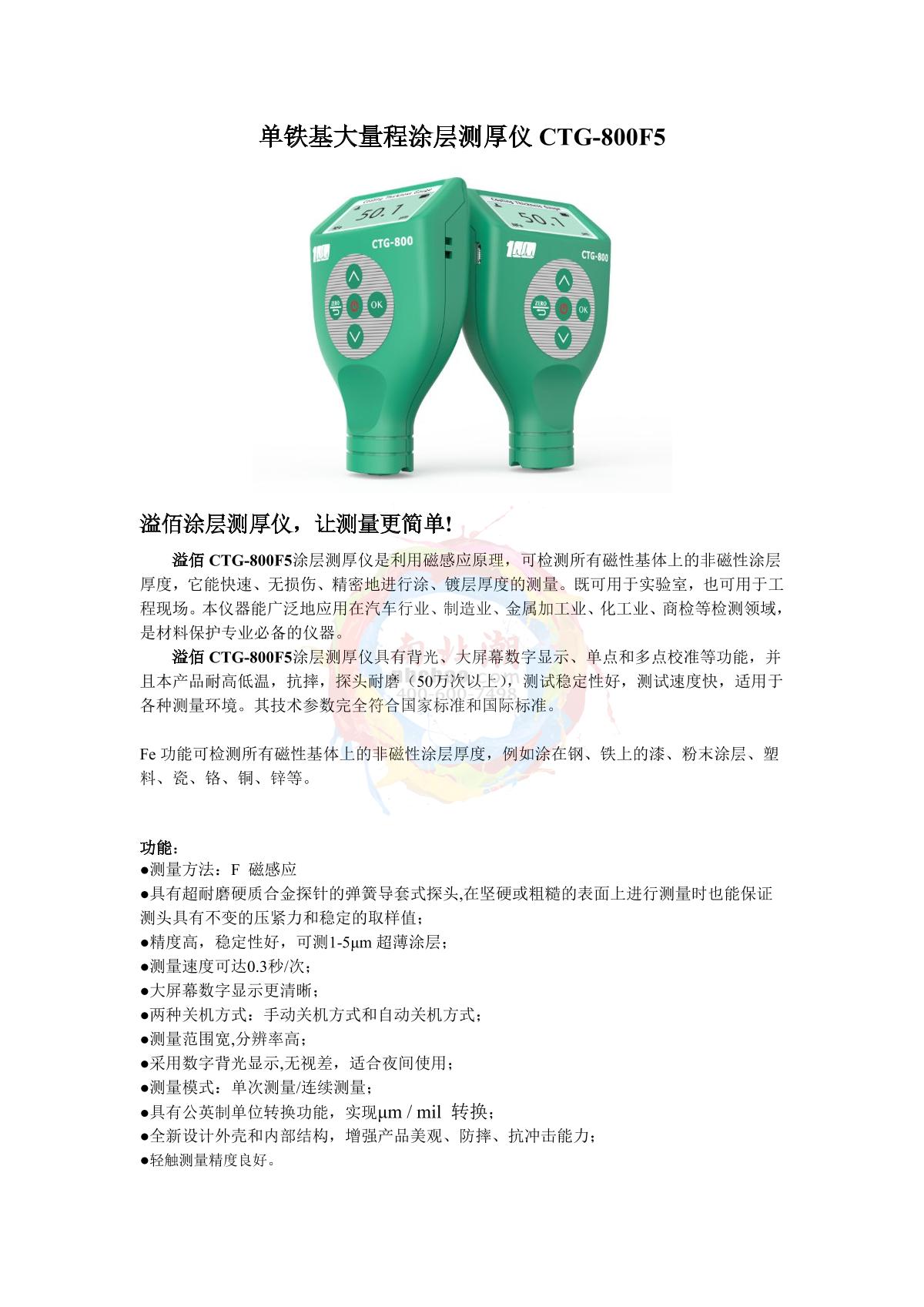

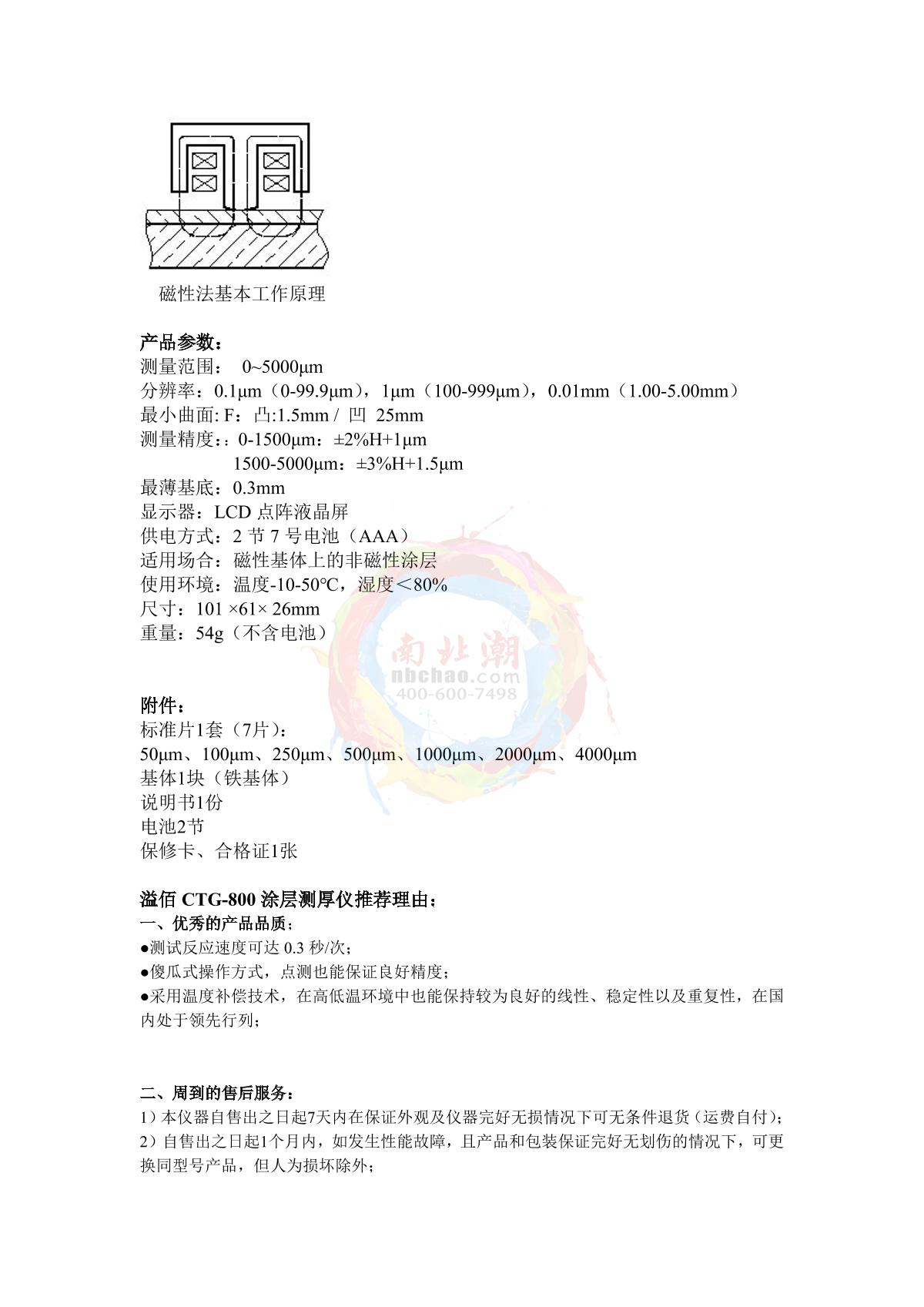

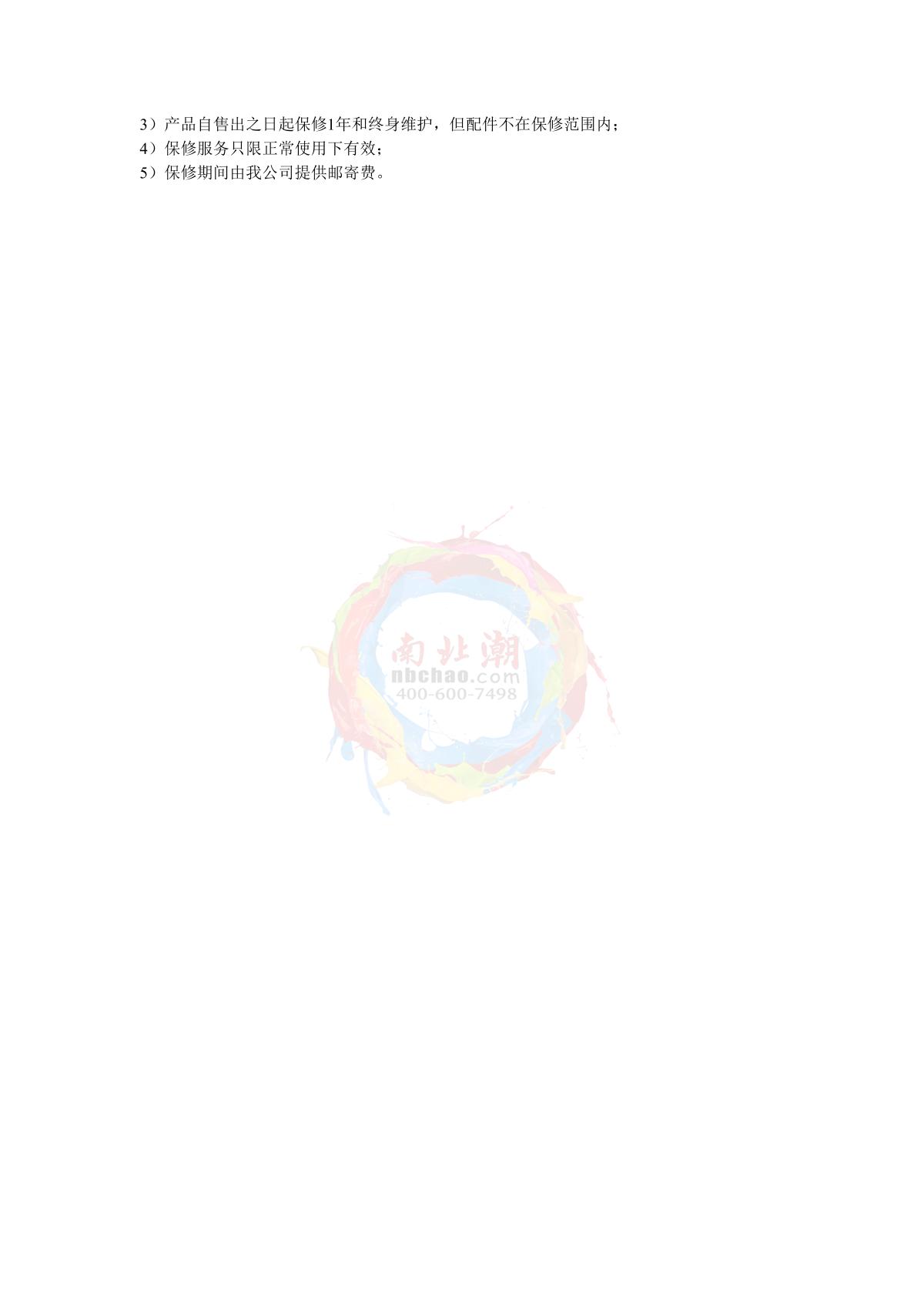

CTG-800F5 Coating Thickness Gauge
Details
