        Home> Miscellaneous instruments> Factory> Factory NBC-9013 Battery extrusion testing machine

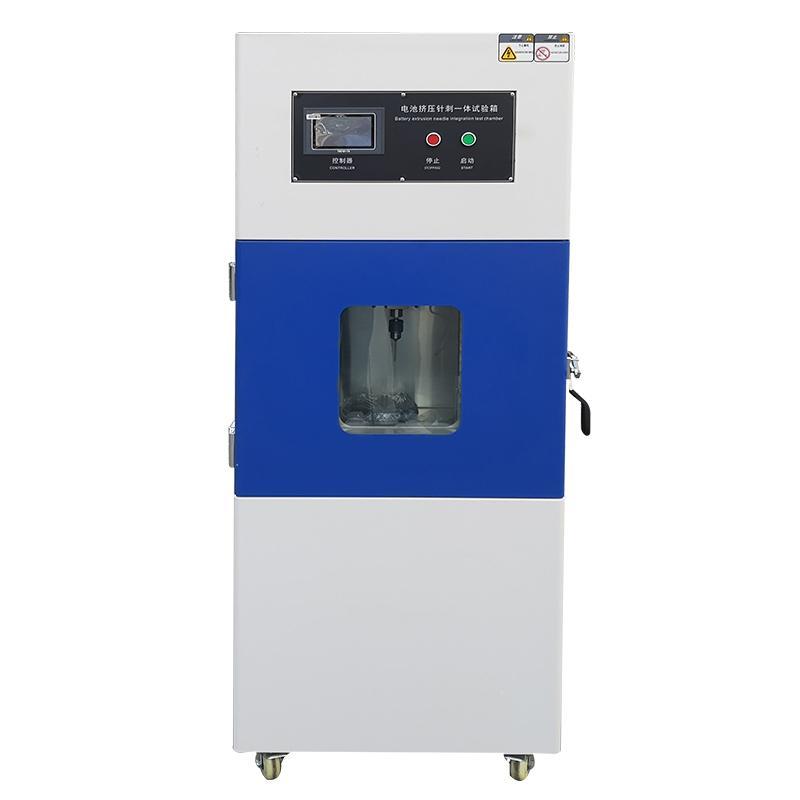

        Factory NBC-9013 Battery extrusion testing machine

        CHINA NBC-9013 battery extrusion Tester, lithium battery extrusion failure Tester

        Force value range 1~ 20kN, force measurement accuracy 0.1N, unit conversion kg, N, lb, extrusion stroke 200mm or 300mm, force value display PLC touch screen display, battery extrusion head standard extrusion head, area ≥ 20cm ², extrusion degree Extrusion pressure reaches 13 +/- 0.2kN, keep 1min., box material Inner box stainless steel, outer box Cold rolled steel plate spray treatment.

        Brand
        SKU: NB047388
        China Factory
        Stock
        Loading…
        Price
        $ 2129.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          FactoryLOGO

          Factory shop

          Information
          Datasheet RFQ Contract Catalog
          What else did others buy
          Genuinegoods

          • Factory NBC-9013 Battery extrusion testing machineOverview

          • Specifications
          • Comments
          • FAQs
          NBC-9013
          Battery extrusion testing machine
          • CHINA NBC-9013 battery extrusion Tester, lithium battery extrusion failure Tester
          • CHINA NBC-9013 battery extrusion Tester, lithium battery extrusion failure Tester Figure 1
          • CHINA NBC-9013 battery extrusion Tester, lithium battery extrusion failure Tester Figure 2
          Force value range 1~ 20kN, force measurement accuracy 0.1N, unit conversion kg, N, lb, extrusion stroke 200mm or 300mm, force value display PLC touch screen display, battery extrusion head standard extrusion head, area ≥ 20cm ², extrusion degree Extrusion pressure reaches 13 +/- 0.2kN, keep 1min., box material Inner box stainless steel, outer box Cold rolled steel plate spray treatment.

          Introduction

          NBC-9013 Battery Extrusion Tester The Battery Extrusion Tester is suitable for simulating the crushing of batteries during the use, transportation, storage or disposal of household waste.Extrusion testThe following rules should be followed in the extrusion direction: a battery is only squeezed once, and the battery is qualified to not explode and not fire.

          1. For cylindrical batteries, the longitudinal axis of the extruded battery should be parallel to the two plates of the extrusion device;

          2. For prismatic and pouch cells, only the wide side of the battery is squeezed;

          3. For coin type or button type batteries, the upper and lower planes of the battery are squeezed in parallel to the flat plate.

          According to the standard

          GB  31241-2014，GB/T 8897.4-2008，YD/T 2344.1-2011，GB/T 21966-2008，MT/T 1051-2007，YD 1268-2003，GB/T 19521.11-2005，YDB 032-2009，UL 1642，UL 2054，IEC 62281，IEC 60086。

          VS

          Factory NBC-9013 Battery extrusion testing machineSpecifications

          LIST VALUE
          Drive mode Hydraulic motor drive
          Force range 1 ～20kN
          Force measurement Accuracy 0.1N
          unit conversion kg, N, lb
          Extrusion stroke 200Mm or 300mm
          Force display PLC touch screen display
          Battery extrusion head Standard extrusion head, area ≥ 20cm ²
          degree of extrusion The extrusion pressure reaches 13 +/- 0.2 kN and is maintained for 1 minute.
          Box material Inner box stainless steel, outer box Cold rolled steel plate Spray treatment
          feature The rear side of the box is designed with a discharge trend and a pressure relief device, and the box is equipped with a lighting lamp
          Test space (length x width x height) 300x300x300mm
          Dimensions (length x width x height) About 700x800x1830mm
          Weight About 220kg
          Power Supply AC380V， 50HZ

          Factory NBC-9013 Battery extrusion testing machine Packing list

          host X1, manual X1, certificate X1, warranty card X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
