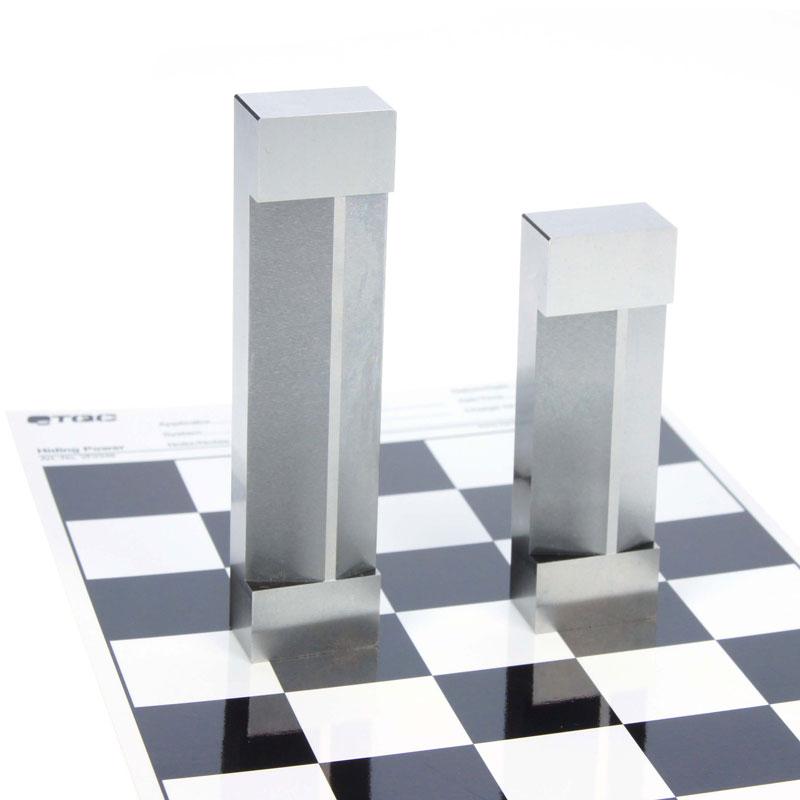

TQC VF1573 prismatic bird type Film Applicator WFT 100μm
TQC Bird Film Applicator 75mm, 100µm
Brand
SKU: NB004740
TQC sheenModel
VF1573
Price
$ 716.00
Promotion
Service
The delivery and service By NBchao.Com
VS
What else did others buy
Genuinegoods
Introduction
The TQC bird single-sided applicator is used on paper, occlusion cards, glass plates or other smooth and flat surfaces. It is a simple and accurate production and quality control tool that does not require adjustment. Coating width 75mm.
Parameters
| Model | VF1571 | VF1572 | VF1573 | VF1574 | VF1575 | VF1576 |
| Wet film thickness (μm) | 50 | 75 | 100 | 125 | 150 | 200 |
| Coating width (mm) | 75 | |||||
| Material | stainless steel | |||||
| Overall accuracy | ±2μm | |||||
| precision | No more than 3μm | |||||
| size | 105x25x15mm | |||||
| Surface treatment | polished | |||||
| Material | DAIDO 440C material medical grade martensitics stainless steel tool steel. Sub-zero vacuum hardening (+1756°C~-70°C) with a hardness of HRC55 (the highest Rockwell hardness grade) | |||||
Product detail drawing
Take you to the Dutch TQC
VS
TQC sheen VF1573 Prismatic bird Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| type | single-sided |
| WFT | 100μm |
| Application width | 75mm |
| Accuracy | ±2μm |
| material | DAIDO 440C |
| size | 105*25*15mm |
| Surface preparation | polishing |
TQC sheen VF1573 Prismatic bird Film Applicator Packing list
Coating applicator x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
FAQ
[Q]
Emulsion film formation is the preparation of this film applicator?
[A]
Yes!
[Q]
Are all bird type film applicators available for inspection in the JB/T7663.2 standard?
[A]
Not necessarily, but this VF1573 bird type film applicator can be considered.
[Q]
What is the difference between VF1574 and VF1573?
[A]
Hello, VF1574 and VF1573 are mainly prepared with different wet film thicknesses, which are 125μm and 100μm respectively. Miscellaneous aspects are the same.
+TQC sheen VF1573 Prismatic bird Film Applicator Big data
+TQC sheen VF1573 Prismatic bird Film ApplicatorSimilar products
+TQC sheen VF1573 Prismatic bird Film ApplicatorStandard
- ActiveGB/T 1864-2012
- ActiveGB/T 1727-2021
- ActiveGB/T 7044-2022
- ActiveHG/T 20720-2020
- ActiveHG/T 3951-2007
- AbolishGB/T 9755-2014
- ActiveASTM D823-2018
- ActiveJB/T 7663.2-2007
- ReplacedGB 1727-1992
