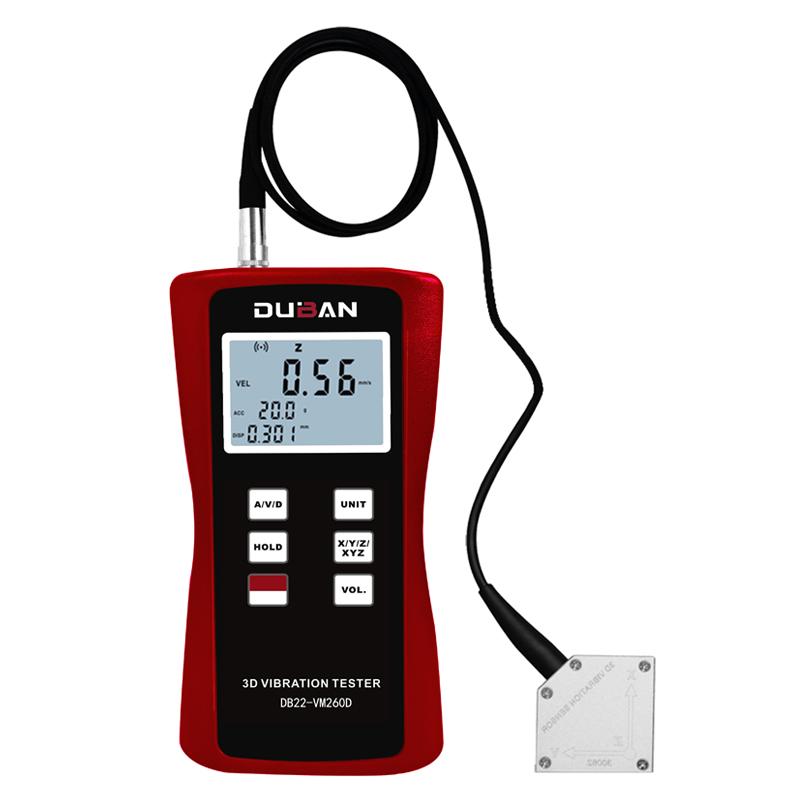

DUBAN DB22-VM260D 3D Triaxial Vibration Meter with Triaxial Piezoelectric Vibration Sensors
Sensors: Three-axis piezoelectric vibration Sensors, vibration axis X, Y, Z axis or three axes, Precision +/- 5% + 2 words, Measurement range displacement: 0.001~ 4.0mm peak-peak; Speed: 0.01~ 400.0 m/s True RMS; Acceleration: 0.1~ 400m/s ² peak, Frequency range displacement: 10Hz~ 1KHz; Speed: 10Hz~ 1KHz; Acceleration: 10Hz~ 10KHz.
Duban
DB22-VM260D
-
LANDTEK VM-6320 Vibration Meter (Practical)
$ 327.00 -
LANDTEK VM-6380 portable vibratIon Meter
$ 521.00 -
Seema AS63A high-precision vibratIon Meter, acceleration 0.1~ 199.9m/s2
$ 162.00 -
DUBAN DB22-VM260D 3D Triaxial Vibration Meter with Triaxial Piezoelectric Vibration Sensors
$ 677.00 -
AMITTARI AV-160T Rotation speed meter, vibratIon Meter, bearing condition measurement
$ 542.00
Introduction
The triaxial vibratIon Meter can measure the vibration parameters of the three axes or the vibration parameters of the single axis at the same time; It is used for periodic motion measurement to detect imbalances and deviations in moving machinery. Designed for on-site measurement of a wide range of mechanical vibrations to provide data for quality control, uptime and prior equipment maintenance. Choose a high-performance accelerometer for accurate, reproducible measurements.
Features
It is possible to measure the vibration parameters of the three axes or the vibration parameters of the single axis at the same time.
Compliant with international standards ISO2954 for periodic motion measurement to detect imbalances and deviations in moving machinery.
Designed for on-site measurement of a wide range of mechanical vibrations to provide data for quality control, uptime and prior equipment maintenance.
Wide frequency range, in acceleration mode, the frequency can reach 10-10KHz.
With AC signal output, it is convenient for auscultation and recording.
An optional headset can be used as a stethoscope.
It uses "USB cable output" to communicate with the PC.
Duban DB22-VM260D 3D VIBRATION TESTERSpecifications
| LIST | VALUE |
|---|---|
| Sensors | Triaxial Piezoelectric Vibration Sensors |
| vibration shaft | X, Y, Z axis or three axes |
| Precision | +/- 5% + 2 words |
| Measurement range | Displacement: 0.001~ 4.0mm peak-to-peak; Speed: 0.01~ 400.0 m/s True RMS; Acceleration: 0.1~ 400m/s ² peak |
| Frequency range | Displacement: 10Hz~ 1KHz; Speed: 10Hz~ 1KHz; Acceleration: 10Hz~ 10KHz |
| operating conditions | Temperature: 0~50 ℃; Humidity: < 90% |
| output | 2.0V AC load resistance 10k |
| size | 140x77x32mm |
| Power Supply | 4X1.5vAAA 7 batteries |
Duban DB22-VM260D 3D VIBRATION TESTER Packing list
Host X1, magnetic suction seat X1, probe (tapered) X1, probe (spherical) X1, measurement Sensors X1, portable case X1, instruction manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
