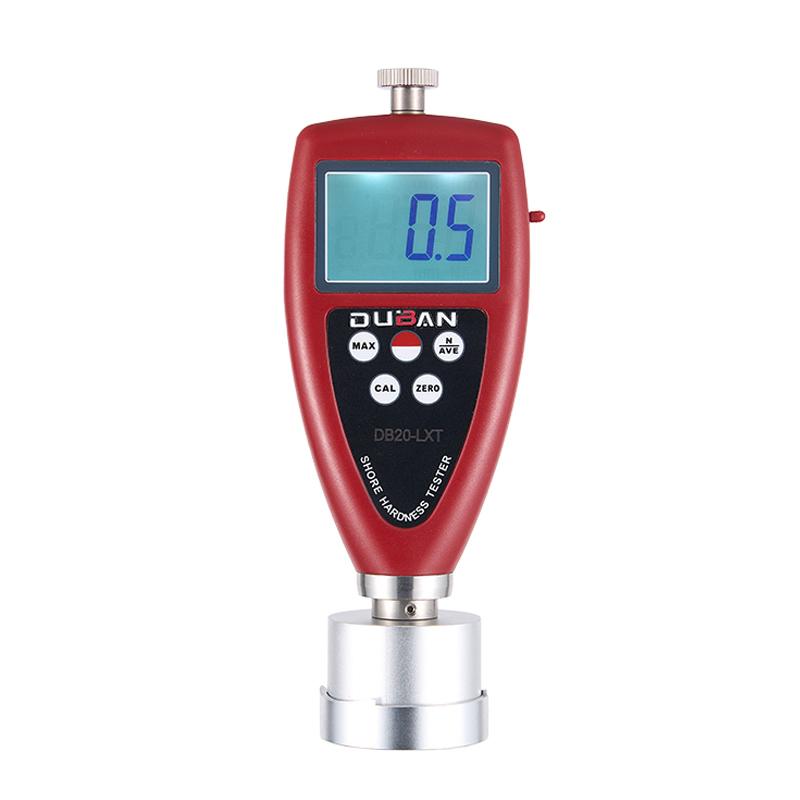

DUBAN DB20-LX-T2.5 Spinning & weaving Hardness Gauge
Indenter spherical 2.5mm φ, convertible probe Probe curved end for bobbin diameter less than or equal to 400mm
Duban
DB20-LX-T2.5
DB20-LX-T5
DB20-LX-T10
-
ShenyangTX W-B75b Wayer Hardness Tester for testing brass tubing with an inner diameter as small as 6mm
$ 1097.00 -
DUBAN DB20-LX-DW Wood surface Hardness Gauge
$ 371.00 -
AMITTARI AW-20A Webster Hardness Tester Aluminum alloy, thick 0.6-13 inner diameter > 10
$ 520.00 -
ShenyangTX W-B75 durometer for brass tube and brass belt
$ 941.00 -
AMITTARI AW-20 Webster Hardness Tester Aluminum alloy, thick 0.6-6 inner diameter > 10
$ 434.00
DB20-LX-T series textile Hardness Tester is used to measure the winding density (hardness) of textile bobbins, warp beams, reels, cones, dyeing bags, etc. The principle of measuring the hardness of fabrics is based on measurements under known spring loadsThe resistance of the ball to the spool of penetration.
Features
Convertible probes with curved probe ends for bobbins up to 400mm in diameter and flat probes for bobbins larger than 400mm in diameter.
Average value calculation, maximum value latching, and underVoltage alarm indication functions.
USB cable and Bluetooth data output are used to communicate with the PC.
Duban DB20-LX-T2.5 Spinning & weaving Hardness GaugeSpecifications
| LIST | VALUE |
|---|---|
| display parameters | Hardness/Average/MAX Maximum |
| indenter | Spherical 2.5mm φ |
| Convertible probe | The curved end of the probe is used for bobbins with a diameter of less than or equal to 400mm, and the flat end of the probe is suitable for bobbins with a diameter greater than 400mm |
| Scope of application | Synthetic fibers, finished fibers, and filament bobbins for tight winding |
| Display range | 0~100H (Hardness scale line) |
| Measurement range | 10~90H (Hardness scale line) |
| Accuracy | ≤±1H |
| resolution | 0.1H |
| Low Voltage prompt | √ |
| Automatic shutdown function | √ |
| Indentation depth | 0~2.5mm |
| Measuring pressure ** | About 12.5N |
| Measurement of spring force * | 0.55~8.065N |
| Head diameter | 51mm |
| Spherical radius of working face | 55Mm (when measuring with probe curved end) |
| working plane | 45Mm φ (when measuring with probe plane end) |
| Operating Environment | Temperature 0~40 ℃; Humidity < 80% RH |
| Power Supply | 2X1.5v AAA 7 batteries |
| size | 178x65x45 mm |
| heavy yes | 290G (without battery) |
Duban DB20-LX-T2.5 Spinning & weaving Hardness Gauge Packing list
Host X1, portable case X1, instruction manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
