Introduction

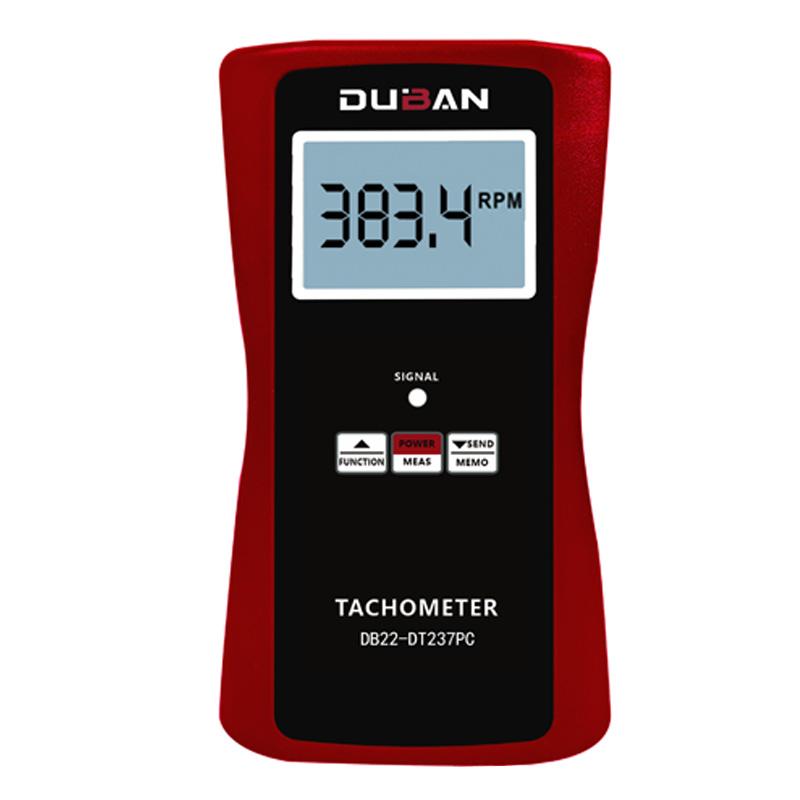

DB22-DT237PC Smart Tachometer Multi-function Tachometer is used to determine the rotational speed, linear speed or frequency of the motor; It is widely used in motors, fans, papermaking, plastics, chemical fibers, washing machines, automobiles, aircraft, ships and other manufacturing industries.
Features
It has the functions of automatic shutdown, manual shutdown and under-Voltage alarm indication.
Wide measurement range and high resolution; Digital display, no parallax; Automatically memorize the maximum, minimum, and last measured value during the measurement.
The structure is sturdy, delicate and easy to carry. The whole machine adopts durable advanced electronic components; The shell is made of lightweight and rigid ABS plastic, which is beautiful and easy to use.
The multi-function can be used as a photoelectric tachometer for non-contact speed measurement (r/min); It can also be used as a contact tachometer for contact measurement of rotational speed and linear speed (m/min/ft/min).
Use US B data cable output to connect with the computer.
Provide Bluetooth B l u e t o o t h data output option.
Duban DB22-DT237PC Rotation speed MeterSpecifications
| LIST | VALUE |
|---|---|
| Display | LCD backlight display |
| Measurement range | Laser: 2.5-99, 999 r/min; Contact: 0.5-19, 999 r/min; Linear velocity: 0.05-1999 m/min; 0.2-6560 ft/min |
| Photoelectric distance measurement | 50~250Mm (typical) up to 600mm depending on luminance |
| Accuracy | ±(0.05%n+1d) |
| resolution | 0.01/0.1/1 |
| Sampling time | 1.0 seconds (60 rpm or less) |
| Memory function | MAX Maximum, MIN Minimum and Last Measured value |
| Power Supply | 4X1.5vAAA 7 batteries |
| size | Host: 140x77x32mm; Sensors: φ 45x195mm |
Duban DB22-DT237PC Rotation speed Meter Packing list
host X1, wire speed wheel X1, tapered adapter X1, round adapter X1, portable case X1, operation manual X1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
