DUBAN DB10-VC260 Vibrator calibrator Acceleration 10m/s ² (RMS) +/- 3%
Frequency 159.2Hz +/- 0.5%, Acceleration output 10m/s ² (RMS) +/- 3%, Speed output 10mm/s (RMS) +/- 3%, Alternative output 10um (RMS) +/- 3%, Transverse output < 5%, Deformation < 3%, Maximum load 150g, Heating time < 3 seconds, Operating Conditions Temperature: -10~40 ℃ Humidity: < 85% RH.
Duban
DB10-VC260
-
DUBAN DB22-VM260B Vibrator, three-parameter display, displacement 0.001~ 4.0mm
$ 475.00 -
LANDTEK VM-6380 portable vibratIon Meter
$ 521.00 -
LANDTEK VM-6310 Vibration Meter (Basic)
$ 249.00 -
SMART SENSOR AS63B split VibratIon Meter Acceleration 0.1~ 199.9m/s2
$ 231.00 -
DUBAN DB22-VM260DET Vibrator, Piezoelectric Vibration Sensors Displacement 0.001~ 4.0mm
$ 596.00
Introduction

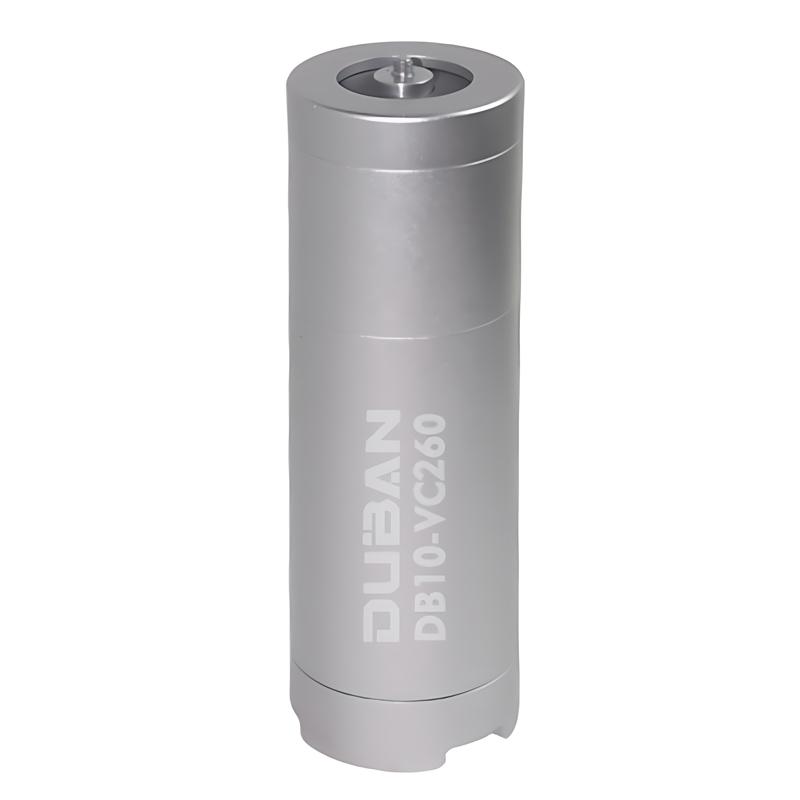

The DB10-VC260 Vibration Meter Calibrator is a small, self-contained, hand-held shaker designed for quick and easy inspection of accelerometers, vibration monitoring systems, and recording systems. A known and controllable rms vibration accelerometer weighing up to 150g is provided for verification.
Duban DB10-VC260 Vibrator calibratorSpecifications
| LIST | VALUE |
|---|---|
| Frequency | 159.2Hz±0.5% |
| Acceleration output | 10m/s²(RMS)±3% |
| Speed output | 10mm/s(RMS)±3% |
| alternate output | 10um(RMS)±3% |
| lateral output | <5% |
| deformation | <3% |
| Maximum load | 150g |
| Heating time | < 3 seconds |
| Operating Conditions | Temperature: -10~40 ℃ Humidity: < 85% RH |
| Power Supply | 1 9V battery |
| Dimensions (diameter x height) | 56x200mm |
| Weight | 900G (including battery) |
Duban DB10-VC260 Vibrator calibrator Packing list
Vibration meter calibrator X1, screw driver X1, instruction manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
