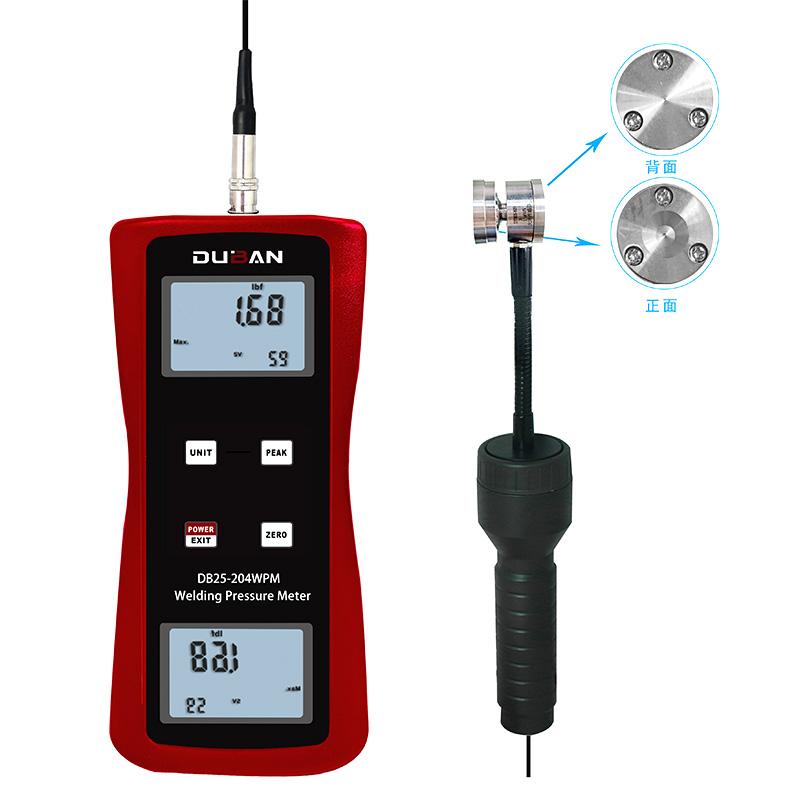

DUBAN DB25-204WPM 10KN Handheld Welding Pressure Gauge Measurement range +/- 9800N
Force value range +/- 9800N, high-precision high resolution, blue backlit LCD display, N, KG, LB three Measurement units, support peak hold function.
Duban
DB25-204WPM 10KN
-
Huicheng DSC-600C/-10~600 Differential Scanning Calorimeter -10 ℃~ 600 ℃
$ 4843.00 -
SMART SENSOR AR924M Underground Metal Detector LCD Display/Sound Prompt
$ 170.00 -
CHINA NBC-1220S Vertical Plug-in Life Tester, Terminal Harness Tester
$ 3452.00 -
DZDR-AS transient method thermal conductivity Tester, transient plane heat source method
Login -
LANDTEK FM-100V10 Portable Flow velocity measuring instrument, Open channel Flow velocity Flow rate measurement
$ 677.00
Introduction
The welding pressure Tester adopts a microcomputer digital display instrument. It has input terminals for dynamometer (pressure) and load cell (weight) strain gauges. It has been used in new static and dynamic measurement systems such as materials testing machines, printing machines, test benches and automation equipment. With a measurement accuracy of ≤±0.02%, it can be used in quality inspection systems for the first or second batch of samples for general calibration. The measurement system consists of an analog section, in particular a long-term stable analog part, a frequency feeder that reduces the thermal drift of the system and a 16-bit A/D converter that guarantees an internal division of 65.000.
Features
High precision and high resolution.
Digital display, no parallax.
N (Newton), kg (kg), lb (pound), three units of measurement can be selected, and they are converted to each other.
Peak hold function. Hold the peak display until it is manually cleared.
Can be powered by alkaline batteries; It can also be connected to a 5V DC power supply.
Product structure diagram
Structural function description
4-1 power interface: It can be connected to a 5V DC power supply to achieve DC power supply.
4-2 Sensor Plug: Used to connect the main unit to the sensor.
4-3 Display: Used to display measurement readings, units of measurement, prompts during operation, etc.
4-4 Operation button area: All the operation buttons are distributed, and the key operation of the entire instrument is completed here.
4-5 Battery box on the back: The place where the battery is installed to achieve battery power.
4-6 Handle: For hand grip and easy handling.
4-7 Measurement sensor: It can convert the received force information into an electrical signal and transmit it to the host computer.
Duban DB25-204WPM 10KN Welding stress testing instrumentSpecifications
| LIST | VALUE |
|---|---|
| Display type | digital display |
| Measurement range | ±1000kgf、±9800N、±2200Lbf |
| Precision | Level 0.2 |
| error of indication | +/- 0.2% FS (range) +/- 1 digital peak |
| Power Supply | 2 AA batteries, or 5V DC Power Supply |
| Dimension | Main body: 199mmx76mmx37mm, probe: 268mmx φ 44.6mm |
| resolution | 0.01kgf (<100kgf) 、0.1kgf (≥100kgf)；0.1N (<1000N)、1N (≥1000N)；0.1Lbf (<1000Lbf) 、1Lbf (≥1000Lbf) |
| unit | kgf, N, Lbf |
| Measured value | Peak, instantaneous value |
| Display | LCD screen |
| Backlight | Blue Backlight |
| allowable load | 150% FS (when it exceeds 110% FS, there will be a beep alarm) |
| Operating temperature | 0°C~40°C |
| Operating humidity | < 80% |
| Operating Environment | No source and corrosion medium around |
Duban DB25-204WPM 10KN Welding stress testing instrument Packing list
Electronic tension meter X1, Sensors (M12 screw hole) X1, two rings X1, instruction manual X1, portable case X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
