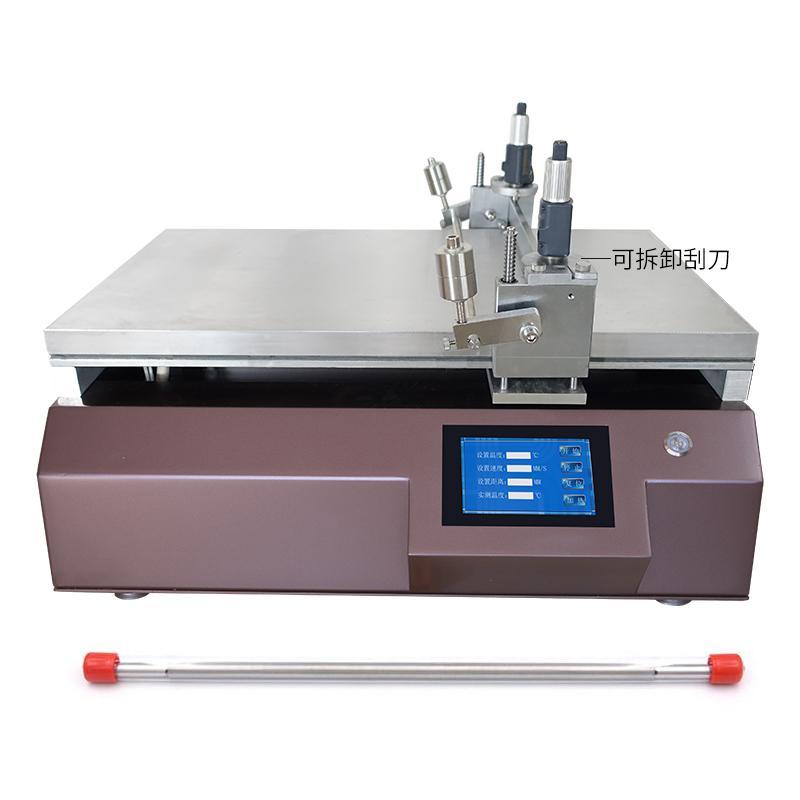

CHINA metering rod & drawdown blade Laboratory Film Applicator TBJ-X2-DJ14 Coating size 750 * 1100mm
Wire rod + detachable drawdown blade + vacuum adsorption three-in-one, effective coating width 750 * 1100mm, using high flat aluminum alloy baseplate, touch screen operation, drawdown blade removable replacement and easy cleaning.
zy
TBJ-X2-DJ14
TBJ-X2-DJ4
-
CHINA TBJ-X1-DJ9 Automatic drawdown blade vacuum adsorption Film Applicator with feeding system, width 300 * 600mm
$ 6600.00 -
TBJ-X3-DJ35 Floor Type Multifunctional Film Applicator bar + drawdown blade + vacuum adsorption + baseplate heating + upper heating + automatic feeding system 140 * 120cm
$ 26498.00 -
China weight bar Lab Film Applicator
$ 459.00 -
HuiNuo TM3300/20 Miniature Multifunctional Automatic Film Applicator Effective Area 30 * 20cm
$ 5978.00 -
CHINA TBJ-B2-DJ15 Bar & drawdown blade Desktop Film Applicator Coating size 500 * 1000mm
$ 7844.00
Overview
Wire rod scraper laboratory coating machine TBJ-X2-DJ14 is a customized vacuum adsorption coating machine with increased coating size, with an effective area of 750*1100mm, using wire rod and detachable doctor blade coating method.
Since the main factors affecting the coating film are the coating speed and the pressure applied to the coater, the coating applied by hand is often inconsistent, especially between different people, which makes it difficult to compare the test results between the samples. Our automatic Film Applicator is designed to allow the operator to easily apply a precise wet film on different substrates, which greatly improves the reproducibility of the coating film.
Optional
|
|
|
zy TBJ-X2-DJ14 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Coating method | Wire rod + adjustable drawdown blade |
| Drawdown blade type | Removable drawdown blade, easy to clean and replace |
| Drawdown blade Accuracy | +/- 3% mm (removable drawdown blade) |
| Drawdown blade thickness range | 0.001-10Mm drawdown blade can be lifted and lowered |
| Coating speed | 5-200Mm/s (< 5mm/s can be customized) |
| Spreader distance control | The number can be set arbitrarily within the range of 1-1100mm |
| vacuum aperture | Φ1.2mm |
| Vacuum hole spacing | 20*20mm |
| Vacuum pump size | 380*180*280mm |
| Wire rod application width | 750mm |
| Wire Rod Coating Thickness Range | 1-571.5 μm (Spreader thickness determined according to rod model) |
| Spreader Accuracy | ±0.003mm |
| Host Power Supply | 220V 50Hz |
| speed control | Infinitely variable speed |
| Coating table material | aluminum alloy |
| Substrate clamping method | Vacuum adsorption |
| Control mode | Touch screen control |
| Optional Accessories | Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |
| customizable function | Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader |
zy TBJ-X2-DJ14 Automatic Film Applicator Packing list
Film Applicator X1, External vacuum pump X1, doctor blade X1, imported wire rod X1, product manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
