Factory Rdc-01/500clcs Soaking coil drying air-cooled slitting machineOverview
Specifications
Comments
FAQs

Rdc-01/500clcs

Soaking coil drying air-cooled slitting machine

Dip coating, the process is: unwinding → dipping → drying → chilling down → correction → traction → cross-cutting, effective application width 500mm, melamine dipped paper experiment.

Introduction

Rdc-01/500clcsThe immersion type coil drying and air-cooled slitting machine is mainly suitable for the process flow of melamine impregnated paper.

Equipment technology

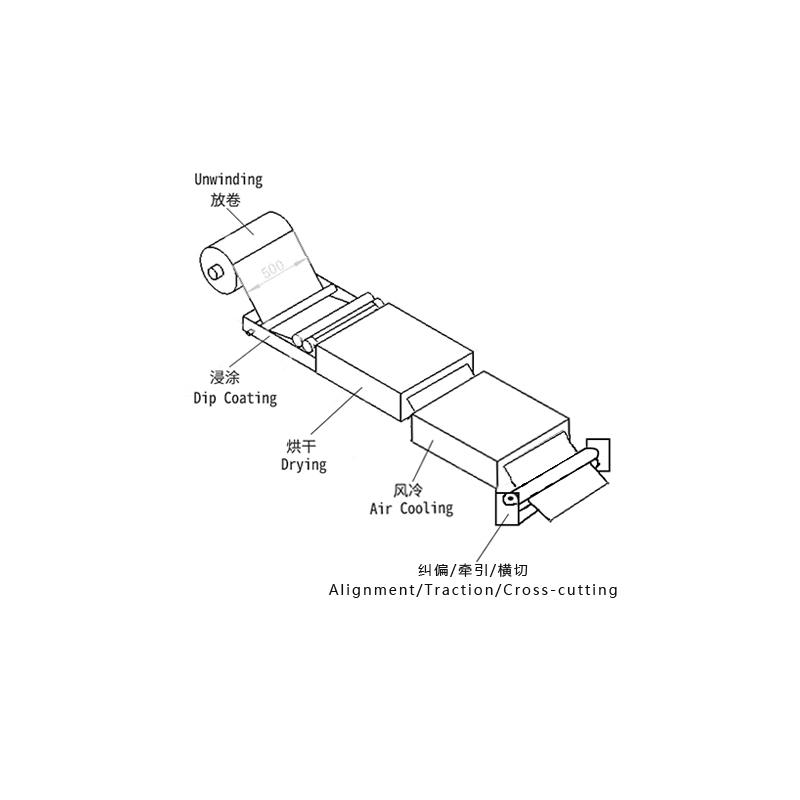

Unwinding→ impregnation→ drying→ cooling→ deviation correction→ traction → cross-cutting(Effective coating width 500mm)

The main part is configured

(1) Unwinding unit (1 group in total)

Structural features:

Type: single station

Effective unwinding width: 500mm

Effective unwinding diameter: ≤φ400mm

Unwinding shaft: 1 piece of 3" (Φ76mm) inflatable shaft (overhanging structure)

Unwinding tension control: automatic tension control, magnetic particle brake, tension controller

Specifications:

The main configuration of unwinding:

Magnetic Particle Brake:

Tension Controller:

Inflatable shaft: 3"/cantilever type (winding part)

Factory Rdc-01/500clcs Soaking coil drying air-cooled slitting machineSpecifications

LIST	VALUE
main substrate	Plain base paper or printing decorative paper
glue	Mixture of melamine formaldehyde Resin and urea formaldehyde Resin
Spreader moisture	Adjustable according to the process (formed)
Coating method	soak
Coating size	Max.500mm
substrate	Less than 500mm
Roll surface width	500mm
Mechanical speed	1.2M/min (0.1~ 1m/min production speed, depending on the process) The speed can be adjusted slowly
unwinding diameter	≤ φ 400mm (paper core 3 ")
winding diameter	≤ φ 500mm (paper core 3 ")
Heating drying method	External infrared heating, centrifugal fan hot air circulation
temperature control	50~150 ℃ +/- 3 ℃ (maximum 160 ℃ in the intermediate temperature zone)
Reel the edges neatly	±3.0mm
Total Installed Power	About 40kW (Power required for electric heating about 35kW)
Equipment external Dimensions	(L x W x H) According to process changes and final design drawings
Teflon roller	4 pieces (installed in front of the Spreader head)
Power Supply	Three-phase five-wire 380V 50Hz
Unwinding Unit - Type	Single station
Unroll Unit - Effective Unroll Width	500mm
Unwinding Unit - Effective Unwinding Diameter	≤Φ400mm
Unwinding Unit - Unwinding Scroll	3 " (φ 76mm) 1 piece of inflatable shaft (suspended wall structure)
Unwinding Unit - Unwinding Tension Control	Automatic tension control, magnetic particle brake, tension Controller
Front Traction Unit - Steel Roller	Φ42x500mm
Front Traction Unit - Motor	SEND/0.75KW (servo control)
Chilling down device	air-cooled
Cutting device	Cross-cutting knife

Factory Rdc-01/500clcs Soaking coil drying air-cooled slitting machine Packing list

Host x1, water bath dip coating module x1, drying module x1, air-cooled module x1, slitting device x1, rewinding device x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
