JINGKELIAN KTQ-250 (316) adjustable laboratory Film Applicator 316 stainless steel material application width 250mm
Adjustable, wet film thickness 0~3500μm, application width 250mm, accuracy +/- 2μm, material stainless steel, size 120 * 115 * 105mm
JingKeLian
KTQ-250（316）
-
TRUIT TR 3004/80/4 Wet Film Applicator 25/50/75/100μm
$ 183.00 -
TRUIT TR 3008/60/3 Film Applicator 25/50/75/100μm
$ 169.00 -
HuiNuo KTQ-80 Adjustable Preparation Film Applicator Micrometer Film Applicator
$ 366.00 -
CHINA Double Sided Applicator QTG Experimental Film Spreader 175/200μm
$ 156.00 -
JINGKELIAN SZQ 5/10/15/20 4-sided Applicator film thickness 5/10/15/20μm
$ 141.00
Overview of the KTQ Adjustable Film Applicator
JinKeLian adjustable Film Applicator is divided into different according to the width of the coatingKTQ-I、KTQ-II、KTQ-III、KTQ-IV 4 and other models, the coating width is 50mm, 100mm, 150mm, 200mm, etc。 The coating accuracy of the KTQ-I/II/III/IV adjustable Film Applicator is ±2μm, and the coating thickness range can be adjusted freely in the range of 0~3500μm, and the gap of the scraper can be adjusted every 10 microns.
KTQ Adjustable Film Applicator Application
The adjustable applicator adjusts the lower blade up and down to control the gap, i.e., the thickness of the final coating, by adjusting the two differentiators above the applicator.

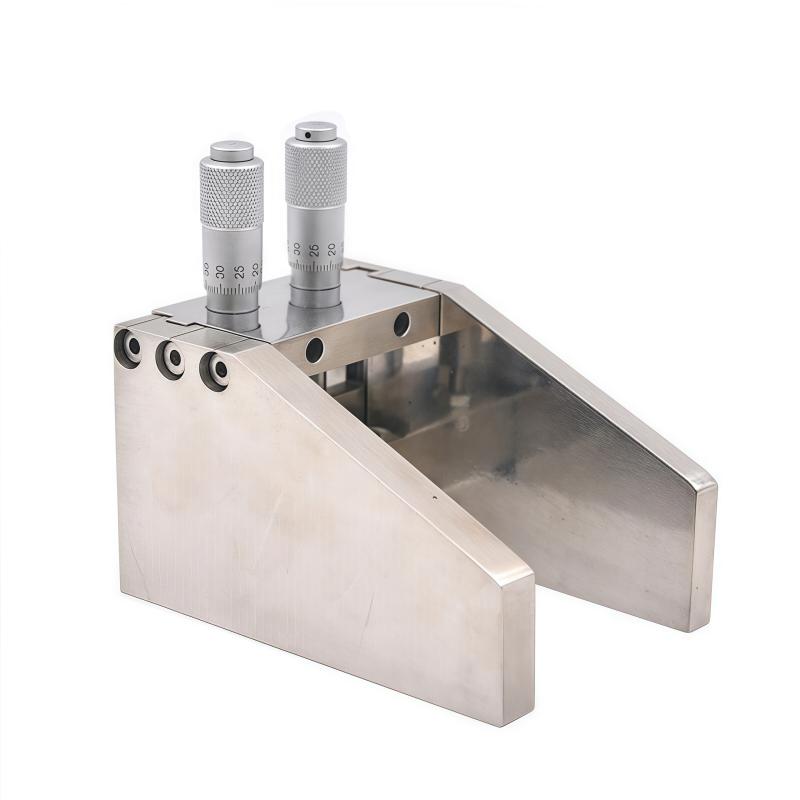

Actual picture of KTQ adjustable Film Applicator
JingKeLian KTQ-250（316） Adjustable Coating ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| type | adjustable |
| WFT | 0~3500μm |
| application width | 200mm |
| Accuracy | ±2μm |
| material | stainless steel |
| Dimension | 120*115*105mm |
| Net Weight | 450g |
JingKeLian KTQ-250（316） Adjustable Coating Applicator Packing list
Adjustable coating applicator x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
