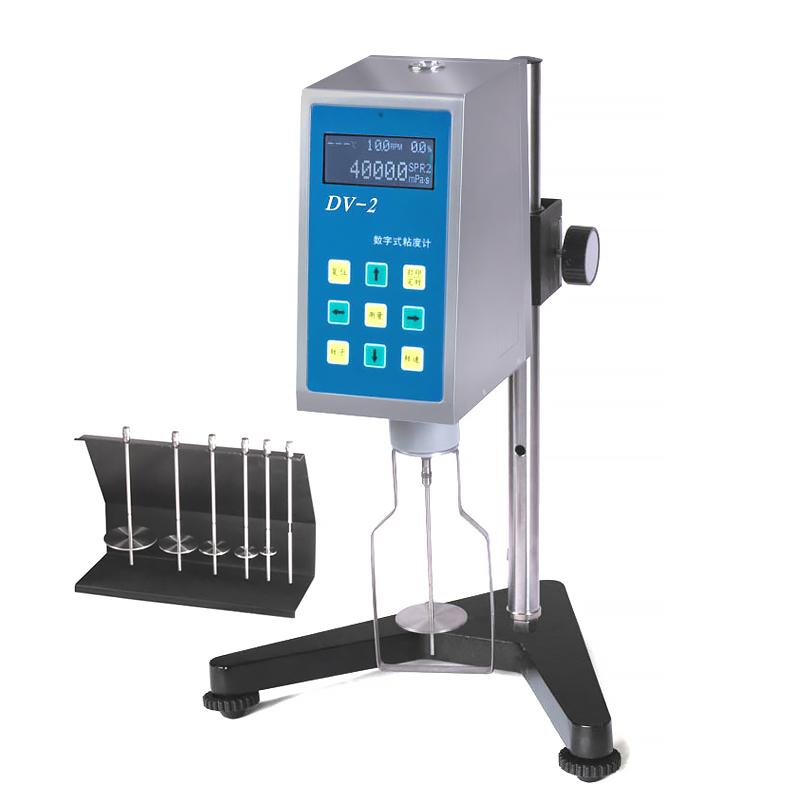

        HuiNuo HBDV-2 Digital Rotational ViscoMeter

        HUINUO HBDV-2 Digital Rotational Viscometer 32 million mPa · s 200rpm

        Display mode: Digital display, Measurement range 320~320000000mPa · s, Rotor specifications R2 #, R3 #, R4 #, R5 #, R6 #, R7 #, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S.

        Brand
        SKU: NB047565
        China HuiNuo
        Stock
        Loading…
        Price
        $ 1869.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          HuiNuoLOGO

          HuiNuo shopSE

          Information
          Datasheet RFQ Contract Video Catalog Manual
          What else did others buy
          Genuinegoods

          • HuiNuo HBDV-2 Digital Rotational ViscoMeterOverview

          • Specifications
          • Comments
          • FAQs
          HBDV-2
          Digital Rotational ViscoMeter
          • HUINUO HBDV-2 Digital Rotational Viscometer 32 million mPa · s 200rpm

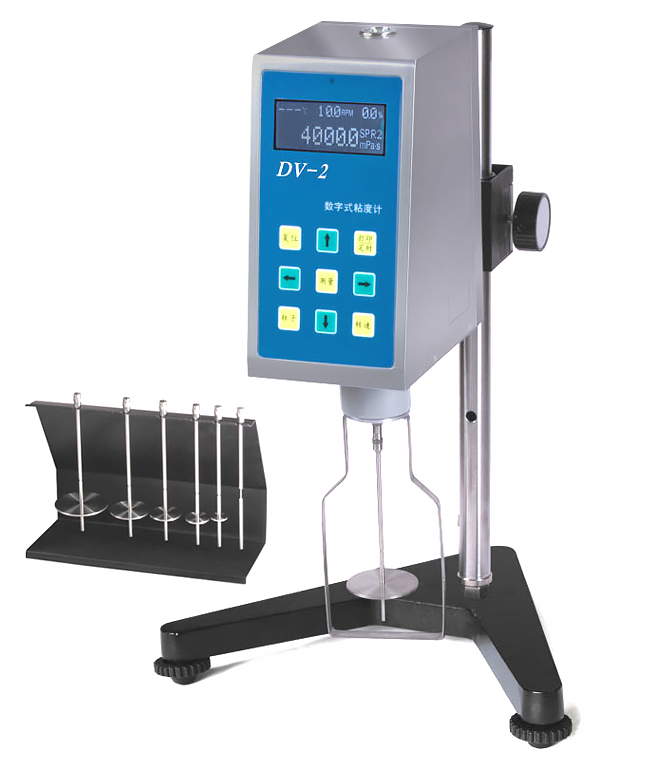

          • HUINUO HBDV-2 Digital Rotational Viscometer 32 million mPa · s 200rpm Figure 1
          • HUINUO HBDV-2 Digital Rotational Viscometer 32 million mPa · s 200rpm Figure 2
          Display mode: Digital display, Measurement range 320~320000000mPa · s, Rotor specifications R2 #, R3 #, R4 #, R5 #, R6 #, R7 #, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S.

          Introduction

          The LCD screen of the HBDV-2 digital display rotary viscometer can display viscosity, shear rate, shear stress, speed, temperature, percentage meter torque, rotor number and the maximum viscosity value that can be measured by the selected rotor at the current speed. It is a digital rotary viscometer with a range of 320~320,000,000 mPa · seconds.



          VS

          HuiNuo HBDV-2 Digital Rotational ViscoMeterSpecifications

          LIST VALUE
          Display mode digital display
          Measurement range 320~320000000mPa·s
          Rotor specification R2#、 R3#、R4#、R5#、R6#、R7#
          reproducibility ±0.5%F.S
          Measurement Accuracy ±1%F.S
          Power supply Voltage Dedicated power adapter (input 100~240V 50~60Hz)
          Rotor speed 0.1~200rpm
          Display information Viscosity, shear rate, shear stress, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed
          Rotation speed Control mode CVT

          HuiNuo HBDV-2 Digital Rotational ViscoMeter Packing list

          Host X1, protection frame X1, rotor X1 (sleeve), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, RTD temperature sensor X1, RS232 standard output interface X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          Measuring asphalt viscosity requires a Viscometer with heating function. Is this suitable?
          [A]
          HBDV-2 is suitable for asphalt viscosity measurement. It can be equipped with a dedicated temperature-controlled heater to precisely control the temperature of asphalt samples and ensure accurate viscosity measurement. Its high torque design is particularly suitable for high viscosity samples, and the maximum range of 320 million mPa · s is sufficient to meet the viscosity testing requirements of high temperature asphalt.
          [Q]
          We need to connect a computer to automatically record data. Does this Viscometer support it?
          [A]
          Yes. HBDV-2 can be equipped with optional data collection software, which can automatically collect and save viscosity data after connecting to the computer through USB, and can also compare and analyze historical data. This is particularly convenient for quality control that requires long-term monitoring of viscosity changes, eliminating the trouble of manual recording.
          [Q]
          I want to measure the viscosity of grease, is HBDV-2 appropriate?
          [A]
          The HBDV-2 Viscometer is specially designed for the measurement of grease fluids. Its swirl/spin design can accurately measure tack resistance, and the ultra-wide range of 320~ 320,000mPa · s can cover various oil viscosity ranges from thin to thick. The LCD screen can also display the viscosity value and shear rate in real time, which is convenient for you to read the data directly.
          [Q]
          I need to measure high temperature asphalt viscosity, what function should I choose?
          [A]
          It is recommended to choose a temperature-controlled heating device! HBDV-2 itself supports temperature display, and can precisely control the sample temperature after matching the heating device, which is specially used for the measurement of the apparent viscosity of high-temperature fluids such as asphalt and hot-melt adhesives. Its high-precision stepper motor ensures that the Rotation speed remains stable in high temperature environments, and the data reproducibility reaches +/- 0.5%, which fully meets the requirements of asphalt testing standards.
