Huino, a small number of sample adapters, rotors
Rotor specifications 21 #, 27 #, 28 #, 29 #, capacity 10~20mL, suitable for JINGTIAN brand (NDJ-5S, NDJ-8S, SNB-1, SNB-2, SNB-3, SNB-AI, LVDV-1, RVDV-1, HBDV-1, LVDV-2, RVDV-2, HBDV-2).
HuiNuo
rotor
-
HUINUO NDJ-5S digital display Rotational Viscometer 100,000 CP
$ 452.00 -
PUSHEN NDJ-9S Rotational Viscometer measurement range 10-6000000 mPa.s
$ 698.00 -
NIRUN DV data collection and programmable analysis software
$ 538.00 -
NIRUN DRV-1T dilute Rotational Viscometer anti-static shell 5 inch touch screen
$ 2139.00 -
NIRUN NTV-T2HA Viscosity and temperature control machine 100-6.6 Mmpa.s
$ 5708.00
Introduction

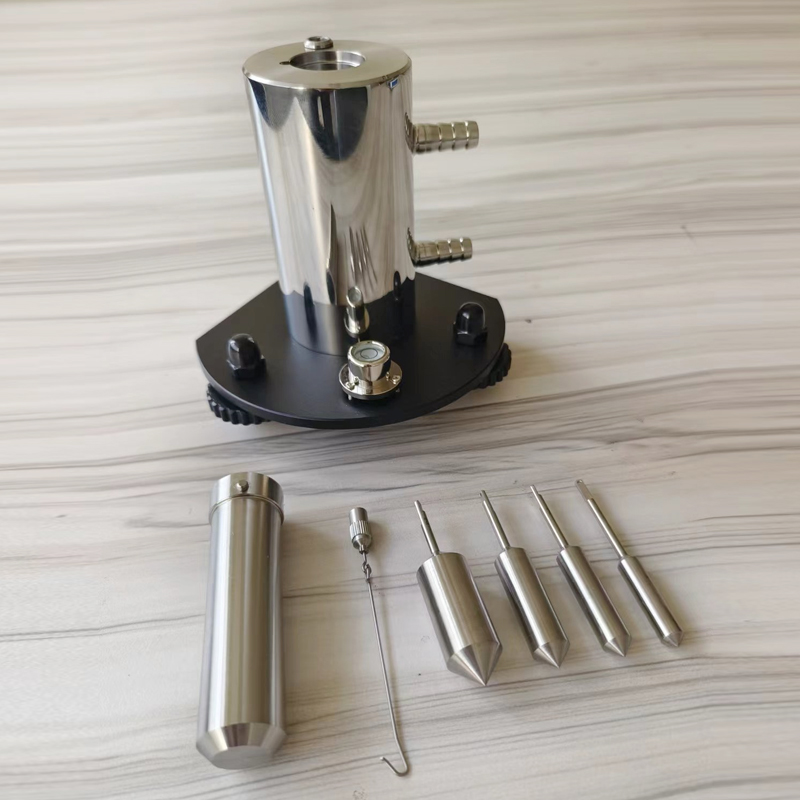

【Small sample adapter】
。 It is equipped with 21, 27, 28 and 29 rotors
。 The sample volume is small, only 10~20mL, especially suitable for valuable sample testing
。 A thermostat connected to an external circulation function controls the temperature of the sample to be measured
。 Easy to disassemble and easy to clean
The measurement range when used with different types of viscometers is shown in the table below
| Viscometer model | Measuring range (mPa ·) |
| NDJ-5S | 17～16,667 |
| NDJ-8S | 17～333,333 |
| SNB-1 | 17～100,000 |
| SNB-2 | 10～1,000,000 |
| SNB-3 | 100～10,000,000 |
| SNB-AI | 50～10,000,000 |
| LVDV-1 | 10～1,000,000 |
| RVDV-1 | 100～10,000,000 |
| HBDV-1 | 800～80,000,000 |
| LVDV-2 | 5～1,000,000 |
| RVDV-2 | 50～10,000,000 |
| HBDV-2 | 400～80,000,000 |

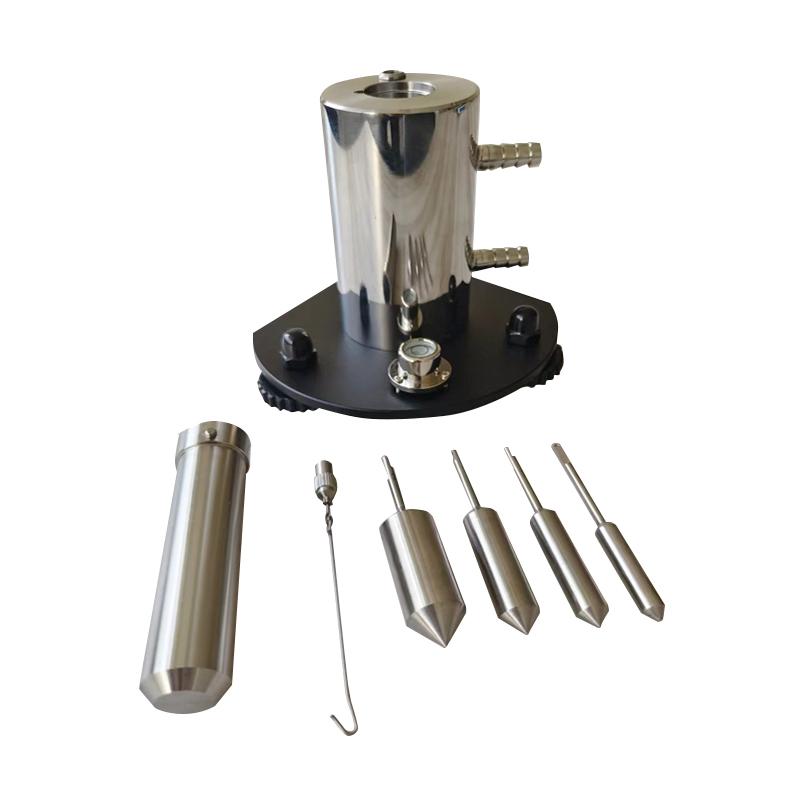

HuiNuo rotor Small number of sample adaptersSpecifications
| LIST | VALUE |
|---|---|
| Rotor specification | 21#、 27#、28#、29# |
| Capacity | 10~20mL |
| Applicable instrument | JINGTIAN brand (NDJ-5S, NDJ-8S, SNB-1, SNB-2, SNB-3, SNB-AI, LVDV-1, RVDV-1, HBDV-1, LVDV-2, RVDV-2, HBDV-2) |
HuiNuo rotor Small number of sample adapters Packing list
Rotor X4, thermostatic water jacket X1, stainless steel measuringflask X1, hook X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
