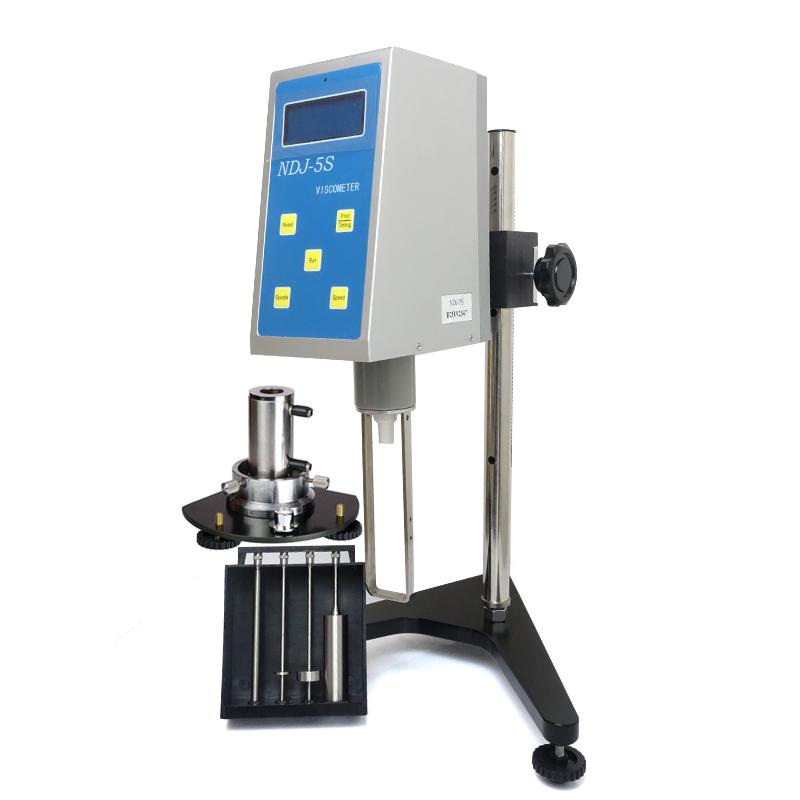

HUINUO NDJ-5S Laboratory Rotational Viscometer with a small number of sample adapters
Measurement range 20~100000mPa · s, can display viscosity, Rotation speed, temperature and other parameters, with 4 Rotation speed, Measurement accuracy of +/- 1%, equipped with a small number of sample adapters, capacity 10~20mL.
HuiNuo
NDJ-5S+SSA
NDJ-5S
NDJ-5S+L0
NDJ-5S RTD
-
NIRUN NTV-P2RV touch screen Rotational Viscometer Rotor Viscosity-Meter 40M mPa · s
$ 3938.00 -
FANGRUI XHT double-layer glass Viscometer matching thermostatic cup, optional accessories
$ 141.00 -
TQC DV2206 Viscosity calibrated oil N350 500ml
$ 430.00 -
HUINUO NDJ-8ST Digital Rotational Viscometer 3 mode measurement with temperature probe 2 million cP
$ 441.00 -
NIRUN 50 series, standard solution (not sold separately)
$ 145.00
Introduction

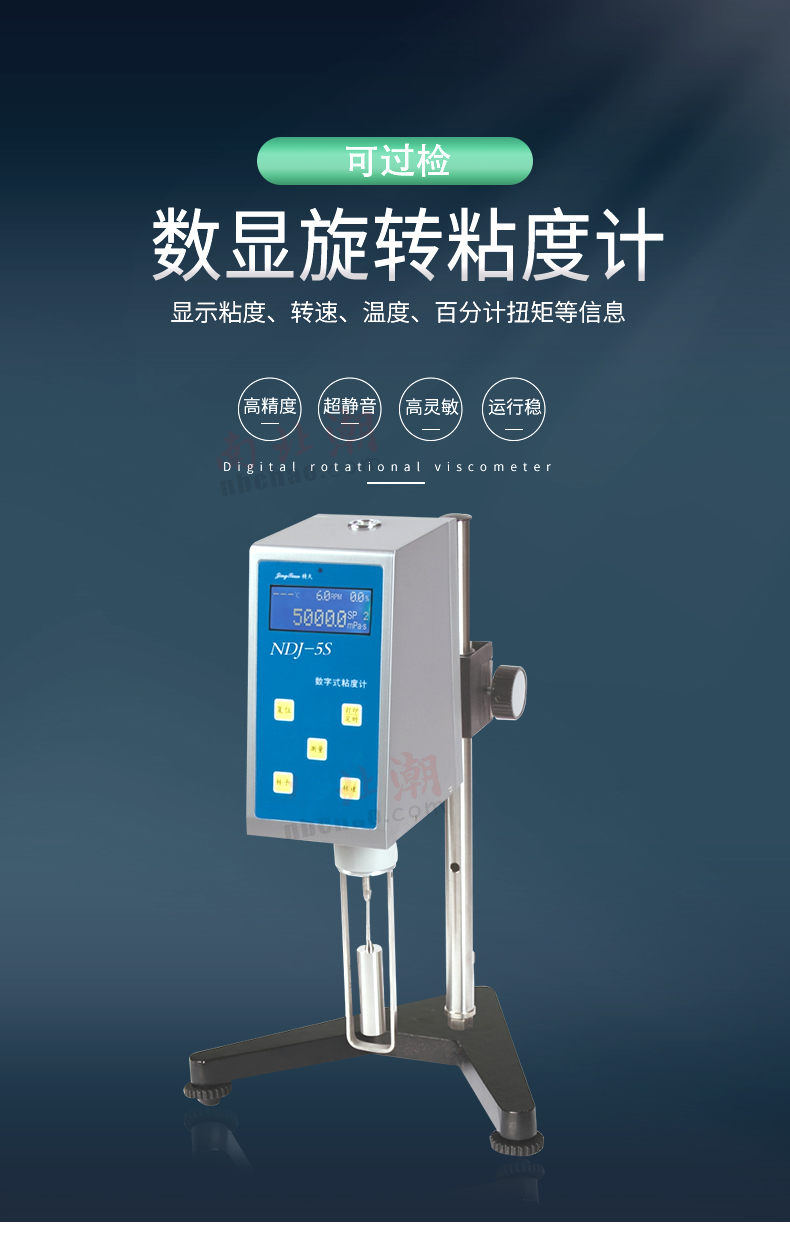

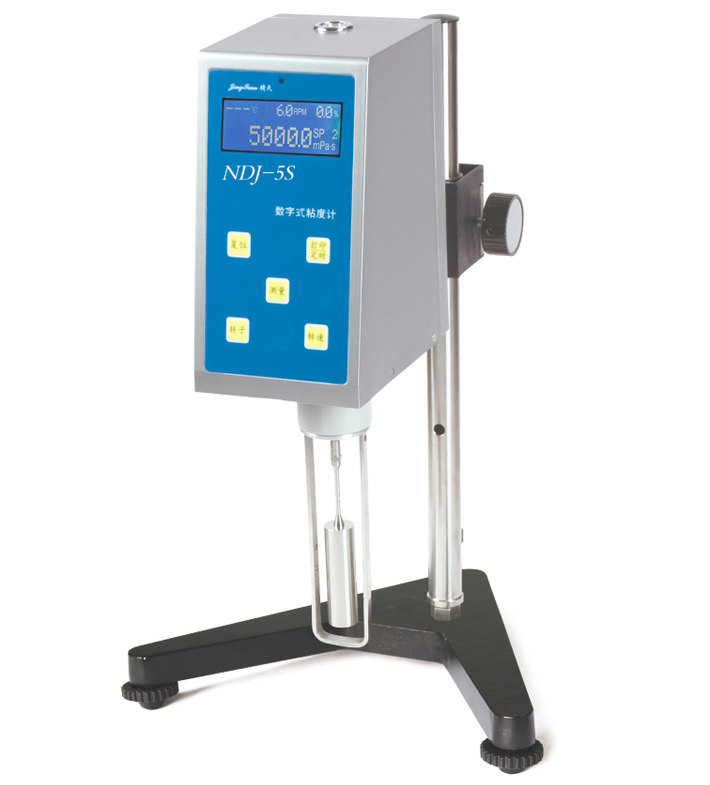

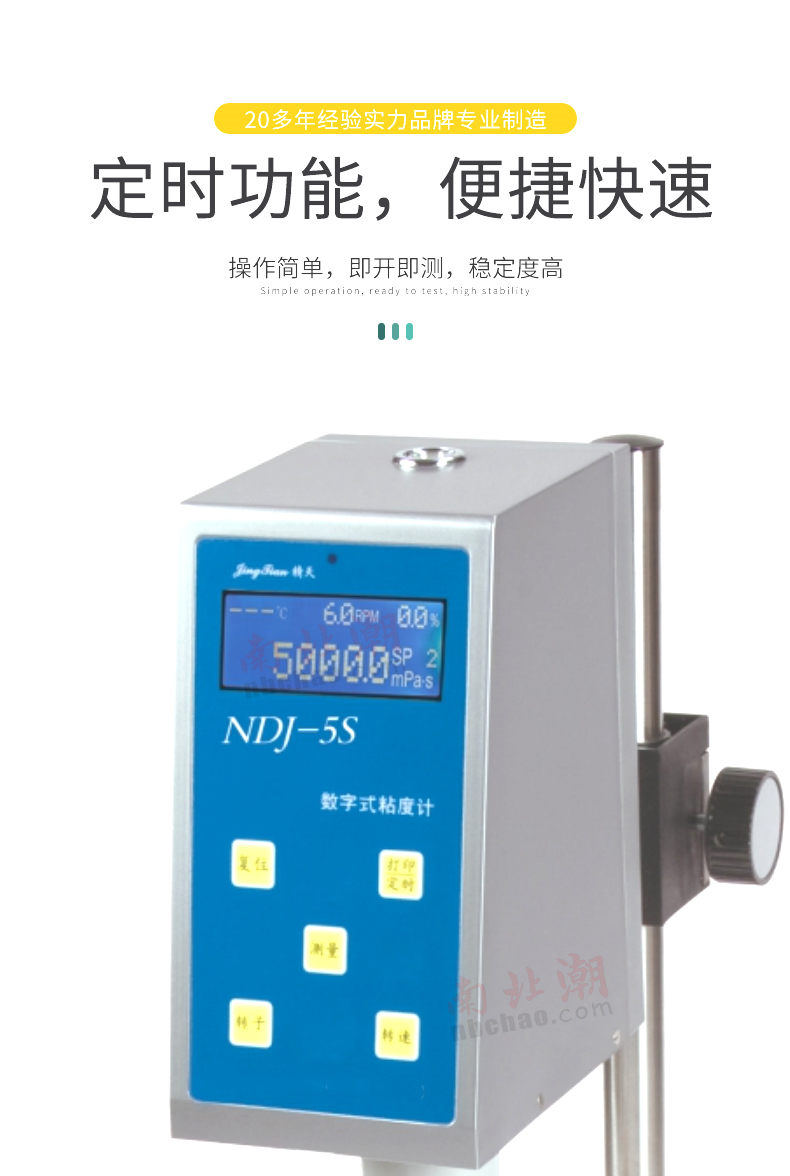

The LCD screen of NDJ-5S digital display rotary viscometer can display viscosity, rotational speed, temperature, percentmeter torque, rotor number and the maximum viscosity value that can be measured by the selected rotor at the current speed. It is a range of 20~100,000Millipascal · second digital rotary viscometer.
Introduction to small sample adapters
It is equipped with 21, 27, 28 and 29 rotors
The sample volume is small, only 10~20mL, especially suitable for valuable sample testing
A thermostat connected to an external circulation function controls the temperature of the sample to be measured
Easy to disassemble and easy to clean
Viscometer structure diagram
HuiNuo NDJ-5S+SSA Digital Rotational ViscometerSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | 20~100000mPa·s |
| Rotor specification | 1 piece each of rotors L1, L2, L3, L4, 21 #, 27 #, 28 #, and 29 # |
| reproducibility | ±0.5%F.S |
| Measurement Accuracy | ±1%F.S |
| Power supply Voltage | Dedicated power adapter (input 100~240V 50~60Hz) |
| Rotor speed | 6/12/30/60rpm |
| Display information | Viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed |
| Capacity | 10~20mL |
| Rotation speed Control mode | Rotation speed |
HuiNuo NDJ-5S+SSA Digital Rotational Viscometer Packing list
Host X1, protective frame X1, rotor X1 (set), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, a small number of sample adapters X1 (set)
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
