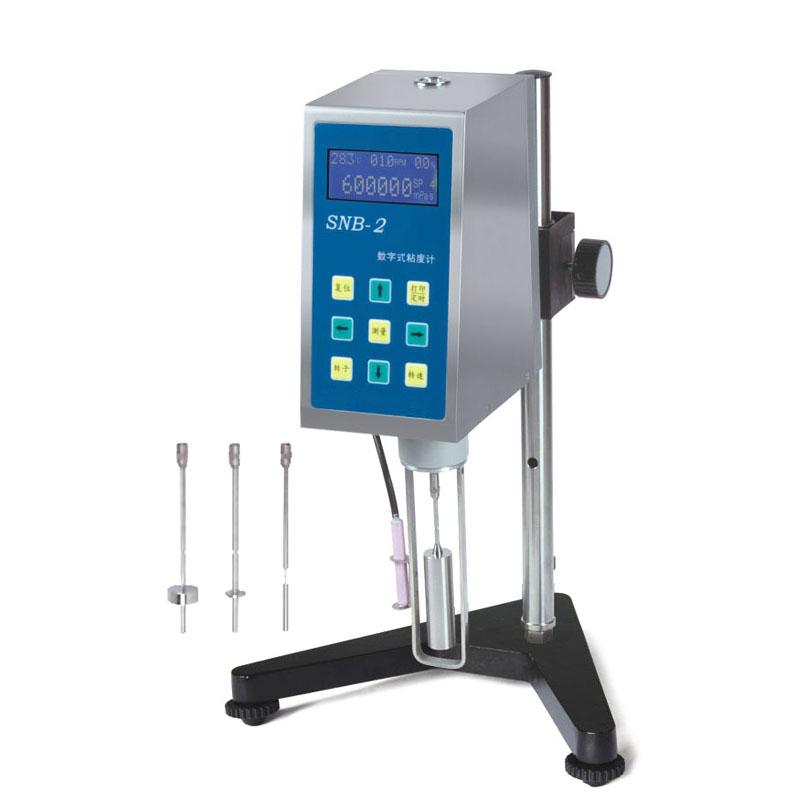

HuiNuo SNB-2+SSA Digital Rotational Viscometer

HUINUO SNB-2 digital display Rotational Viscometer with a small number of sample adapters

Measurement range 12~ 6000000mPa · s, rotor specifications L1, L2, L3, L4, 21 #, 27 #, 28 #, 29 #rotors each, reproducibility +/- 0.5% F. S, Measurement accuracy +/- 1% F. S, suitable for valuable sample testing.

Brand

SKU: NB047599

HuiNuo

Model

Price

$ 1415.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

HuiNuo shopSE

Information

Datasheet RFQ Contract

What else did others buy

NIRUN DV data collection and programmable analysis software

$ 534.00
FANGRUI NDJ-9S Digital Viscometer with ULR Ultra Low Viscosity Adapter

$ 484.00
Fungilab Viscolead Adv H Rotational Viscometer 106 million cP

Login
HUINUO SNB-AI digital Rotational Viscometer Viscosimeter with L0 rotor

$ 1367.00
CNSHP NDJ-8S Digital Rotational Viscometer

$ 484.00

Genuinegoods

HuiNuo SNB-2+SSA Digital Rotational ViscometerOverview
Specifications
Comments
FAQs

SNB-2+SSA

Digital Rotational Viscometer

Introduction

The LCD screen of the SNB-2 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentmeter torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor. It is a digital rotary viscometer with a range of 12~6,000,000 mPa · seconds.

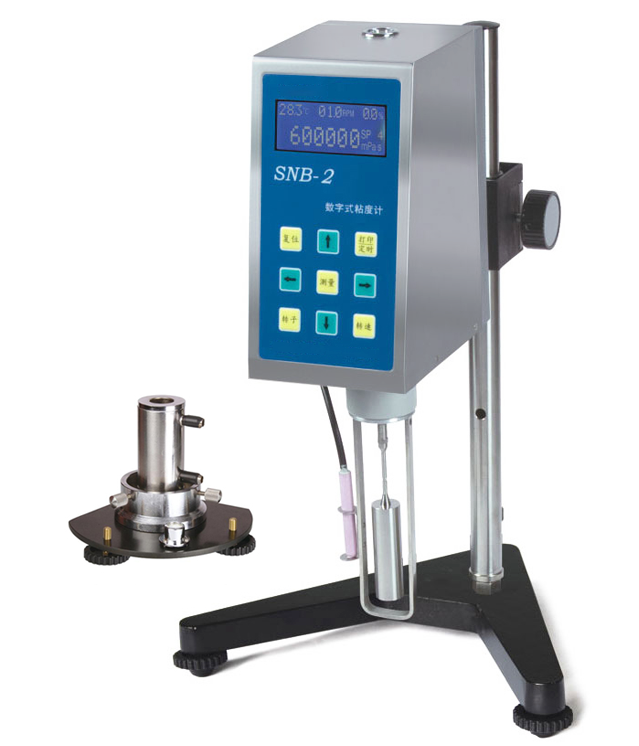

Introduction to small sample adapters

It is equipped with 21, 27, 28 and 29 rotors
The sample volume is small, only 10~20mL, especially suitable for valuable sample testing
A thermostat connected to an external circulation function controls the temperature of the sample to be measured
Easy to disassemble and easy to clean

Detail Figure 2 of HUINUO SNB-2+SSA Digital Display Rotary Viscometer

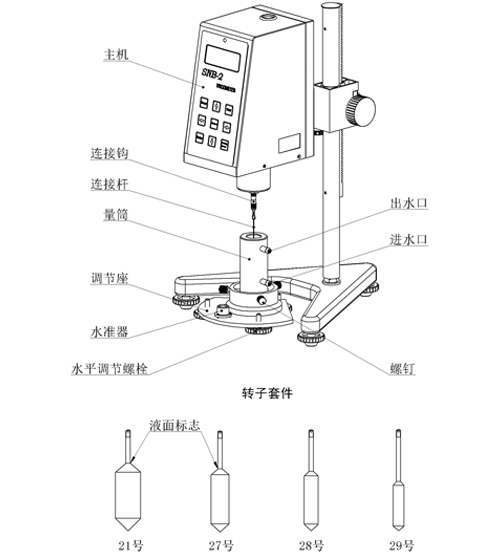

Viscometer structure diagram

Detail Figure 3 of HUINUO SNB-2+SSA Digital Display Rotary Viscometer

HuiNuo SNB-2+SSA Digital Rotational ViscometerSpecifications

LIST	VALUE
Measurement range	12~6000000mPa·s
Rotor specification	1 piece each of rotors L1, L2, L3, L4, 21 #, 27 #, 28 #, and 29 #
reproducibility	±0.5%F.S
Measurement Accuracy	±1%F.S
Power supply Voltage	Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed	0.1~99.9rpm
Display information	Viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed
Capacity	10~20mL
Rotation speed Control mode	CVT

HuiNuo SNB-2+SSA Digital Rotational Viscometer Packing list

Host X1, protective frame X1, rotor X1 (set), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, a small number of sample adapters X1 (set)

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

What industries is this Viscometer suitable for?

[A]

It is widely used in chemical, coatings, inks, pharmaceuticals and other industries, especially in the research and development and quality control of sample temperature. Because the temperature of the measured sample can be precisely controlled after connecting the Thermostatic bath to ensure the accuracy of the measurement results.

[Q]

We need to measure samples with different viscosities. Can the range of this instrument be satisfied?

[A]

Yes! The SNB-2 has a range of 12 to 6,000,000 mPa · s, is equipped with a variety of rotor options, and the continuously variable speed design can flexibly adjust the Rotation speed, whether it is a low viscosity liquid or a high viscosity paste can be accurately measured.
