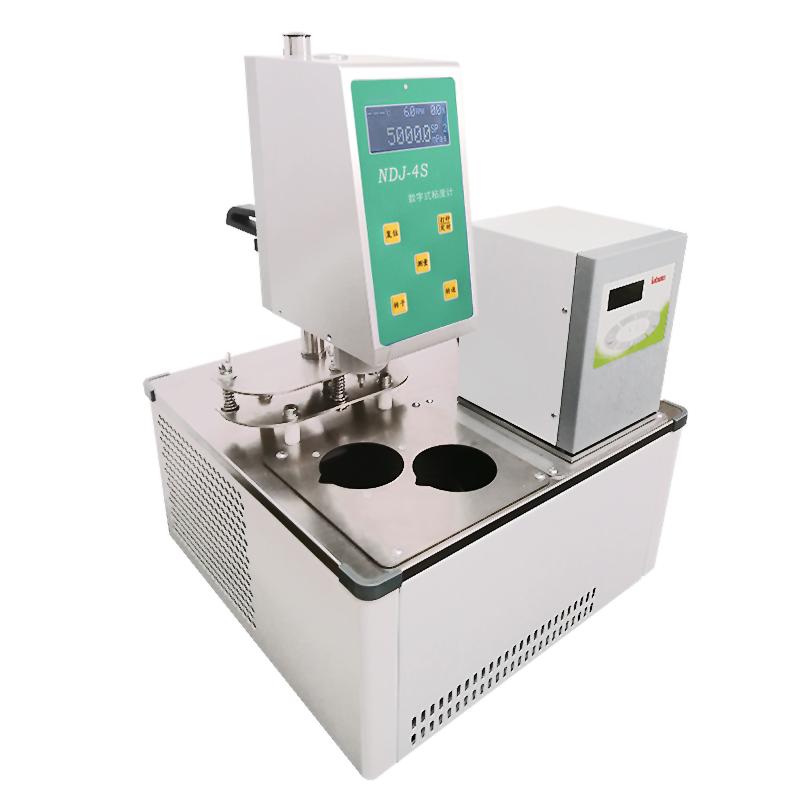

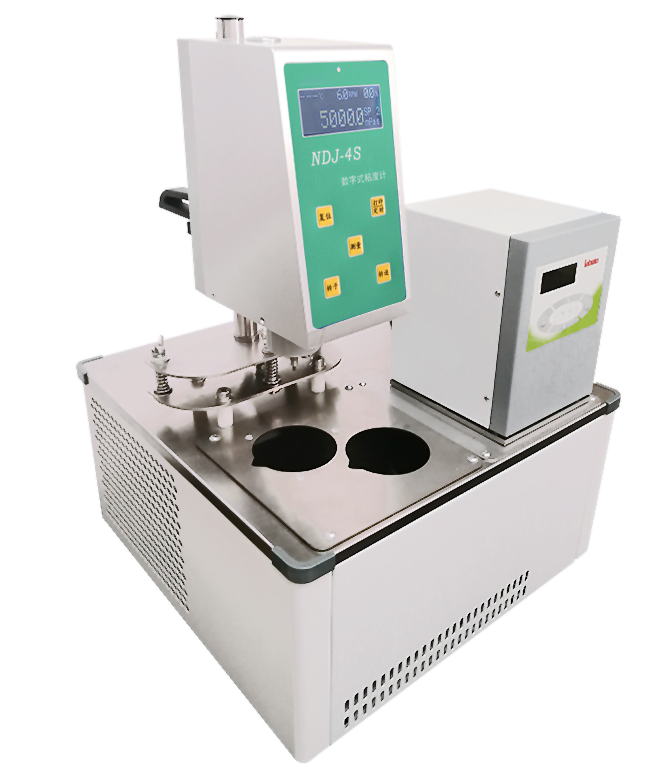

HUINUO NDJ-4S temperature control Rotational Viscometer Viscosity-Meter with Thermostatic Bath can heat the sample

Introduction

The LCD screen of NDJ-4S digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentmeter torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor. It is a digital rotary viscometer with a range of 20 ~ 2,000,000 mPa · seconds.

Thermostatic Bath features

• Compact appearance, small size, very convenient to place on the desktop;

• With external temperature control and programmable function, it can realize the automatic heating, constant temperature and cooling test of the sample during the test process [standardType】

• When used with a viscometer, the operation part of the high-low temperature thermostat circulator and the operation part of the viscometer are oriented to the operatorThe operation and display of the instrument are very convenient, and the test process and data are clear at a glance;

• Two insulation pipes are standard to facilitate the user to carry out the constant temperature viscosity test of the external circulation Water Bath jacket;

• It has both heating and cooling functions, and can easily achieve precise control of any temperature between -10°C and 150°C;

• The low-level buoy provides a low-level alarm to prevent dry burning, and can be reminded by light and sound at the same time.

• Maintenance-free pressure/suction pump with high pump power, the pump can agitate the bath in the tank horizontally and vertically at the same timeMixing, the temperature uniformity in the tank is good, and it can be used for internal circulation and external circulation;

• The pump pressure and flow rate automatically adapt to the external load, and the international standard M16x1 connection nut can be configured with different fittings to meet different external loadsthe need for circulating pipe diameter;

• The parts in contact with liquid or vapor are made of high-performance stainless steel and high-performance plastic, which are corrosion-resistant and non-scale-free;

• Fluorine-free and environmentally friendly refrigerant R134a;

• A variety of operation modes are available, and unexpected power failure can be automatically recovered;

• Optional intelligent control function: a variety of interfaces (RS485, RS232) to achieve remote communication, control the start and stop of the equipment;

• Selectable 0-10V or 4-20mA analog signal input, which can be used for external intelligent equipment to control the start and stop of the instrument;

• With all kinds of rotary viscometers produced by our company, viscosity measurement is more convenient and accurate.

NDJ-4S host X1, LC-1008 Thermostatic bath X1, protection frame X1, rotor X1 (sleeve), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
