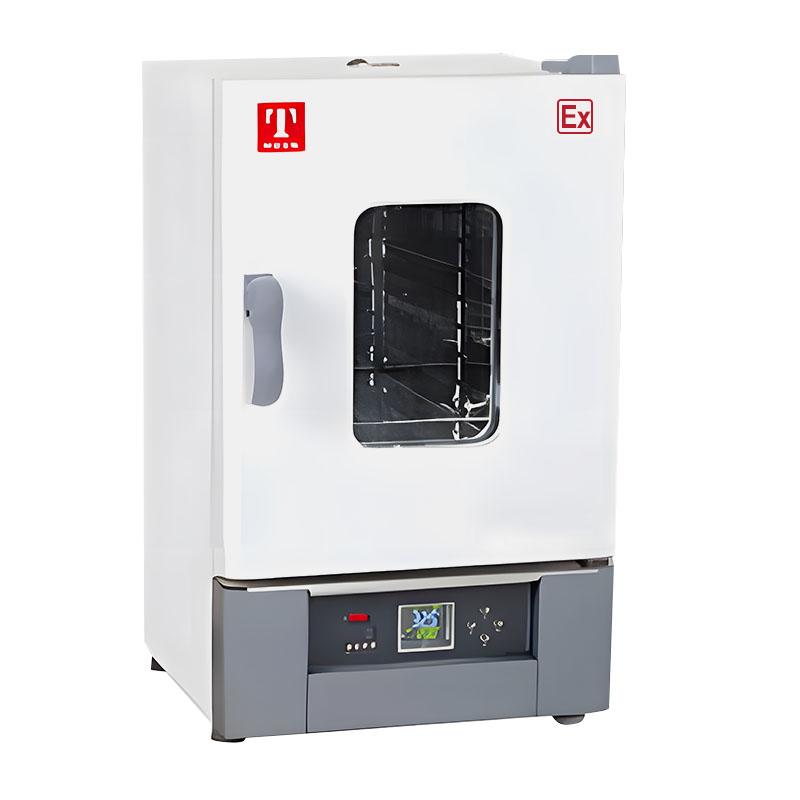

TAISITE TEX-65LG explosion-proof Forced Air Drying Oven 65L/1.6KW

Mode Double duct forced convection, Temperature range AT + 10-300 ℃, Temperature resolution 0.1 ℃, Temperature Fluctuation +/- 1C, Temperature distribution accuracy +/- 2.5%, content product 65L.

Brand

SKU: NB047633

TaiSiTe

Model

TEX-65LG

Get Quote

TaiSiTe

Information

Datasheet

What else did others buy

Genuinegoods

TaiSiTe TEX-65LG Explosion-proof Forced Air Drying OvenOverview
Specifications
Comments
FAQs

TEX-65LG

Explosion-proof Forced Air Drying Oven

Mode Double duct forced convection, Temperature range AT + 10-300 ℃, Temperature resolution 0.1 ℃, Temperature Fluctuation +/- 1C, Temperature distribution accuracy +/- 2.5%, content product 65L.

Features

The box body adopts flameproof type, the equipment and electrical appliances adopt overall explosion-proof technology, explosion-proof control box, centralized protection, and prevent high temperature and
Leakage of unsafe factors such as static electricity and sparks.
This equipment is mainly composed of drying box, explosion-proof heating system, explosion-proof electrical control and other parts
The inner tank of the box is made of mirror stainless steel, and the outer shell is made of high-quality steel plate, which is beautiful and generous, and the inner tank is easy to clean.
Vertical double air duct air jacket, turbine centrifugal forced air supply, uniform temperature.
Pull-out tray divider, easy to take and quick to connect.
LCD multi-data full-screen operation display, power failure memory.
Convenient operation, fixed value operation, timed operation, automatic stop, scheduled start.
It is heated by explosion-proof 304 stainless steel heating tube.
Explosion-proof flexible connecting pipes are used for exposed connecting wires to isolate electrostatic sparks and temperature leakage to ensure safety.
Overlift alarm, menu lock, overlift prevention.

Application

It is used in petroleum, chemical, medical, pharmaceutical, scientific research, laboratory and other related fields.

Enforce the standard

GB/T30435-2013

Explosion-proof rating

ExdembIIBT4Gb

TaiSiTe TEX-65LG Explosion-proof Forced Air Drying OvenSpecifications

LIST	VALUE
way	Double duct forced convection
Temperature range	AT+10-300℃
Temperature Resolution	0.1℃
Temperature Fluctuation	±1C
Temperature Uniformity	±2.5%
Interior	Mirror stainless steel plate
exterior	Cold rolled steel plate, surface resistant painting
heat insulation material	aluminum silicate fiber
heater	Stainless steel heating tube (explosion-proof qualification)
Rated power	1.6KW
Exhaust Port	Inner diameter 28mm "1, top
Temperature Control mode	Liquid display dual PID control
Temperature setting method	Tap the explosion-proof four-button setting.
Temperature representation	Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display
timer	0~9999 minutes (or hours), Timer function can be selected (none, thermostatic Timer, running Timer)
Operational Features	Fixed-value operation, regular operation, automatic stop, scheduled start
Program Mode	optional
External connection protection	Adopt explosion-proof flexible connecting pipe set (explosion-proof qualification)
Sensors	Explosion-proof armored PT100 (explosion-proof qualification)
Additional features	Deviation correction, menu button lock, power failure memory, overlift preventer
Explosion-proof level	Ex de mb IIB T4 Gb
Inner Dimensions (width * depth * height mm)	400360450
Dimensions (Width "Depth" Height mm)	535°490*820
Packing size (width * depth mm)	970°620*960
Internal Volume	65L
Shelf load bearing	15kg
Shelf layer	The ninth floor.
Shelf spacing	35mm
Power supply (50/60Hz) rated current	AC220V/7.2A
Net Weight/Gross Weight kg	43/49
Shelf	2 pieces
Shelf	4 pieces
Optional Accessories	Explosion-proof barrier, explosion-proof hinge, explosion-proof pressure relief door, explosion-proof seven-inch touch screen instrument (with Linear dispersion, program function), explosion-proof mouse

TaiSiTe TEX-65LG Explosion-proof Forced Air Drying Oven Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
