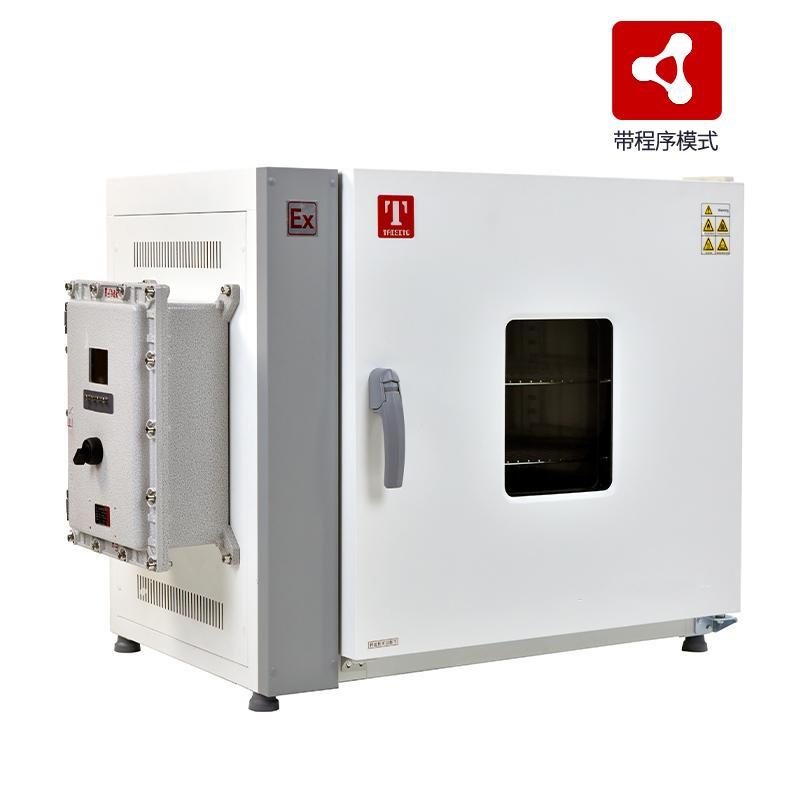

TAISITE TEX-225WG explosion-proof Forced Air Drying Oven 225L/6KW

Temperature range RT + 10~250 ℃, Temperature resolution 0.1 ℃, Temperature Fluctuation +/- 1 ℃, Temperature distribution accuracy +/- 2.5%, Inner stainless steel plate, Outer Cold rolled steel plate, Inner product 225L, Rated power 6KW.

Brand

SKU: NB047640

TaiSiTe

Model

TEX-225WG

Get Quote

TaiSiTe

Information

Datasheet

What else did others buy

Kenton 101-4 Dial-Type electric Forced Air Drying Oven, galvanized tank inner tank 300 ℃/640L

$ 692.00
YIHENG PH-030A Drying Oven/Incubator stainless steel liner input power 850W

$ 532.00
Kenton 101-2 Dial-Type electric Forced Air Drying Oven, galvanized tank inner tank 300 ℃/136L

$ 309.00
RONGHUA DHG-9240A Electric thermostatic Drying Oven

$ 694.00
Kenton DHG-9040 LCD electric thermostatic drying oven with independent temperature limiter

$ 480.00

Genuinegoods

TaiSiTe TEX-225WG Explosion-proof Forced Air Drying OvenOverview
Specifications
Comments
FAQs

TEX-225WG

Explosion-proof Forced Air Drying Oven

Features

The box body adopts flameproof type, the equipment and electrical appliances adopt the overall explosion-proof technology, and the explosion-proof control box is centralized protection to prevent the leakage of unsafe factors such as high temperature and static electricity and sparks.
The inner tank of this equipment is mainly composed of drying box, explosion-proof heating system, explosion-proof electrical control and other parts, and the inner tank is made of brushed stainless steel, and the shell is made of high-quality steel plate, which is beautiful and generous, and the inner tank is easy to clean.
Side air duct air jacket, centrifugal forced air supply, uniform temperature.
Pull-out tray partition for easy sampling and quick connection (225 type is filamentous partition).
LCD multi-data full-screen operation display, power failure memory, power failure compensation.
Convenient operation, fixed value operation, timed operation, automatic stop.
It is heated by explosion-proof 304 stainless steel heating tube.
Explosion-proof flexible connecting pipes are used for exposed connecting wires to isolate electrostatic sparks and temperature leakage to ensure safety.
Overlift alarm, menu lock, overlift prevention.

Application

It is used in petroleum, chemical, medical, pharmaceutical, scientific research, laboratory and other related fields.

Enforce the standard

GB/T30435-2013

Explosion-proof rating

ExdembIIBT4Gb

TaiSiTe TEX-225WG Explosion-proof Forced Air Drying OvenSpecifications

LIST	VALUE
way	Forced circulation of crosswind duct
Temperature range	RT+10~250℃
Temperature Resolution	0.1℃
Temperature Fluctuation	±1 ℃
Temperature Uniformity	±2.5%
Interior	stainless steel plate
exterior	Cold rolled steel plate, surface resistant painting
heat insulation material	aluminum silicate fiber
heater	Stainless steel heating tube (explosion-proof qualification)
Rated power	4.0KW
Exhaust Port	Inner diameter 28mm * 1; top test hole
Temperature Control mode	LCD dual PID control
Temperature setting method	Tap the explosion-proof four-button setting.
Temperature representation	Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display
timer	0~9999 minutes (or hours), Timer function can be selected (none, thermostatic Timer, running Timer)
Operational Features	Fixed-value operation, regular operation, automatic stop, scheduled start
Program Mode	optional
External connection protection	Explosion-proof armored PT100 (explosion-proof qualification)
Sensors	Adopt explosion-proof flexible connecting pipe set (with explosion-proof qualification)
Additional features	Deviation correction, menu button lock, power failure memory, overlift preventer
Explosion-proof level	Ex de mb JB T4 Gh
Inner Dimensions (width "depth * height)	600500750mm
Dimensions (width * depth * height)	1015685995mm
Packing size (width * depth * height)	12208021156mm
Internal Volume	225L
Shelf load bearing	15kg
Shelf layer	The ninth floor.
Shelf spacing	25mm
Power supply (50/60Hz) rated current	AC220V/18.2A
Net Weight/Gross Weight	81/110kg
Shelf	2 pieces
Shelf	4 pieces
Optional Accessories	Explosion-proof barrier, explosion-proof hinge, explosion-proof pressure relief door, explosion-proof seven-inch touch screen instrument (with Linear dispersion, program function), explosion-proof mouse

TaiSiTe TEX-225WG Explosion-proof Forced Air Drying Oven Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
