JINGKELIAN QNB No.4 ISO Flow Cup outflow time 30s ≤ t ≤ 100s diameter 4mm

Viscosity range 35~ 135cSt, outflow time 30~100s, flow hole diameter 4mm, flow hole diameter error +/- 0.01mm, cup body material stainless steel, filter material stainless steel, Applicable standard ISO 2432-1993, GB/T6753.4-86

Brand

SKU: NB004766

JingKeLian

Model

QNB No. 4

Price

$ 138.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

JingKeLian shopSE

Information

Datasheet RFQ Contract Video Manual

What else did others buy

TRUIT TR 1002/5 Ford Viscosity Cup outflow aperture φ5.20mm

$ 125.00
Japan TOYO TOYO 2 #inks Viscosity Cup Coating Viscosity Cup Zahn Zahn Cup

$ 183.00
TQC No. 2 Ford Ford Viscosity Cup ASTM2 Viscosity Cup 2.53mm

$ 452.00
Ander LND-2 (4 #) No. 4 ISO cup with bracket Viscosity range 35~ 135cst

$ 189.00
TRUIT TR 1002/3 FORD Viscosity Cup outflow aperture φ3.40mm

$ 125.00

Genuinegoods

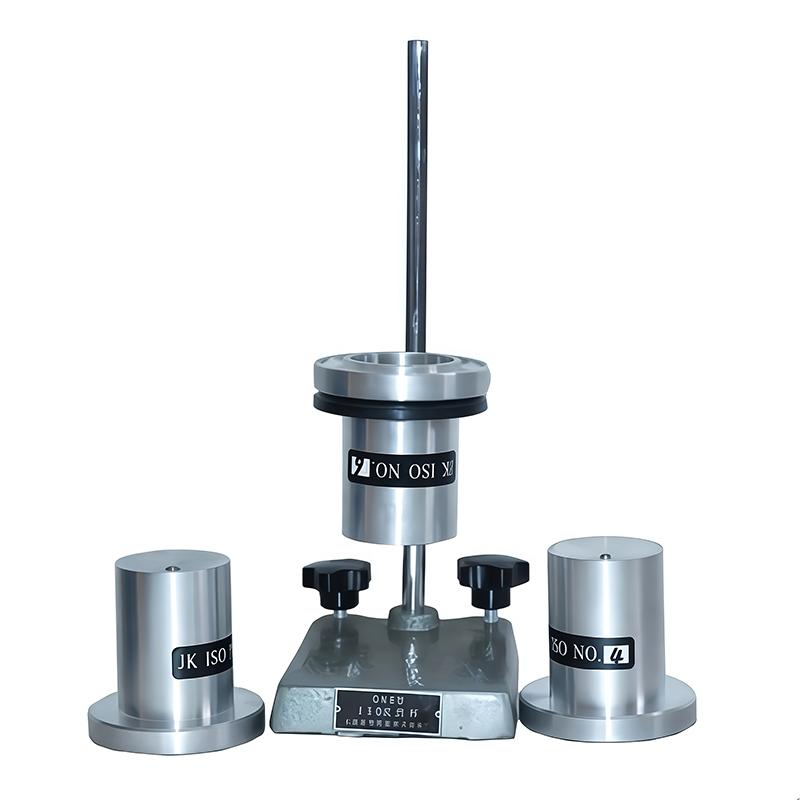

JingKeLian QNB No. 4 ISO Flow CupOverview
Specifications
Comments
FAQs

QNB No. 4

ISO Flow Cup

Introduction of ISO outFlow Cup

JinKeLian QNB ISO outFlow Cup has three types of outflow Viscosity Cups, QNB No. 3, No. 4 and No. 6. This ISO outFlow Cup is developed by integrating the relevant provisions of the national standard and the international standard. It adopts stainless steel material. QNB No. 3/No. 4/No. 6 ISO outFlow Cup is used to test the outflow time of Newtonian or near-Newtonian liquids, and the applicable test outflow time range is 30s~100s.

application standard

1. International standard ISO2432-1993 "Determination of outflow time with outFlow Cup for paints and varnishes" (fourth edition)

2. National standard GB/T6753.4-86 "Determination of coating flow time - ISO Flow Cup method"

Specifications

model	Outlet diameter (mm)	Viscosity range (mm²/s)
QNB No. 3	3.0± 0.01mm	7-40 mm²/s
QNB No. 4	4.0± 0.01mm	35-135 mm²/s
QNB No. 6	6.0± 0.01mm	134-685 mm²/s
Other parameters
Executive standard	GB/T6753.4-86, 1ISO243-1993
outflow time	30s≤t≤100s

Introduction

Details of JinKeLian QNB No. 4 ISO outFlow Cup 1

JingKeLian QNB No. 4 ISO Flow CupSpecifications

LIST	VALUE
Viscosity range	35~135cSt
outflow time	30~100s
Flow hole diameter	4mm
Flow hole diameter error	±0.01mm
Cup body material	stainless steel
Filter material	stainless steel
Applicable standard	ISO 2432-1993、GB/T6753.4-86
Certificate	without

JingKeLian QNB No. 4 ISO Flow Cup Packing list

Flow cup x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Epoxy resin Coating viscosity measurement with what material Viscometer is better?

[A]

Measurement Coating viscosity generally can choose viscosity cup or Viscometer, viscosity cup mainly measures relative viscosity, Viscometer measures dynamic viscosity. In general, in addition to thixotropic Coating, Coatings under 150s can be coated with 4 cups, and Coatings under 20 can be coated with 1 cup. In addition, Yehui uses ISO flow cup to measure Newton-type liquid Coating viscosity, Stormer Viscometer to measure architectural coatings viscosity, and for all brush coatings, rotational viscometer or Cone and Plate Viscometer measurement can be used.

[Q]

Is this the ISO flow cup mentioned in JJG743?

[A]
