AMITTARI AW-20B Webster Hardness Tester Aluminum alloy, specimen thickness 0.6-8 inner diameter > 6
Applicable material aluminum alloy, Hardness range 25~ 110HRE, sample size thickness 0.6-8 inner diameter > 6mm, range 0~20HW, accuracy 0.5HW.
AMITTARI
AW-20B
AW-20A
AW-20
-
AMITTARI AW-20B + Webster Hardness Tester sample size 0.6-8 mm
$ 699.00 -
SMTMF MHRS-150 Touch screen digital display Rockwell Hardness Tester Initial test force 10kgf
Login -
DUBAN DB20-LX-NT Hardness pen/Newton pen
$ 337.00 -
AMITTARI AW-20B Webster Hardness Tester Aluminum alloy, specimen thickness 0.6-8 inner diameter > 6
$ 520.00 -
DUBAN DB20-LX-DW Wood surface Hardness Gauge
$ 371.00
The AW-20 series Webster Hardness Tester is an instrument that can quickly test the hardness of aluminum alloys in the field.Webster Hardness Tester is easy to use, one card is sufficient, and the hardness value is read directly. For fastTest the hardness of aluminum alloy profiles, tubes, plates, aluminum workpieces and other soft metals.
It is especially suitable for fast,Non-destructive, piece-by-piece conformity inspection.
peculiarity
Pressure needle: The pressure needle made by new materials and new processes has high hardness, long life and good interchangeability.
Pointer: A high-strength pointer that is not easy to bend and deform with long-term use or wrong operation.
Handle: Forged material, anodized upper handle, beautiful, wear-resistant, pollution-resistant.
Hardness block: The standard hardness block is tested by the standard hardness machine.
High quality: fine parts processing, precision machine assembly, strict quality inspection.
Good stability: the full degree point is stable, and the correction point is stable.
Series selection
| Model | Applicable Materials | Hardness range | Specimen size |
| AW-20 | Aluminum alloy | 25~110HRE | Thickness 0.6-6 inner diameter > 10mm |
| AW-20A | Thickness 0.6-13 inner diameter > 10mm | ||
| AW-20B | Thickness 0.6-8 inner diameter >6mm | ||
| AW-B75 | Hard or semi-rigid brass,Superduralumin alloy | 63~105HRF | Thickness 0.6-6 inner diameter > 10mm |
| AW-B75B | Thickness 0.6-8 inner diameter >6mm | ||
| AW-BB75 | Soft copper, copper | 18~100HRE | Thickness 0.6-6 inner diameter > 10mm |
| AW-BB75B | Thickness 0.6-8 inner diameter >6mm | ||
| AW-B92 | Cold-rolled steel plate, stainless steel | 50~92HRB | Thickness 0.6-6 inner diameter > 10mm |
Different types of needles

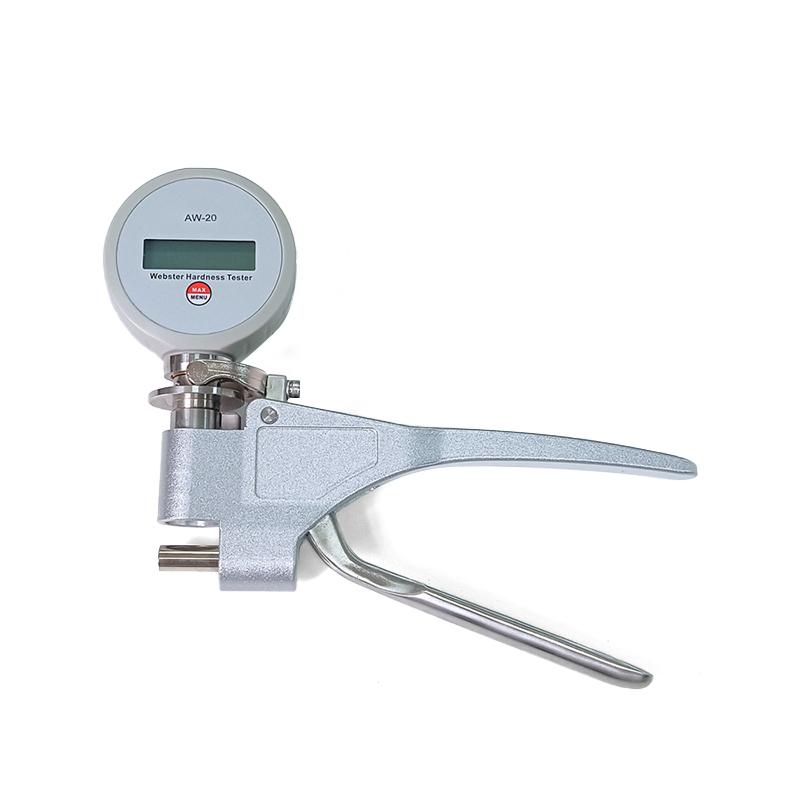

AMITTARI AW-20B Wechsler Hardness TesterSpecifications
| LIST | VALUE |
|---|---|
| Applicable materials | aluminum alloy |
| Hardness range | 25~110HRE |
| Specimen size | Thick 0.6-8 inner diameter > 6mm |
| range | 0~20HW |
| Accuracy | 0.5HW |
| size | 220*160*30mm |
| Battery | 2*1.5AAA |
AMITTARI AW-20B Wechsler Hardness Tester Packing list
Host X1, standard Wechsler Hardness block X1, spare pressure needle X1, special wrench X1, small screw driver X1, portable case X1, certificate X1, manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
