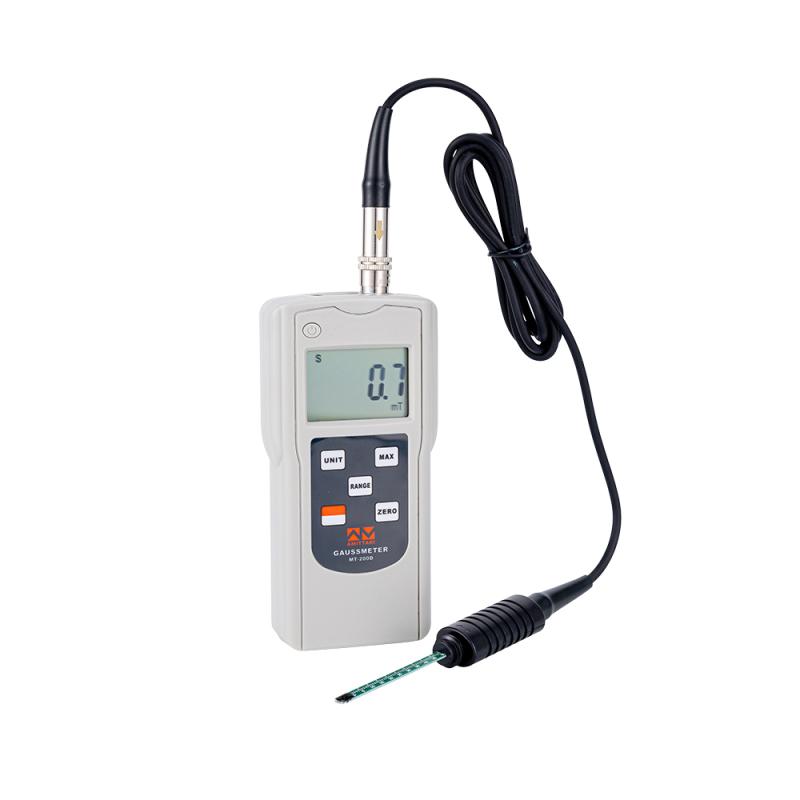

AMITTARI MT-200D Gaussian meter, magnetic field Measurement Instrument
High-precision measurement, automatic zero adjustment, peak hold and unit conversion functions, easy to operate, portable and lightweight, suitable for fast and accurate measurement of DC magnetic fields.
AMITTARI
MT-200D
-
YINUO YN-CP01 Sheet Former, diameter 200 drying non-drying optional
$ 12226.00 -
RONGHUA 1810-B quartz double pure water distillation, laboratory prepative secondary distillation
$ 718.00 -
KESIONOTS Encasement Clamping Force Tester KS-OTS-P28 Clamping Force Tester
$ 12711.00 -
YUZHOU MPJ-35 Metallographic sample grinding machine, diamond sanding needle stepless speed regulation
Login -
WAPT-II aluminum foil pinholing degree Tester
$ 538.00
Features
Easy to carry and wide range.
Push-button auto-zeroing.
It is easy to operate and the LCD display is clear.
There is a measured value/peak hold, MT/GS unit conversion.
200MT/2000MT range conversion, etc.
Operating Principle
This series of instruments uses sensors made based on the principle of the Hall effect, that is, Hall sensors. There are two types of sensors: horizontal and axial, which can be selected or equipped according to the user's needs; The circuit uses a low-drift amplifier and a high-stability power supply, which is controlled by a microcontroller and displays the measured values on a 4 1/2 LCD.
AMITTARI MT-200D gausoMeterSpecifications
| LIST | VALUE |
|---|---|
| Range | 0mT~200mT~2000mT |
| Precision | DC, 5% (measurement in uniform magnetic field) |
| measured magnetic field | DC magnetic field (static magnetic field) |
| Function Description | Peak hold function Gs (Gauss)/mT (millitesla) can be switched freely |
| DC polarity measurement | N table anode, S table cathode |
| Environmental temperature | 5℃~40℃ |
| Relative Humidity | 20% to 80% (undoubtedly exposed) |
| Power supply | Four AA batteries |
| Dimension | 140mm (L) *73mm (W) *30mm (H) |
| instrument Weight | 180g |
| Display mode | 41/2LCD |
| Display unit | mT/Gs |
| standard accessories | Host (one) |
AMITTARI MT-200D gausoMeter Packing list
Host X1, Hall Sensors X1, Portable Case X1, Certificate X1, Manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
