        zy TBJ-B2-DJ14 Automatic Film Applicator

        CHINA TBJ-B2-DJ14 metering rod & drawdown blade Floor type automatic feeding Film Applicator Coating size 600 * 1000mm

        Wire rod + drawdown blade Coating method, with automatic feeding function, floor structure, effective Spreader area 600 * 1000mm.

        Brand
        SKU: NB047827
        China zy
        Stock
        Loading…
        Price
        $ 16517.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          zyLOGO

          zy shopSE

          Information
          Datasheet RFQ Contract Video
          What else did others buy
          Genuinegoods

          • zy TBJ-B2-DJ14 Automatic Film ApplicatorOverview

          • Specifications
          • Comments
          • FAQs
          TBJ-B2-DJ14
          Automatic Film Applicator
          • CHINA TBJ-B2-DJ14 metering rod & drawdown blade Floor type automatic feeding Film Applicator Coating size 600 * 1000mm
          Wire rod + drawdown blade Coating method, with automatic feeding function, floor structure, effective Spreader area 600 * 1000mm.

          TBJ-B2-DJ14 floor-to-ceiling wire rod doctor blade coating machine is a fully automatic coating machine with an automatic feeding system. It adopts wire rod and doctor blade coating methods, with a coating width of 600 * 1000mm and a floor-to-ceiling structure design. It is suitable for cardboard, glass, plastic film, metal plate and other film proofing.

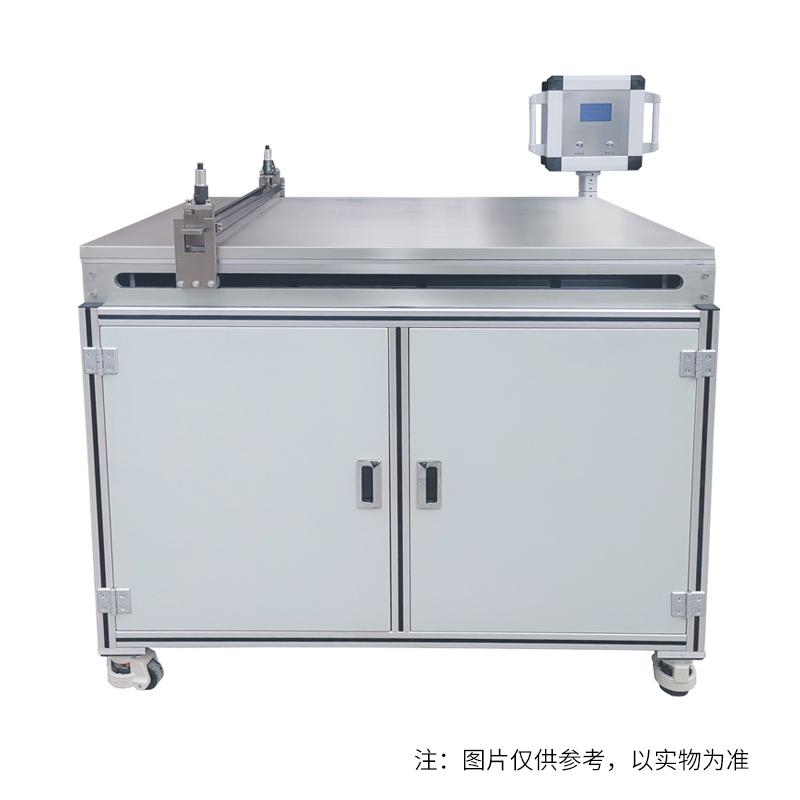

          CHINA TBJ-B2-DJ14 metering rod & drawdown blade Floor type automatic feeding Film Applicator Coating size 600 * 1000mm Figure 1

          VS

          zy TBJ-B2-DJ14 Automatic Film ApplicatorSpecifications

          LIST VALUE
          Drawdown blade Accuracy ±0.05mm
          Drawdown blade thickness range 0~10Mm drawdown blade can be lifted
          Coating speed 5~ 180Mm/s (< 5mm/s can be customized)
          Coating size 600*1000mm
          Appearance structure Floor type
          Coating rod specification Determine Spreader Thickness according to Wire Bar Model
          Host Power Supply 220V 50Hz
          speed control Infinitely variable speed
          Coating table material aluminum alloy
          Spreader Accuracy ±0.05mm
          customizable function Jet system device, UV solid inclusion device
          Speed regulation Accuracy 1mm/s
          Feeding principle Air source pressure flows out
          Feed Sport Mode Reciprocating linear motion
          Feeding back and forth traverse speed 2-150mm/s
          spit Volume Adjustable (by adjusting the air pressure and the running speed of the discharge port)
          Shaft transmission mode Timer belt
          Feeding system air source 0.6Mpa, can be connected to the trachea of φ 8 (self-equipped)
          Power Voltage of charging system 220V,50Hz
          Tank pressure Maximum withstand 8Mpa
          Material of feeding barrel 304 stainless steel with a wall thickness of 4mm
          Feeding bucket configuration Safety valve, pressure regulating valve, pressure gauge, discharge valve

          zy TBJ-B2-DJ14 Automatic Film Applicator Packing list

          Film Applicator X1, doctor blade X1, imported wire rod X1, automatic inking system x1, product manual X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
