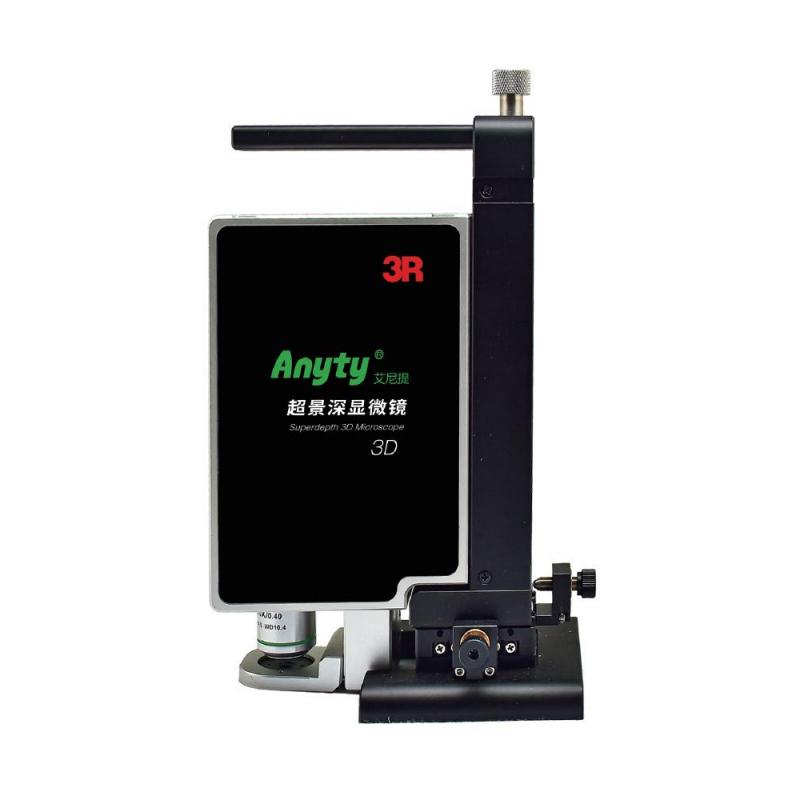

ANYTY 3R-YD3D1200S Super Depth of Field 3D Microscope Laboratory OpticalMicroscopy 600 times

Introduction

Integrated design, small size, easy to carry, no need for external power supply high-resolution optical lens,It can measure more than 1000 lines of anilox data. High-precision motorized micro-focusing, min acquisition image interval everyStep 0.2 μm. Measurement functions such as length, angle, and area accurate to the micron level.

Product Advantages:

1. Only a USB cable is required to connect for power supply and transmission

2. With 2D/3D measurement function, angle, height, depth, profile, straight line, area, etc

3. The lens can be replaced with 5X/10x/20x/50x (optional) with a maximum optical magnification of 1500x

4. It can automatically capture multiple images with the upper and lower limits of 10μm~100μm, and synthesize high-definition images after depth of field fusion

5. 2D to 3D stereoscopic imaging

6. The body is integrated, lightweight and portable, and supports data result analysis and PDF export

7. The coaxial and stereotype light illumination are integrated, which can quickly see the microscopic image of the measured object

8. Multi-depth blending:The scan is obtained by adjusting the autofocus buttoninterval "Upper Limit", "Lower Limit", and thenClick "Auto Capture" to complete the imageDepth of field blending. No other superfluous operations are required.

Application

Gravure plate making, ceramic anilox, printing roller making, electronic engraving, laser engraving, chemical etching.

Software Features

Pictures and measurement data can be saved to quickly generate PDF inspection and analysis reports.The anti-shake design reduces the measurement instability caused by the environmental vibration of the factory.The calculus volume measurement algorithm ensures that the repeated measurement accuracy error is controlled within 5%.

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
