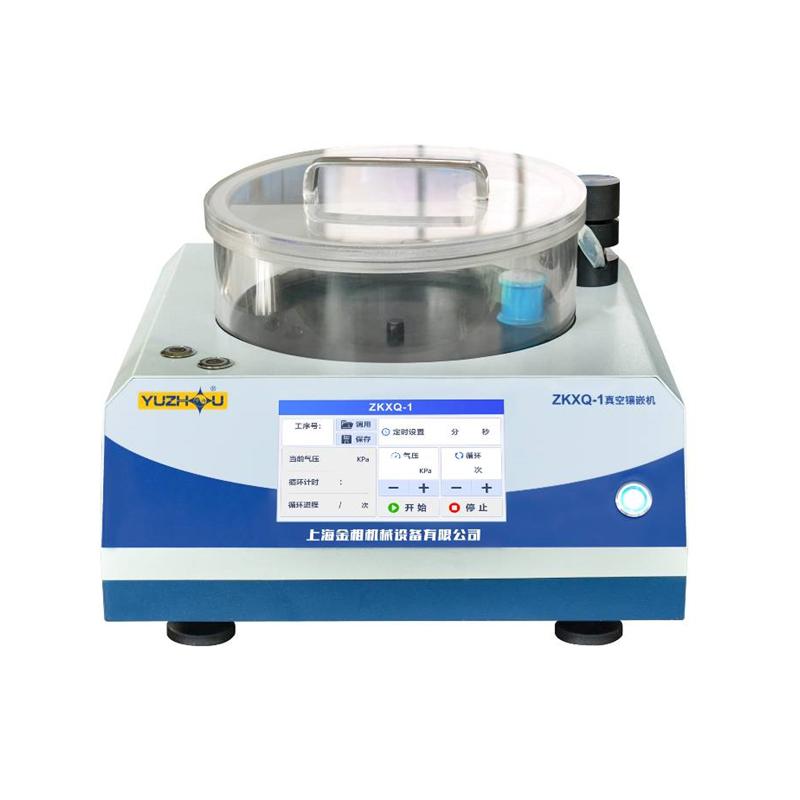

YUZHOU ZKXQ-1 Automatic Vacuum Inlay Machine
Suitable for vacuum cold mosaic of irregular and tiny samples. Built-in low-noise Vacuum Pump for fast and efficient vacuuming, fully transparent super-large vacuum chamber can place 12 samples at the same time, program control supports vacuum degree, cycle number and time settings, and automatically completes the entire mosaic process.
YuZhou
ZKXQ-1
-
Jingyi JY-40B double barrel paint mixer, double barrel inks paint vertical mixer
$ 1128.00 -
YOUKE YK-3658 Digital Display Suspension Simple Combined Impact Tester
$ 1439.00 -
RONGHUA SYZ-A Horizontal quartz sub-boiling high purity water distillation device
$ 416.00 -
CHINA BLD-YB36 360 wire swing testing machine, power cord/DC wire bending test
$ 1339.00 -
JINGWEN JWJ01-1S Pulp manual sheet reader, diameter Φ200mm
$ 1408.00
Inlay is a very important part of the process of metallographic sample preparation, especially for some small samples that are not easy to hold by hand, samples with irregular shapes that need to protect the edges or samples that need to be automatically ground and polished, and the inlay of the sample is an essential process. ZKXQ-1 vacuum inlay machine has compact design, large capacity, simple and fast operation, and high equipment reliability. The built-in Vacuum Pump can be quickly and effectively vacuumed, which is suitable for vacuum cold mounting of epoxy resin, which can effectively remove air bubbles in the sample and resin, so that the resin can penetrate into the pores and cracks of the sample, obtain a sample without bubbles and pores, and improve the final mounting effect of the sample. Ideal for porous materials, such as the preparation of specimens for failure analysis of cracks, porous castings and composites, electronic components, rock minerals, ceramics, etc.
Features
Built-in low-noise Vacuum Pump, fast pumping speed and high vacuum degree
Fully transparent extra-large vacuum chamber for up to 12 samples (40 mm diameter)
Electric rotary table, manual knob pouring, convenient and fast
Program control, you can set the vacuum degree, the number of cycles and the corresponding time, and automatically complete the whole mosaic process such as multi-sample, multiple vacuuming, vacuum maintenance, and gas release cycle
According to different materials and samples, 80 sets of process parameters can be saved and recalled
YuZhou ZKXQ-1 Automatic vacuum inlay machineSpecifications
| LIST | VALUE |
|---|---|
| vacuum | 0~-80kPa |
| Vacuum Flow rate | 10~20L/min |
| noise | ≤55dB |
| Vacuum chamber size | φ 250mm × 85mm can place 12 φ 40mm samples at the same time |
| work panel control | Button jog, clockwise and Counterclockwise |
| operation | 7-Inch touchscreen, manual knob pouring |
| Timed loop | 0~99Min, automatic air extraction/deflation, automatic cycle |
| Maximum number of cycles | 99 times |
| program save | 80 groups |
| Input power | Single Phase 220V, 50Hz, 10A |
| Dimension | 462×400×310mm |
| Net Weight | 24kg |
YuZhou ZKXQ-1 Automatic vacuum inlay machine Packing list
host * 1, enlarged backing plate * 1, cold inlay hard mold * 5, epoxy king cold inlay set * 1 set, disposable pouring tube * 5, disposable paper cup * 5, stirringrod * 5, oil paper * 5, product manual * 1, certificate * 1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
