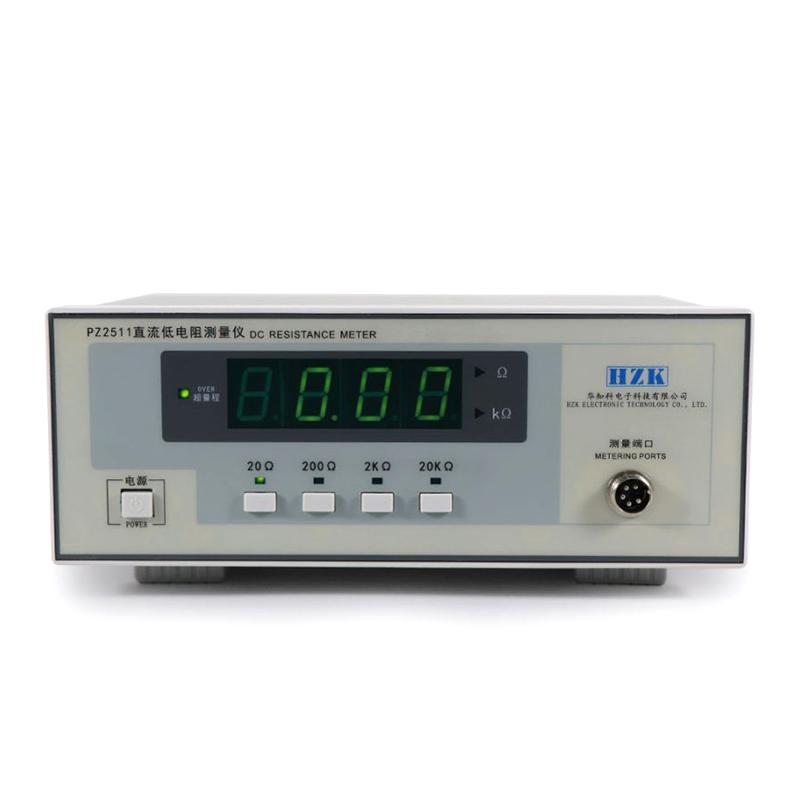

Wasites PZ2511 DC low resistance Measurement Instrument

PZ2511 Tester uses LED large digital display to display the measured value, eye-catching and clear. pickThe four-terminal resistance measurement method is used to eliminate the influence of wire resistance, and the test accuracy is high. adoptTouch the button to control the relay to switch the range, which effectively solves the mechanical transfer switch for a long timewith the phenomenon of poor contact. The instrument has perfect functions, superior performance and simple operationFeatures It can meet the high-speed measurement of the production site, as well as the laboratory and R&D measurementDemand.

Digital desktop small current resistance Tester series products, suitable for detecting the current hasVarious types of DC resistors with certain limitations, such as platinum thermal resistance, copper thermal resistance, and PTC ceramic thermalResistors, thermistors, and various resistive alloy wires, motor coils, and relays are in contact with electricityresistance, heating wire, transformer, inductance coil copper resistance, switch contact resistance, connector contactResistance, wire resistance, component solder joint contact resistance, printed board line and solder hole resistance, goldIt belongs to flaw detection, etc. Widely used in production lines,

According to the actual needs of the user, a variety of measurement functions can be customized to meet higher applications.

Performance characteristics:

• It is displayed in a 31/2-digit digital tube.

• Range: 20Q/200Q/2KQ/20kS

• Resolution: 0.010/0.10/0.001KQ/0.01KQ

• High measurement accuracy, stable performance, strong anti-interference ability

• High test speed, 6 times/second

• The Kelvin four-terminal measurement method is adopted

• Precision reference resistors are included to ensure accuracy and long-term stability through calibration

• < 100mA small current measurement, effectively prevent the influence of temperature drift on the measurement accuracy

host * 1 unit, certificate * 1 copy, instruction manual * 1 copy, test wire * 1 pair, power cord * 1 piece

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
