Wasites PZ2512 smart DC low resistance Measurement Instrument, high-speed sorting, can be connected to PLC upper and lower limit alarm

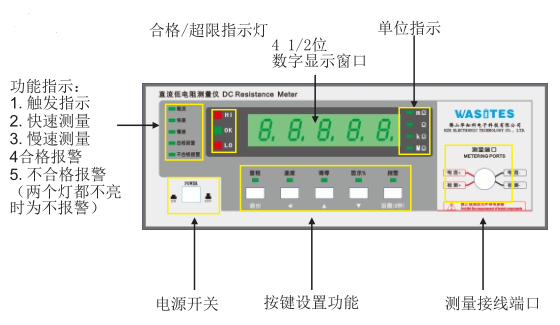

PZ2512 Tester uses 41/2-digit LED large digital display to display the measured value, eye-catching, clearClear. The four-terminal resistance measurement method is used to eliminate the influence of wire resistance and test accuracyHigh. The measurement speed is fast, stable and reliable. The instrument has perfect fast sorting function and performanceSuperior and simple operation, it can meet the high-speed measurement of the production site, and can also meet the actual requirementsLaboratory and R&D measurement needs.

Digital desktop small current resistance Tester series products, suitable for detecting the current hasVarious types of DC resistors with certain limitations, such as platinum thermal resistance, copper thermal resistance, and PTC ceramic thermalResistors, thermistors, and various resistive alloy wires, motor coils, and relays are in contact with electricityresistance, heating wire, transformer, inductance coil copper resistance, switch contact resistance, connector contactResistance, wire resistance, component solder joint contact resistance, printed board line and solder hole resistance, goldIt belongs to flaw detection, etc. It is widely used in production lines.

According to the actual needs of the user, a variety of measurement functions can be customized to meet higher applications.

peculiarity

• It is displayed in a 41/2-digit digital tube.

• Range: 200mΩ/2Ω/20Ω/200Ω/2kΩ/20kΩ

• Resolution: 10 μΩ/100 μΩ/1mΩ/10mΩ/100mΩ/1Ω

• Accuracy: 0.1% reading + 2 words

• The measurement accuracy is high and the performance is stable

• Strong anti-interference ability.

• Test speed: 32 times/sec fast, 12 times/sec slow

• The Kelvin four-wire detection method is adopted

• Manual and autoranging switching

• Sorting function, you can set no alarm, pass or fail alarm

• The alarm value can be set arbitrarily, and the reference value can be entered for sorting as a percentage

host * 1 unit, certificate * 1 copy, instruction manual * 1 copy, test wire * 1 pair, power cord * 1 piece

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
