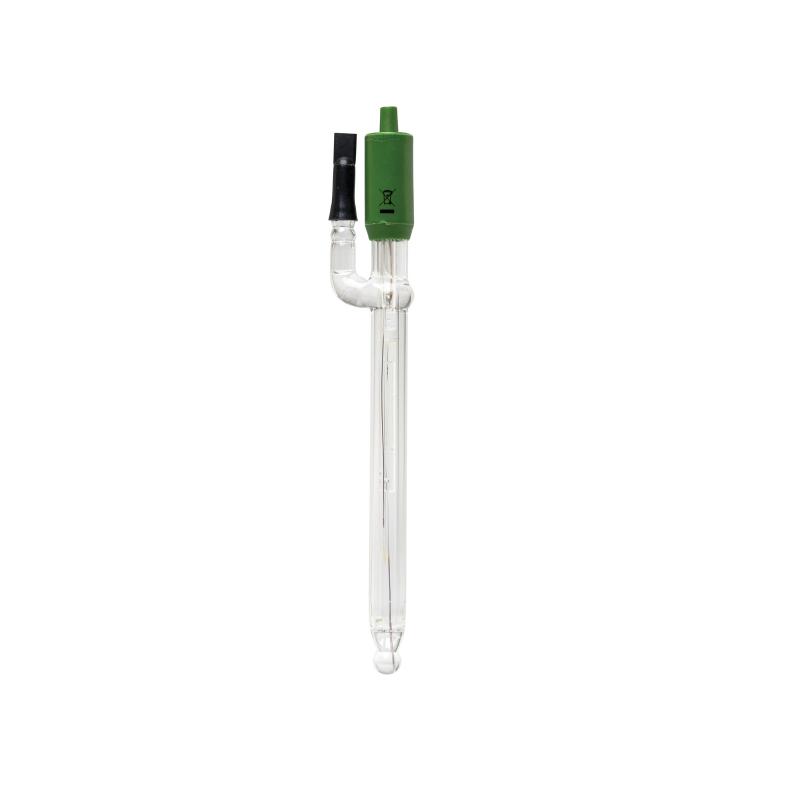

HANNA HI1135B PH electrode Refillable pH electrode with side arm structure and BNC connector

HANNA pH electrodes are suitable for different application environments and measurement needs. The electrodes are mainly made of glass, with a measuring range from 0 to 14 pH and a temperature range from 0 °C to 100 °C. Depending on the application requirements, the electrodes are designed with single or double dialysis wells to improve the accuracy and stability of the measurement. The electrode is filled with KCl 3.5M or Viscolene solution, which is resistant to pressure and is suitable for applications ranging from standard laboratory use to high-temperature and high-pressure environments. The electrode models in the table include immersion type, flat type, and high temperature and high pressure type, which are suitable for fields such as textile dyeing and finishing, strong acid and alkali solutions, high temperature, high pressure, nuclear waste pipeline detection, etc.

Refillable pH electrode with sidearm construction and BNC connector

HI1135B is a vitreous, refillable, double-junction pH electrode with BNC connectors. The electrode has a double ceramic junction at the outer junction and the pH sensing part is made of high-temperature glass. HI1135B also features a glass sidearm construction that allows for faster flow rates. This design consideration is ideal for applications that require continuous pH monitoring.

• Refillable electrodes

• Double knot design

• Sidearm structure

Hanna Instruments offers a wide range of pH electrodes designed for many different applications. The type of glass used to sense pH, the shape of the bulb, the body material, the type of connection, the type of reference, and the electrolyte used are just some of the design considerations.

The HI1135B features high-temperature (HT) glass, spherical bulbs, glass bodies, dual ceramic frits, double knots, and can be refilled with a 3.5MKCl sidearm construction.

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
