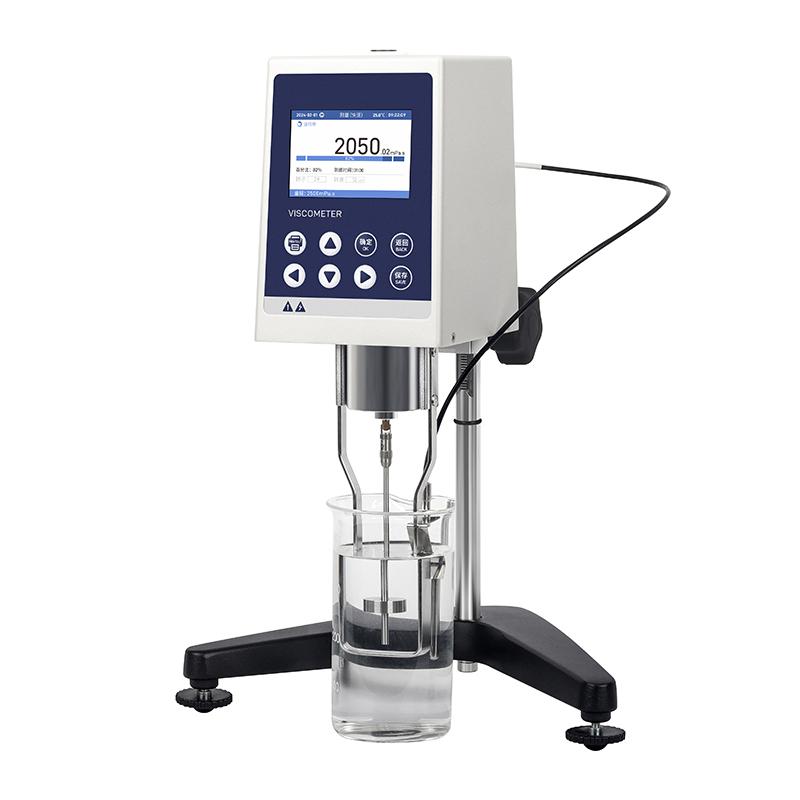

HUINUO NDJ-9S Rotational Viscometer 100000mPa.s standard temperature probe
Digital display, standard temperature probe, Measurement range 1~ 100000mPa.s, Rotor speed 6/12/30/60rpm, reproducibility +/- 1%, Measurement accuracy +/- 2%.
HuiNuo
NDJ-9S
NDJ-8S
-
NIRUN NTV-CAP1LV cone-plate viscometer Low shear rate, rotor required separately
$ 8591.00 -
Pingxuan HATV-2H Brinell Viscometer High Temperature Viscometer 16 million mpas
$ 2169.00 -
NIRUN 1000 series, standard solution (not sold separately)
$ 192.00 -
Pingxuan DV-79 digital display Rotational Viscometer solder paste Viscometer
$ 748.00 -
NIRUN HADV-2 + Pro Digital Viscometer Viscosity Range 40-80 million mPa · s
$ 3526.00
Features
NDJ-5A/5S/8S/9S Digital Rotational Viscometer is an upgraded product of Digital Rotational Viscometer.
The instrument adopts reliable mechanical design technology, manufacturing process and microcomputer control technology, and the data acquisition is stable.
The display adopts a high-resolution 3.5-inch IPS display, the data display is intuitive, and the color screen can be directly displayed and stickydegrees, speed, temperature, percentage torque, rotor number, and the maximum number of the selected rotor number that can be measured at the current speedHigh viscosity.
The instrument has high measurement sensitivity and reliable test results, and is used to measure the absolute viscosity of Newtonian liquidsPrecision instruments for the apparent relative viscosity of non-Newtonian liquids.
Application
It is widely used in grease, paint, plastic, medicine, food, coating, glue, adhesive, resin, chemical raw materialsViscosity measurement of various fluids such as materials.
Serial models
| Model | Measuring range | rotor | rotate speed | Temperature probes | Measurement mode |
| NDJ-5S | 1-100000mPa.s | No. 1.2.3.4 | 6/12/30/60rpm | / | 1 kind |
| NDJ-8S | 1-2000000mPa.s | No. 1.2.3.4 | 0.3/0.6/1.5/3/6/12/30/60rpm | / | 1 kind |
| NDJ-9S | 1-100000mPa.s | No. 1.2.3.4 | 6/12/30/60rpm | Includes PT1000A with probe holder | 1 kind |
HuiNuo NDJ-9S Rotational ViscometerSpecifications
| LIST | VALUE |
|---|---|
| Display mode | digital display |
| Measurement range | 1~100000mPa.s |
| Rotor specification | Standard 1/2/3/No. 4 (No. 0 rotation is optional, low viscosity samples can be measured) |
| Rotor speed | 6/12/30/60rpm |
| reproducibility | +/- 1% (Liquid) |
| Measurement Accuracy | +/- 2% (Liquid) |
| Display resolution | 0.01mPa.s |
| System function | General measurement, Linear dispersion measurement, recording, viscosity conversion, printing |
| Interface | USB、RS232 |
| Measurement record | 50 articles |
| Temperature probe | Standard |
| Operating language | Switch between Chinese and English (optional English) |
| Environment Operating temperature | 0℃~40℃ |
| Environment Relative Humidity | 20% to 80% in an air environment without condensation |
| Power input | 100~240v，50~60HZ |
| Lifting range | 250mm |
| Dimension | 280×260×395mm |
| Net Weight | About 5kg |
HuiNuo NDJ-9S Rotational Viscometer Packing list
Machine × 1, 1/2/3/4 #rotor, power cord × 1, wrench × 1, temperature probe × 1, manual, certificate
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
