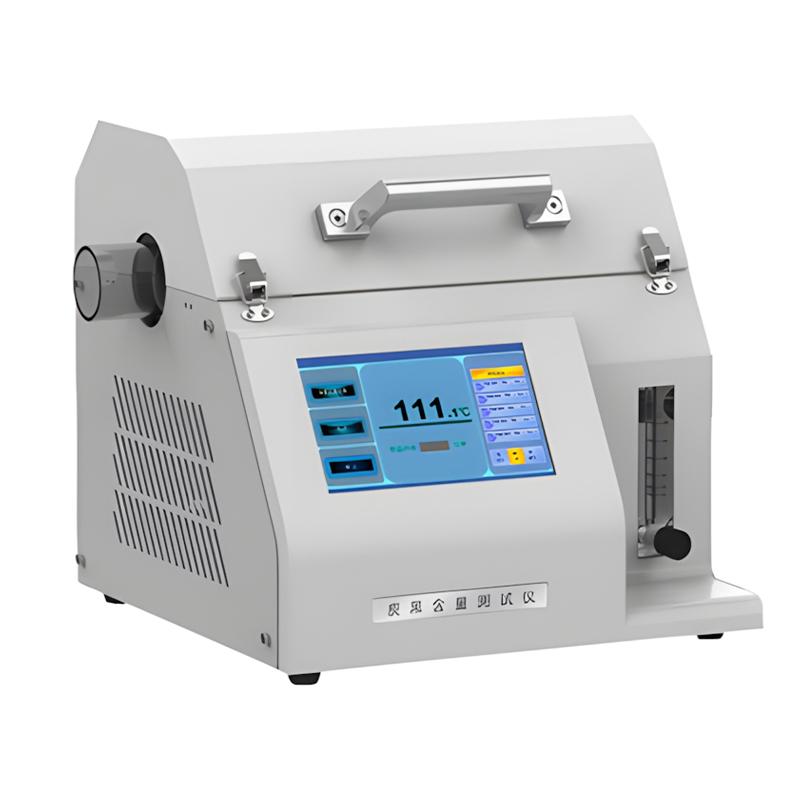

Dingsheng HC3500 carbon black content Tester Determination of carbon black content in polyethylene (PE) polypropylene (PP) polybutene
RT +~ 1000 ℃, 7 inch wide touch screen, furnace size φ 45mm * 350mm, can set multi-component heating program, test 4 groups of samples at a time, can automatically calculate carbon black content, ash content.
DINGSHENG
HC3500
HC-3500
-
YUZHOU ZDD-1 Automatic Dropper
Login -
QIWEI WS70-1 Infrared Drying Oven rapid drying equipment
$ 153.00 -
DUBAN DB10-4222 Handheld Acoustic calibrator Class 2
$ 232.00 -
YUZHOU PG-1 metallographic sample polishing machine, large throwing plate, low noise
$ 265.00 -
YUZHOU XQ-1 Metallographic Specimen Inlay Machine Mold Cover Specifications: < unk > 40mm
Login
The carbon black content Tester is suitable for the determination of carbon black content in polyethylene, polypropylene and polybutylene plastics. The test of carbon black is obtained by gravimetric analysis of the specimen after pyrolysis under nitrogen protection. The instrument has the advantages of easy use, simple operation, accurate measurement, high precision and high degree of automation.
Instrument Usage
Carbon black content is an important technical index in product performance, and the amount of content has a certain impact on the hardness, elasticity, wear resistance and insulation of the material.
Features
The open-lid furnace structure makes it easy to place samples and dissipate heat better.
The furnace adopts an extra-long heating unit, which can test 4 groups of samples at the same time, which greatly improves the testing efficiency.
The software comes with a calculation function, which can automatically calculate the carbon black content and ash content with one click, which is very convenient and fast.
PID is used for precise temperature control, with high temperature control accuracy, wide temperature range and high furnace temperature uniformity.
7-inch LCD touch screen display, can be operated and started with one button, set constant temperature time, high constant temperature accuracy;
Intelligent programmable control, multi-component segmented heating program can be set.
Reference standards
GB/T2951.41-2008
GB/T3515-2005
GB/T13021-1991
GBT 13663.2-2018 Polyethylene (PE) piping system for water supply Part 2: Pipes
YDT 837.3-1996 "Test method for copper core polyolefin insulated aluminum-plastic composite sheath city communication cable Part 3 Test method for mechanical and physical properties"
ISO 6964，GB/T 13021，IEC 60811-4-1，GB/T 2951.41，JTG E50 T1165等。
DINGSHENG HC3500 Carbon black content TesterSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | Room temperature~ 1000 ℃ |
| Display mode | 7 inch wide touch screen |
| Quartz tube size | Ф45mm*600mm |
| Furnace size | Φ45mm*350mm |
| heating element | High temperature alloy resistance wire |
| Heating zone length | 260mm |
| Temperature control mode | The multi-component section heating program can be set, and the temperature setting section can be automatically memorized |
| Sensor sensitivity | 0.1℃ |
| Pneumatic control | Two channels, the program can be automatically switched |
| Number of test samples | Test 4 sets of samples at a time |
| cooling method | Open cover type, quick cooling, reduce test chill down time |
| data computing | The software comes with its own calculation function, one-click calculation; it can automatically calculate the carbon black content and ash content |
| Power Supply | AC 220V/50Hz or custom |
| Power | 600W |
| Dimension | 416*325*289mm |
DINGSHENG HC3500 Carbon black content Tester Packing list
Host * 1, heating furnace * 1, combustion boat * 10, power cord * 1, 10A fuse * 5, hook * 1, forceps * 1, rubber tube * 1 each, rubber plug plus glass tube * 2, transparent PU hose * 2, certificate of conformity, warranty card, manual * 1 copy
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
