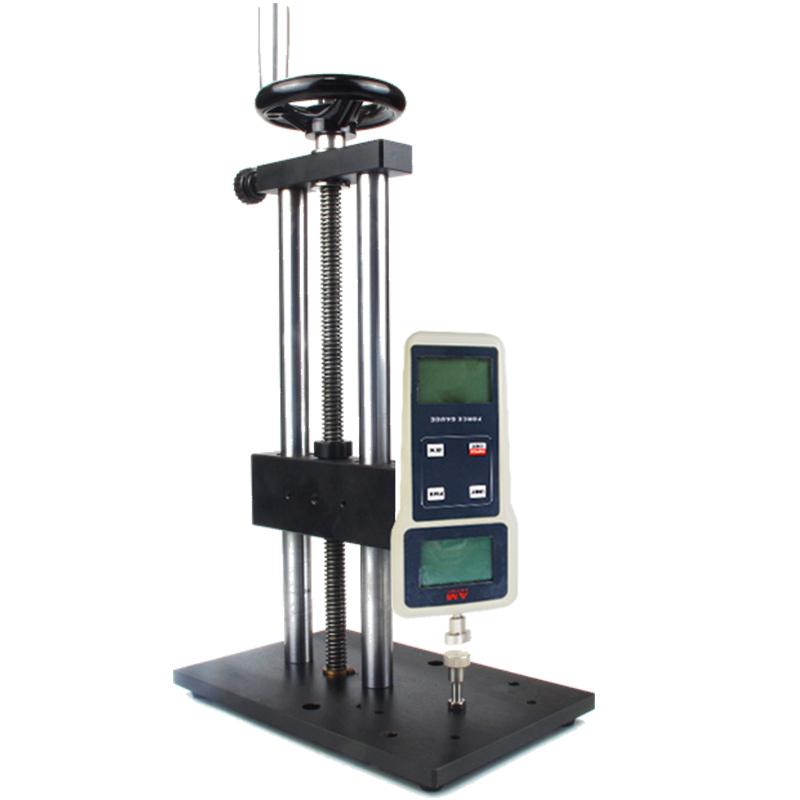

AMITTARI FG-104G Feed pellet grain Hardness Gauge
High accuracy and easy to operate, digital display ignore the difference, support the conversion of N, kg, lb, g four units, with peak hold function.
AMITTARI
FG-104G
-
AOLONGXINGDI HBS-3000V Visual Brinell Hardness Tester 10 test forces
Login -
Digital Pasteur Hardness Gauge AMITTARI HBa-1 used in aluminum processing industry
$ 565.00 -
DUBAN DB13-934-1 + Pasteur hardness Measurement range 0~100HBa Additional measurement of Brinell/Vickers/Wechsler/rockwell hardness
$ 826.00 -
AMITTARI AS-120NT Hardness pen surface Hardness Gauge
$ 293.00 -
AMITTARI AW-20A + Webster Hardness Tester sample size 0.6-13 mm
$ 699.00
Explicit grain feed pellet Hardness Tester. It has the advantages of high precision, easy operation and easy carrying. The scientific use test range is 10%~100% of the full scale, and the metrology department recommends not to use the part below 1% of the full scale. At the same time, before starting the test after the instrument and the object to be tested in place, press the ZERO button to clear to eliminate the weight of the fixture, etc.
Features
High precision and high resolution.
Digital display, no parallax.
N (newton), kg (kilogram), lb (pound), g (gram) four units of measurement are available and converted to each other.
Peak hold function. Hold the peak display until it is manually cleared.
Green and environmentally friendly, it can be set to automatically shut down for 10 minutes without operation; It is also possible to shut down by hand.
Can be powered by alkaline batteries; It can also be connected to a 5V DC power supply.
AMITTARI FG-104G Feed grain Hardness GaugeSpecifications
| LIST | VALUE |
|---|---|
| test range | 0-20Kgf,0-196N,0-4426F |
| resolution | 0.01Kgf,0.1N,0.0126F |
| Diameter test range | 15mm |
| Accuracy | +/- 0.5% FS (range) +/- 1 digital peak |
| unit | kgf, gf, N, Lbf |
| A measurable value | Peak, instantaneous value |
| show | Four large LCD, forward and reverse dual display |
| shutdown mode | 10 minutes automatic shutdown or manual shutdown |
| Backlight | Backlight |
| allowable load | 150% F.s (if it exceeds 110% F.s, there will be a beep alarm) |
| Power Supply | 2 AA batteries, or 5V DC Power Supply |
| operating temperature | 0°C~40°C |
| operating humidity | <80% |
| Operating Environment | No source and corrosive medium around |
| Net Weight | 390g |
| size | 211mm*80mm*36mm |
AMITTARI FG-104G Feed grain Hardness Gauge Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
