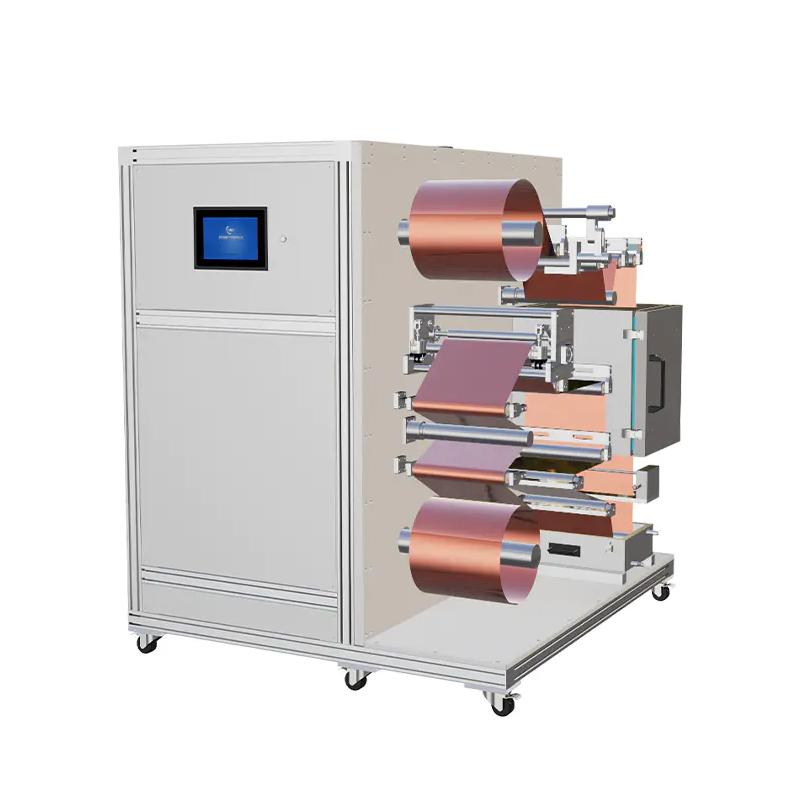

Chengyue CY-CMR-300-S Lithium battery double-sided dip coating experimental coater Spreader
Double-sided continuous dip coating, with infrared Drying Oven, peristaltic pump automatic feeding, with deviation correction, used in lithium-ion batteries, graphene films, Ceramics films, etc.
ChengYue
CY-CMR-300-S
-
Oven coil automatic composite coater with unwinding + scraping + drying + covering + winding function
Login -
Rxg-03/500pro Coil drawdown blade coater Experimental Film Applicator Effective application width Max. 500mm
$ 20280.00 -
Chinese Micro Coil Coating Machine TBJ-JCP-DJ2UV lame plating + scraping with UV curing
$ 28053.00 -
CHINA Automatic immersion coil coater Rjy-01/500dc double roll extrusion
Login -
HuiNuo JTM - 0.5/300 UV small continuous coater with heating UV curing Maximum Spreader width 300mm
$ 9709.00
Introduction
The double-sided dip coating experimental coater is a coating machine with an immersion coating process, and the coating can be measured with an optional wire rod. It can be rewinded and unloaded with low tension, equipped with infrared heating Drying Oven and process correction device, and optional static eliminator and impregnation box type. The equipment has simple structure, convenient operation, high production efficiency and wide range of application, and can be used in lithium-ion batteries, graphene films, ceramic films, tapes and various functional film industries.
Features
Double-sided continuous dipping.
Wire rod metering to control coating thickness and uniformity.
Infrared Drying Oven with adjustable temperature and air volume.
Stable transport for low-tension transport.
Active flattening roller guide with adjustable speed.
The peristaltic pump is automatically fed.
Equipped with deviation correction function, high transport accuracy。
ChengYue CY-CMR-300-S Lithium battery double-sided dip coating experimental coaterSpecifications
| LIST | VALUE |
|---|---|
| Coating method | Impregnated Spreader |
| rewinding diameter | Max：300mm |
| Width of guide roller | 300mm |
| Mechanical speed | Max：1m/min |
| Spreader Accuracy | +/- 3 μm (cathode paste, viscosity 1000CP, Solid content 35.5%, bar size 80 μm). |
| Spreader Film thickness | WFT 6-200μm (reference value, bar Spreader), depending on slurry parameters and bar type. Film thickness of cover foil can be adjusted between 0.1 m - 1mm |
| Infrared drying oven heating method | Carbon fiber infrared lamp heating |
| Infrared drying oven air Volume | Max: 402m ³/h, air valve adjustment |
| Infrared drying oven temperature | Max：150℃ |
| Infrared drying oven power | 2KW |
| Infrared drying oven length | 500mm |
| Correction Accuracy | ±0.5mm |
| Impregnation box comes standard | Spreader * Small Capacity Min: 0.3L |
| Impregnation box optional one | Spreader * Small Capacity Min: 0.7L, reserved chilled down water interface |
| Impregnation box optional two | Spreader * Small Capacity Min: 2.7L, reserved chilled down water interface |
| Device size | L980mm*W750mm*H1420mm |
ChengYue CY-CMR-300-S Lithium battery double-sided dip coating experimental coater Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
