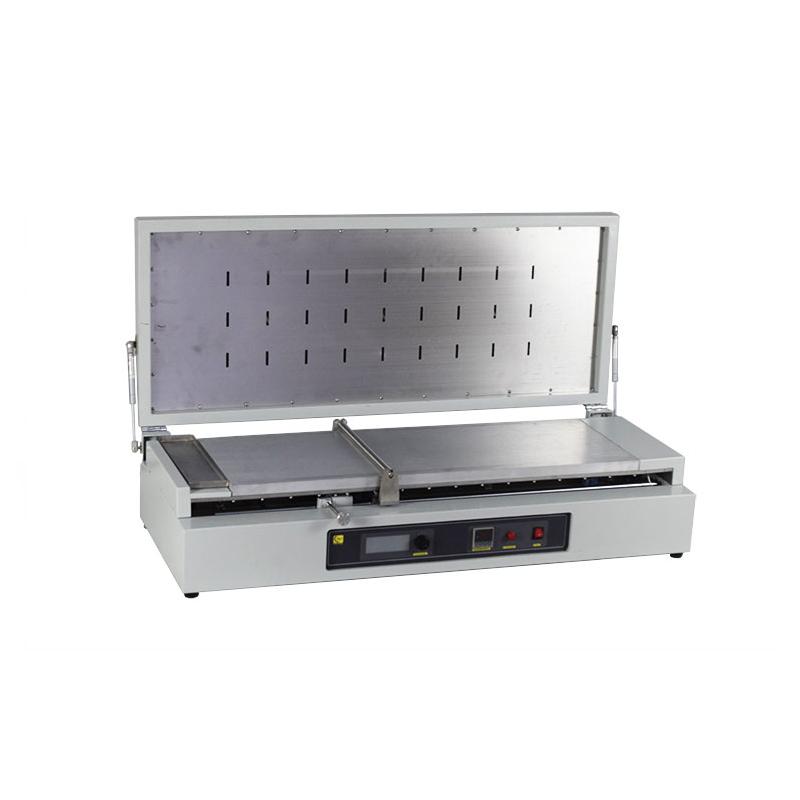

Chengyue CY-CMF-940 × 310B-S Small Automatic Drying and Coating Machine

Introduction

The small automatic drying coating machine is mainly used for laboratory coating of liquid or colloidal films, and the equipment adopts a stepless variable speed motor to control the coating speed to achieve the purpose of advancing the scraper for coating at an even speed, and the scraper is made of stainless steel, which has a constant weight, which can improve the consistency and uniformity of the coating film. The equipment adopts the bottom vacuum to adsorb the sample, and has the bottom heating function, the heating temperature can reach up to 120 °C, and the function of baking the film is realized at the same time during the coating process, so that the film can be dried quickly. The equipment is equipped with a scraper limiter, which can adjust the length of the coated film arbitrarily, and the scraper will automatically reset when it reaches the limit. The upper cover has the effect of dustproof and heat preservation, and at the same time makes the equipment more beautiful.

Main features of small automatic drying coating machine

1This equipment adopts continuously variable speed motor to accurately control the coating speed.

2The crossbar is used to push the adjustable scraper, and there are no special requirements for the external dimensions of the adjustable scraper.

3The scrap collection box, which is placed on the left edge of the vacuum plate, collects excess paint to ensure the cleanliness of the machine itself and the surrounding area.

4The drying system with intelligent vacuum heating suction plate at the bottom and digital display temperature control can adapt to the development of science and technology for film formation under high temperature conditions。

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
