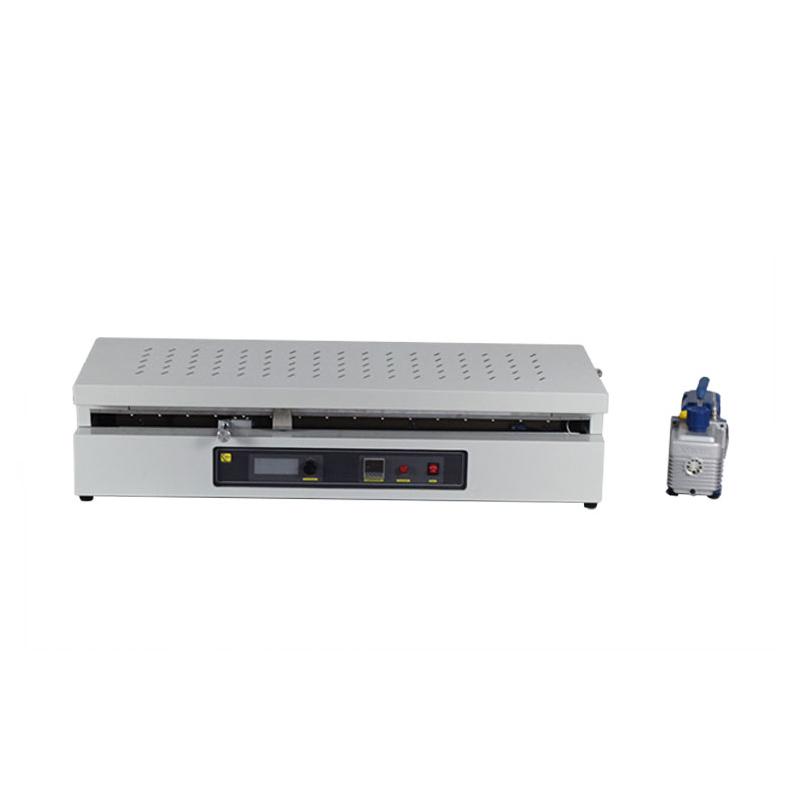

Chengyue CY-CMF-1100 × 350B-S large vacuum heating Coater
Designed for coating various electrodes of cylindrical batteries, Spreader width 300mm, Spreader length 1000mm, with a heated vacuum chuck, the temperature can be up to 100 ° C.
ChengYue
CY-CMF-1100×350B-S
-
China Intelligent Program Control Film Applicator TBJ-X2-DJ8 drawdown Bar & blade Vacuum chuck Coater
$ 5710.00 -
CHINA TBJ-X3-DJ31 Multifunctional Automatic Film Applicator Automatic Feeding, with Double Barrel 300 * 400mm
$ 21999.00 -
HuiNuo TM3000Pro/18D Automatic Film Applicator drawdown Bar & blade Coater (floor model) ECA 100 * 30cm servo motor
$ 6806.00 -
HUINUO TM3100 Wire Rod & Drawdown Blade Automatic Film Applicator with Heated Bed
$ 3047.00 -
HuiNuo TM3300Pro/30D Floor drawdown Bar & Blade Vacuum chuck Coater 100 * 90cm
Login
Introduction
The large vacuum heated type coater is a 300mm wide and 1000mm long belt casting coater with heated vacuum suction cups, the temperature can be up to 100°C, and the adjustable micron level coater. The large vacuum-heated coater is designed for the production of long and thick films and has a unique drive system that produces smooth coatings on a wide range of materials.
The large vacuum-heated coater is designed for coating a wide range of electrodes in cylindrical batteries, such as the 21700 format.
ChengYue CY-CMF-1100×350B-S Large vacuum heating coaterSpecifications
| LIST | VALUE |
|---|---|
| stroke length | Adjustable 10-1000mm with adjustable position switch |
| platform material | Aluminum alloy flat vacuum suction cup |
| protective cover | 1. The coater includes a transparent acrylic protective cover. 2. The flue gas Exhaust Port is assembled with the lid in the upper left corner. 3. Port size: outer diameter 80mm, inner diameter 68mm, height 60mm. |
| film applicator | Built-in pushrod with Micrometer adjustable applicator. 300mm wide film applicator with Micrometer adjustable head including coatings up to 1000mm (L) x 300mm (W) |
| Max. coating area | 1000mm(L)×300mm(W) |
| Device size | 1340Mm (L) × 580mm (W) × 920mm (H) (Max height) |
| Heating method | Bottom heating vacuum block |
| Heated vacuum bed Max. Working power | 2000W |
| Heating Vacuum Bed Max. Heating Temperature | 100°C |
| Temperature Controller Accuracy | +/-1℃ |
| Vacuum suction cup size | 1100Mm (length) × 350mm (width) × 25mm (height) |
ChengYue CY-CMF-1100×350B-S Large vacuum heating coater Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
