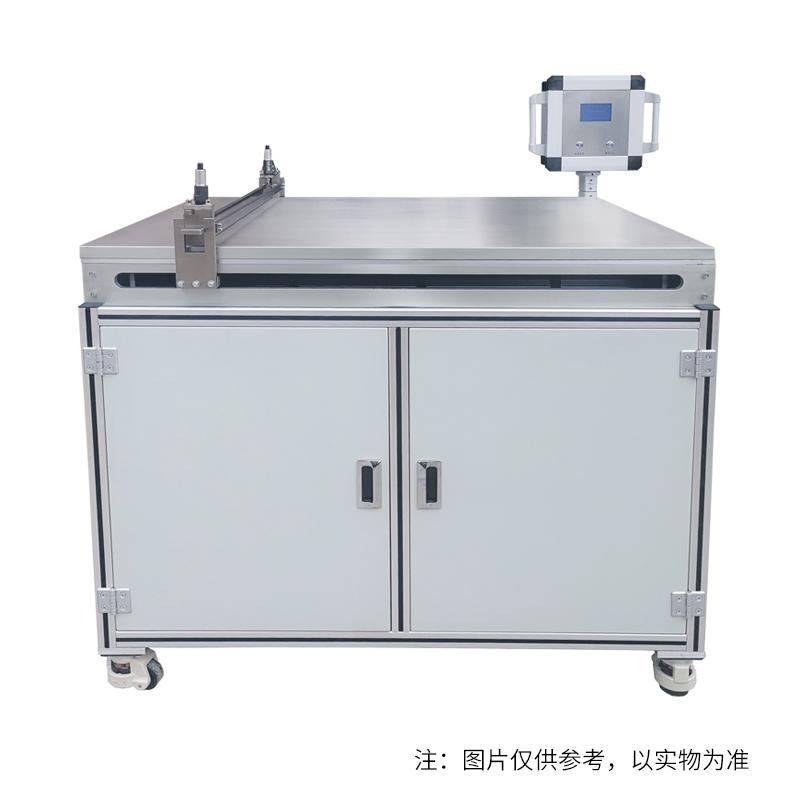

CHINA TBJ-X2-DJ17 Floor type Bar & drawdown blade Vacuum adsorption Automatic Film Applicator Coating size 600 * 1000mm
Customized model, floor-to-ceiling structure, bar + drawdown blade Coating method, with vacuum adsorption function, with automatic feeding function, barrel with stirring function, effective Spreader area 600 * 1000mm.
zy
TBJ-X2-DJ17
-
HuiNuo TM3000/11AFD drawdown Bar & blade coater (automatic feeding floor model) Effective area 120 * 60cm
Login -
China TBJ-X2-DJ7 automatic spraying and coating machine bar + lame plating + heating + Vacuum chuck + automatic feeding
$ 8154.00 -
HuiNuo TM 3300Pro/FLM Automatic Film Applicator bar drawdown blade coater
$ 5978.00 -
CHINA TBJ-X1-DJ9 Automatic drawdown blade vacuum adsorption Film Applicator with feeding system, width 300 * 600mm
$ 6600.00 -
HuiNuo TM3000Pro/17 Automatic Film Applicator bar drawdown blade coater effective coating area 70 * 40cm servo motor
$ 4734.00
TBJ-X2-DJ17 Floor Mounted Wire Rod Scraper Coating Machine is a fully automatic coating machine with vacuum adsorption function, with automatic feeding system, coating width 600*1000mm, floor structure design, using wire rod and doctor blade coating method, suitable for film, release paper, paper, plastic film and other film proofing.
Optional
|
|
|
zy TBJ-X2-DJ17 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Drawdown blade Accuracy | ±0.05mm |
| Drawdown blade thickness range | 0~10Mm drawdown blade can be lifted |
| Coating speed | 5~ 180Mm/s (< 5mm/s can be customized) |
| Coating size | 600*1000mm |
| Appearance structure | Floor type |
| Coating rod specification | Spreader thickness according to bar type |
| Host Power Supply | 220V 50Hz |
| speed control | Infinitely variable speed |
| Coating table material | aluminum alloy |
| Mayer Rod Accuracy | ±0.05mm |
| customizable function | Jet system device, UV solid inclusion device |
| Speed regulation Accuracy | 1mm/s |
| Feeding principle | Air source pressure flows out |
| Feed Sport Mode | Reciprocating linear motion |
| Feeding back and forth traverse speed | 2-150mm/s |
| spit Volume | Adjustable (by adjusting the air pressure and the operating speed of the discharge port) |
| Shaft transmission mode | Timer belt |
| Feeding system air source | 0.6Mpa, can be connected to the trachea of φ 8 (self-equipped) |
| Power Voltage of charging system | 220V,50Hz |
| Tank pressure | Maximum withstand 8Mpa |
| Material of feeding barrel | 304 stainless steel with a wall thickness of 4mm |
| Feeding bucket configuration | Safety valve, pressure regulating valve, pressure gauge, discharge valve |
| Barrel mixing function | magnetic stirring |
| Vacuum Area | 600*1000mm |
| vacuum aperture | Φ1.2mm |
| Vacuum hole spacing | 20*20mm |
| Vacuum pump size | 380*180*280mm |
zy TBJ-X2-DJ17 Automatic Film Applicator Packing list
Film Applicator X1, casting knife X1, imported bar X1, automatic inking system x1, vacuum pump x1, product manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
