JINGKELIAN QSM-II Grinding Coating Particle Fineness Below 25 microns

Overview of the QSM-II sand mill

JinKeLian QSM-II sand mill is a grinding machine used in the laboratory for sample testing, which can achieve a grinding paint particle fineness of less than 25 microns.QSM-II sand mill is a working method that uses a motor to drive the stirring parts for dispersed grinding.The QSM-II sand mill is widely used in the paint and paint industry, and can hold a sample capacity of 1.5 liters.

The working principle of the QSM-II sand mill

The motor is used to drive the agitator parts, and rotate at a speed of 1.400 rpm, the sand particles and materials are rapidly rotated and turned in the tank, and the material particles are dispersed and finely ground due to the strong tension and shear and impact between the sand particles and the materials.

QSM-II sand mill structure diagram

The main components of this sand mill are as follows: 1. a base; 2. a grinding jar; 3. a stirrer part; 4. a motor; 5. a motor base; 6. a column; 7. a handle; 8. Handwheel (see figure below for details)

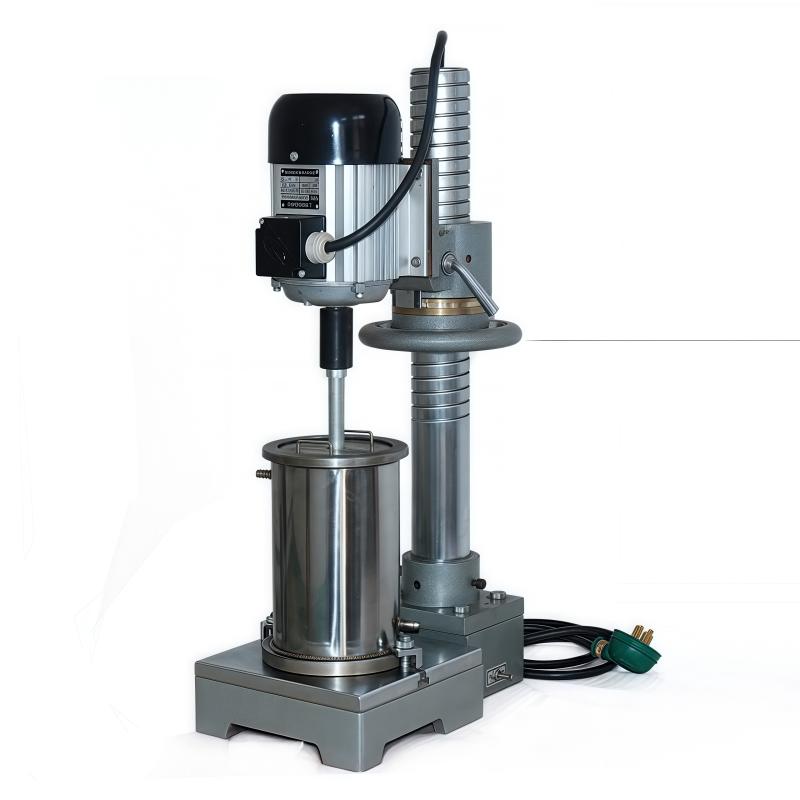

QSM-II sand mill display diagram

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
