SHEEN Ref. 405/4 Zahn Cup Viscosity Range 200-1200cSt Nozzle 4.39mm
The SHEEN Ref. 405/4 Zahn Cup is a stainless steel Zahn Cup with a viscosity range of 200-1200cSt and an outflow diameter of 4.39mm. The Ref. 405/4 Zahn Cup meets the ASTM D 4212 standard.
SHEEN
-
Ander ZAHN Cup, Stainless Steel, Bore 1.93mm
$ 135.00 -
Japan TOYO TOYO 3 #Viscosity Cup Stainless steel Coating paints viscosity measurement cup Zahn Zahn Cup
$ 185.00 -
CSB Zahn Cup YONGLIDA No. 1 Zahn Cup
$ 132.00 -
CHINA TR 1001/5 Zahn Cup No. 5 Portable Viscosity Cup 5.28mm
$ 113.00 -
YONGLIDA QNB-6 ISO flow Viscosity Cup 6mm Aperture Measurement range 188~ 684cSt
$ 143.00
Introduction
The Caien Cup, also known as the Zahn Cup, is a portable Viscosity Cup with a long handle, which is suitable for testing the viscosity of liquids such as coatings, inks, paints, etc. in the workshop. SHEEN Ref.405/4 Chae En Cup is a stainless steel Chae En cup imported from the United Kingdom, with a measuring viscosity range of 200-1200cSt and a nozzle diameter of 4.39mm.

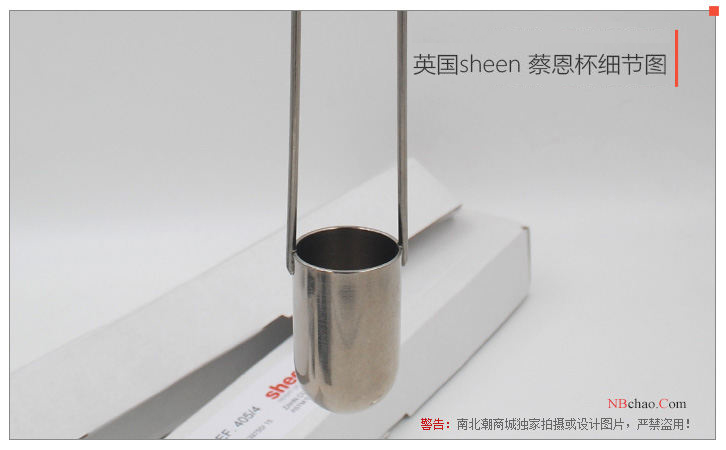

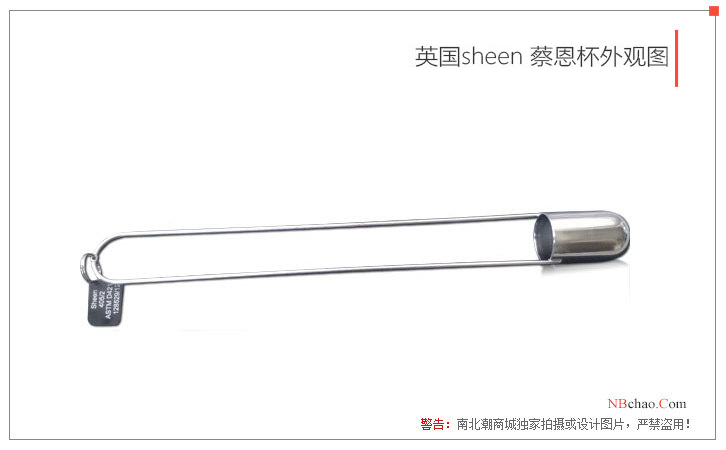

Product display diagram
SHEEN Ref.405/4 Zahn CupSpecifications
| LIST | VALUE |
|---|---|
| Viscosity range | 200~1200cSt |
| outflow time | 20~80s |
| flow hole diameter | 4.39mm |
| Cup body material | stainless steel |
| Filter material | stainless steel |
| Handle material | stainless steel |
| Applicable standards | ASTM D4212 |

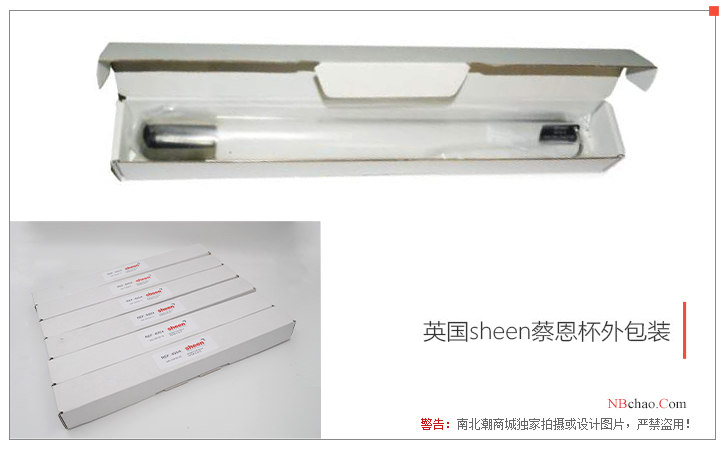

SHEEN Ref.405/4 Zahn Cup Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
