HuiNuo SZQ-160 100/150/200/250μm 4-sided Applicator

+/- 2μm accuracy, high Hardness 9Cr18Mo stainless steel material, effective application width 160mm.

Brand

SKU: NB048628

HuiNuo

Model

SZQ-160 100/150/200/250μm

Price

$ 265.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

HuiNuo shop

Information

Datasheet RFQ Contract Video

What else did others buy

Genuinegoods

HuiNuo SZQ-160 100/150/200/250μm 4-sided ApplicatorOverview
Specifications
Comments
FAQs

SZQ-160 100/150/200/250μm

4-sided Applicator

+/- 2μm accuracy, high Hardness 9Cr18Mo stainless steel material, effective application width 160mm.

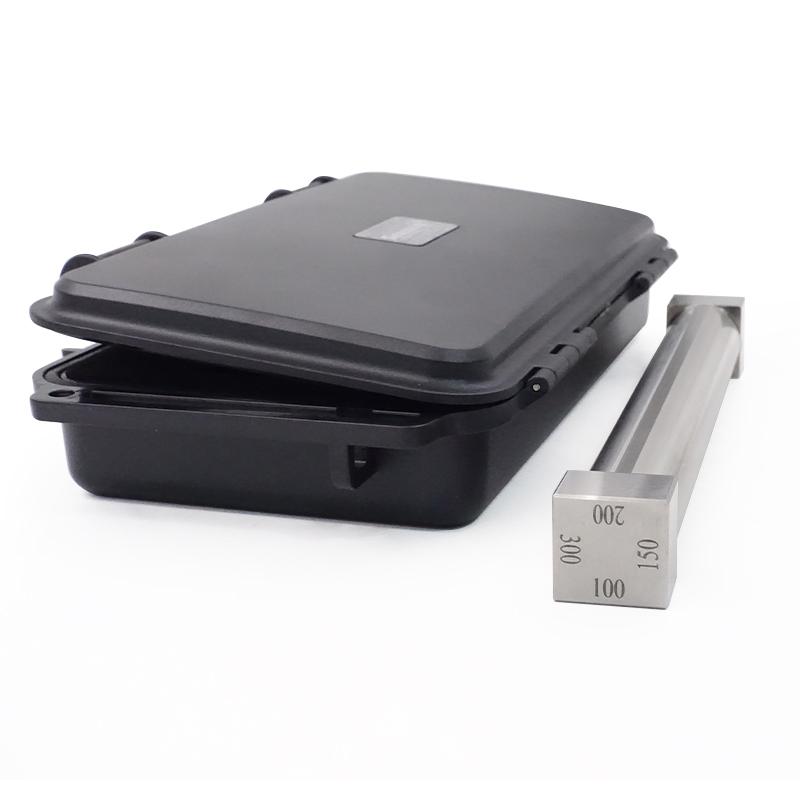

Fig. 1 100 150 200 250μm Four-sided Preparator

Fig. 2 of the 100 150 200 250μm four-sided preparer

Huinuo 100 150 200 250μm four-sided preparer details Figure 3

Fig. 4 of the 100 150 200 250μm four-sided preparer

Introduction

The four-sided Film Applicator is an experimental Film Applicator with an accuracy of ±2 microns, with two coating widths of 80 and 160mm, and is made of high-carbon chromium wear-resistant stainless steel, which has good corrosion resistance. The wet film preparer will be tested for accuracy before leaving the factory, using imported three-coordinate testing, and accompanied by a factory test data report, which can stand up to measurement. SZQ four-sided Film Applicator is suitable for sample film proofing in resins, coatings, glues, new materials, polymer materials, and other fields. Support non-standard customization. It can also be equipped with a laboratory automatic coating machine for automatic coating.

SZQ-160 100/200/300/400μm is an extended four-sided preparer with a coating thickness of 100μm, 200μm, 300μm, 400μm, a coating width of 160mm, and a Total length of 190mm.

Features

1. 9Cr18Mo high hardness stainless steel material, with good wear resistance and corrosion resistance, hardness value of 50~55HRC.

2. The accuracy is up to ±2μm to ensure the accuracy of the experiment

3. The surface is smooth and clean, the styles are diverse, the application range is wide, and customized specifications are supported

4. Adopt imported three-coordinate detection accuracy, with factory test report, which can stand up to measurement

Fig. 5 of the 100 150 200 250μm four-sided preparer

Parameter table of the preparator series

name	Specification mm	Wet film thickness μm
Single-sided preparer	The Total length is 80, and the coating width is 50 and 75	50、75、100、125、150、175、200
Double-sided preparer	The Total length is 100, and the coating width is 80	25、50、75、100、150、175、200、300、400
Frame preparer	The Total length is 90, and the coating width is 80	30、50、60、90、120、150、200
Octaveral preparer	The Total length is 90, and the coating width is 68	50、75、100、125、150、175、200
Octaveral preparer	The Total length is 100, and the coating width is 80	50、75、100、125、150、175、200
Square preparer	25x25, coating width 16	37、50、75、100
Square preparer	50x50, coating width 41	50、100
Standard four-sided preparer	The Total length is 100, and the coating width is 80	All specifications and sizes, support non-standard customization
Extended four-sided preparer	The Total length is 190, and the coating width is 160

HuiNuo SZQ-160 100/150/200/250μm 4-sided ApplicatorSpecifications

LIST	VALUE
type	4-sided
application width	160mm
Accuracy	±2μm
material	9Cr18Mo stainless steel
Total length	190mm

HuiNuo SZQ-160 100/150/200/250μm 4-sided Applicator Packing list

Applicator x1, test report X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

You need to prepare wet-film for Resin samples. The width should be 160mm and the thickness should be about 100-250 microns. What is a suitable film applicator recommended?

[A]

HuiNuo SZQ-160 4-sided Applicator is recommended. It is available in four thicknesses of 100/150/200/250μm, which just covers your needs. Made of high Hardness stainless steel, wear and corrosion resistance, accuracy +/- 2μm can ensure the uniformity of Resin film, suitable for sample preparation for New material development.

[Q]

We often have to do film testing of glue, which requires high thickness accuracy. What specifications should be selected?

[A]

Choose HuiNuo SZQ-160 4-sided Applicator, its accuracy reaches +/- 2 microns, using three-coordinate detection and attached test report. 9Cr18Mo stainless steel has high Hardness, repeated scraping is not easy to abrasion, and can maintain accuracy for a long time. It is suitable for accurate Moulding of glue-like viscous samples.
