CHINA Rgd-01/400TS Double-sided Coil Film Applicator Double roller painting cloth, effective application width 400mm belt correction device
Unwinding → double roller painting film → drying → fitting → deviation correction → winding, double roller painting method, thickness range 0.001~ 2mm, drying tunnel length 1 meter, effective application width 400mm, automatic adjustment with deviation correction device.
Factory
Rgd-01/400TS
-
CHINA NBC-6026D hydrogel coater application width 480mm
Login -
Automatic Film Applicator for large coils unwinding + scraping + drying (8m oven) + heating film laminating + trimming + deviation correction + winding function
$ 28053.00 -
Oven coil composite coating machine Rxfay-01/400 tape unwinding + slot-die/gravure printing + drying + coating + winding function
$ 38935.00 -
Factory direct sales Rvaxb-02/300 micro-concave bar coil coater 300mm wide, precision Spreader drying
$ 28053.00 -
Oven coil composite coater with unwinding + scraping + drying + covering + winding function
$ 15616.00
Structure of double-sided coil coating machine
The machine is composed of a body, a gluing width adjustment device, a discharging rack, a gluing roller group, a thickness adjustment dial gauge, a transmission platform, a traction roller group, and a transmission mechanism.
Introduction to the structure and composition functions
Body:The body of the equipment is all aluminum alloy + stainless steel plate.
Gluing width adjustment device:The width adjustment device consists of food-grade plastic and a movable brace.
Unwinding rack:The machine is equipped with two unloading racks, when the two materials do not deviate from the material pair in the laminating process, the deviation correction device automatically adjusts the material rack to move left and right to achieve the effect of aligning the two materials.
Transmission platform:The transmission platform is made of stainless steel, and its main function is to connect the substrate after gluing to the next process.
Traction roller set:The substrate is pulled by hand between the upper and lower rollers of the traction roller, the handwheel on the frame is tightened to make the traction roller, and the rubber ring of the upper roller is in contact with the lower roller, and the traction roller group is drawn over to the substrate by power transmission to make the coating work complete.

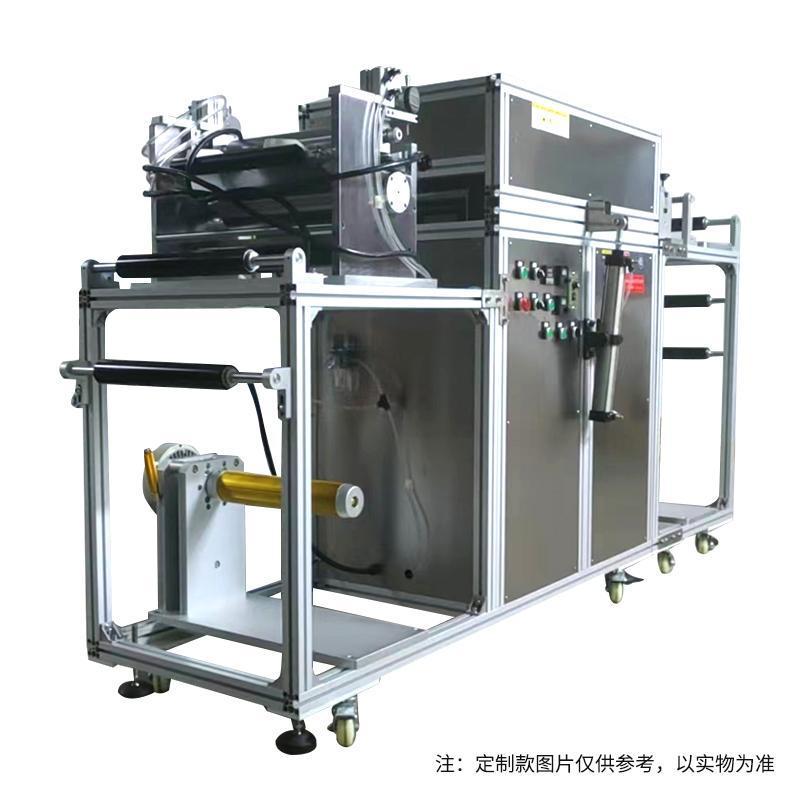

Factory Rgd-01/400TS Double Sided Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Spreader process | Unwinding → double roller painting film → drying → fitting → deviation correction → winding |
| Coating method | Double roller painting film |
| Thickness range | 0.001-2mm |
| Film Accuracy | ±5% |
| Graduation | 0.001mm |
| percentile | digital display |
| Coating speed | 0~20M/min adjustable |
| Unwinding outer diameter | 400mm |
| Effective application width | ≤400mm |
| Roll surface length | 450mm |
| Oven length | 1m |
| Oven Temperature range | RT+~150℃ |
| winding outer diameter | 400mm |
| Effective application width | ≤400mm |
| compound speed | 1~10m/min |
| Composite Accuracy | 0.5mm |
| composite width | 100~400Mm adjustable |
| Outer diameter of winding air expansion shaft | 3 inches. |
| Winding outer diameter range | ≤400mm |
| Dimension | 2280Mm * 680mm * 1600mm (subject to actual customization) |
| Host Power Supply | 380V/2KW |
Factory Rgd-01/400TS Double Sided Film Applicator Packing list
Film Applicator x1, film device x1, drying device x1, rewinding and unwinding device x1, deviation correction device x1, bonding device x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
